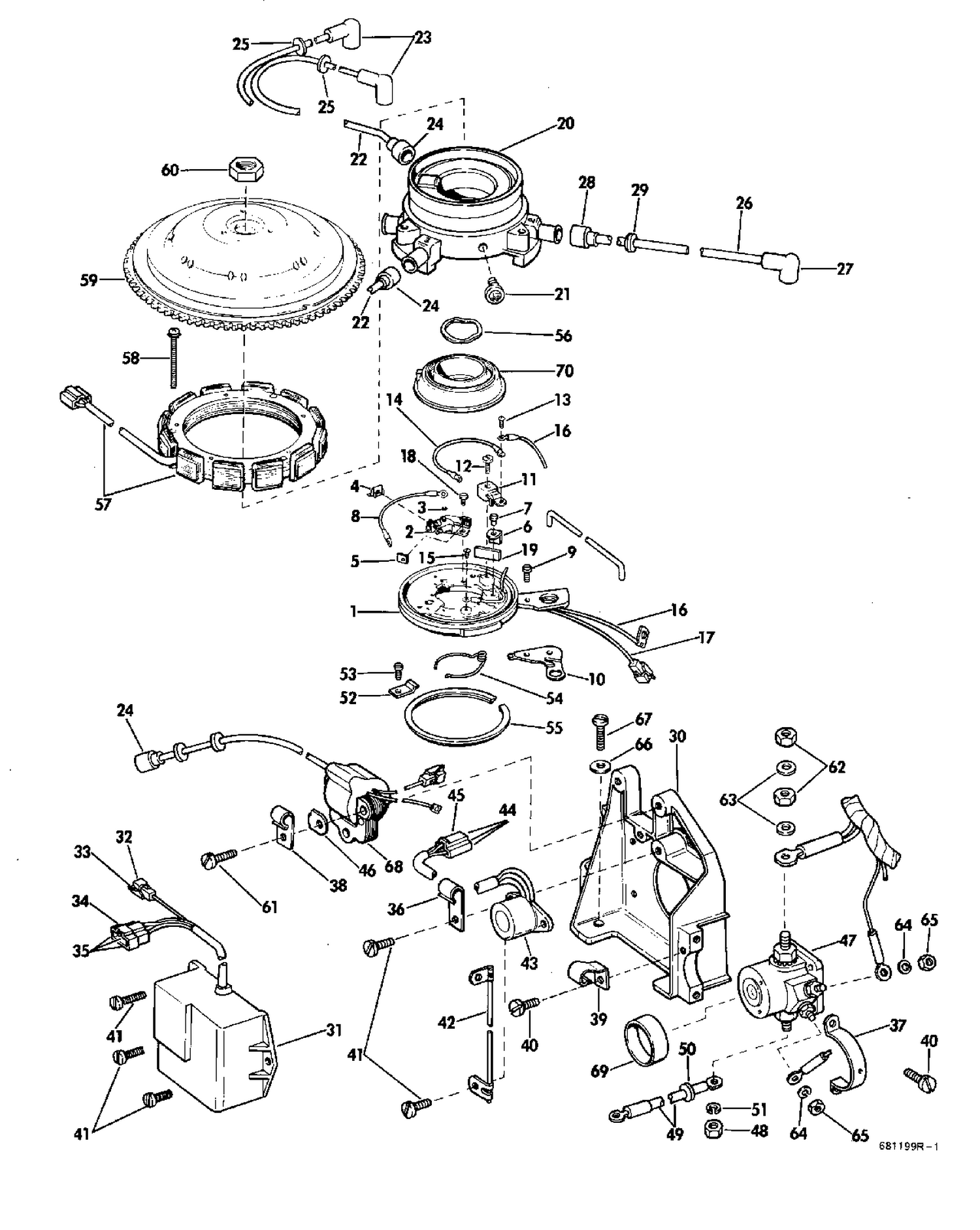

| Ref | Part Number | Description |
|---|
| 1 |
0382752 |
BASE PLATE ASSEMBLY |
| 2 |
0383655 |
BREAKER ASSEMBLY |
| 3 |
0203363 |
RETAINER |
| 4 |
0315062 |
CLIP, Contact retainer |
| 5 |
0315069 |
NUT, Breaker |
| 6 |
0313585 |
CLIP |
| 7 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 8 |
0580692 |
BREAKER LEAD ASSY |
| 9 |
0306158 |
SCREW, Clamp |
| 10 |
0313733 |
CLAMP, Lead |
| 11 |
0382495 |
CONTACT ASSEMBLY |
| 12 |
0307466 |
SCRES, Bowl to body |
| 13 |
0314471 |
SCREW |
| 14 |
0580691 |
LEAD ASSEMBLY |
| 15 |
0314474 |
SCREW |
| 16 |
0580694 |
LEAD ASSEMBLY, Ground |
| 17 |
0580693 |
LEAD ASSEMBLY, Primary |
| 18 |
0312811 |
SCREW BREAKER TO BASE |
| 19 |
0510377 |
OILER WICK |
| 20 |
0382479 |
DIST, Cap assy. |
| 22 |
0382670 |
LEAD ASSEMBLY, Spark plug to dist (#1 & #3) |
| 24 |
0313586 |
CONVER, H. T. lead |
| 25 |
0551426 |
GORMMET |
| 26 |
0382669 |
LEAD ASSEMBLY, Spark plug to dist (#2) |
| 28 |
0313586 |
CONVER, H. T. lead |
| 29 |
0551426 |
GORMMET |
| 30 |
0313837 |
BRACKET, Amplifier |
| 31 |
0389549 |
FUEL CONN., HOSE & PRIMER BULB AY. This part replaces 0383607. |
| 33 |
0310860 |
TERMINAL |
| 35 |
0825886 |
TERMINAL This part replaces 0510541. |
| 36 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 37 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 38 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 39 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 40 |
0303311 |
SCR,Clamp,eng cable |
| 41 |
0304607 |
PULSE PACK SCREW ASSY |
| 42 |
0580711 |
LEAD ASSEMBLY, Ground |
| 43 |
0580705 |
HOUSING RECTIFIER AND LEAD ASSY This part replaces 0580698. |
| 46 |
0313727 |
CLIP |
| 49 |
0580731 |
LEAD, Solenoid |
| 50 |
0510761 |
GROMMET |
| 52 |
0314495 |
CLAMP, Distributor base |
| 54 |
0313743 |
RING, Reverse cut off |
| 55 |
0313666 |
RET., Distributor base 1 |
| 56 |
0313667 |
SPR, Washer, flywheel to rotor |
| 57 |
0580726 |
STATOR ASSEMBLY, 9 amp |
| 58 |
0313740 |
SCREW, Starter and distributor |
| 59 |
0580686 |
FLYWHEEL & RING GEAR ASSEMBLY |
| 60 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 61 |
0551705 |
SCREW, Coil & yoke assembly |
| 65 |
0302556 |
NUT |
| 67 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 68 |
0580730 |
COIL & YOKE ASSEMBLY |
| 69 |
0311217 |
MANCHON, solénoïde |
| 0382475 |
0382475 |
DISTRIBUTOR BASE ASSEMBLY, Complete |
