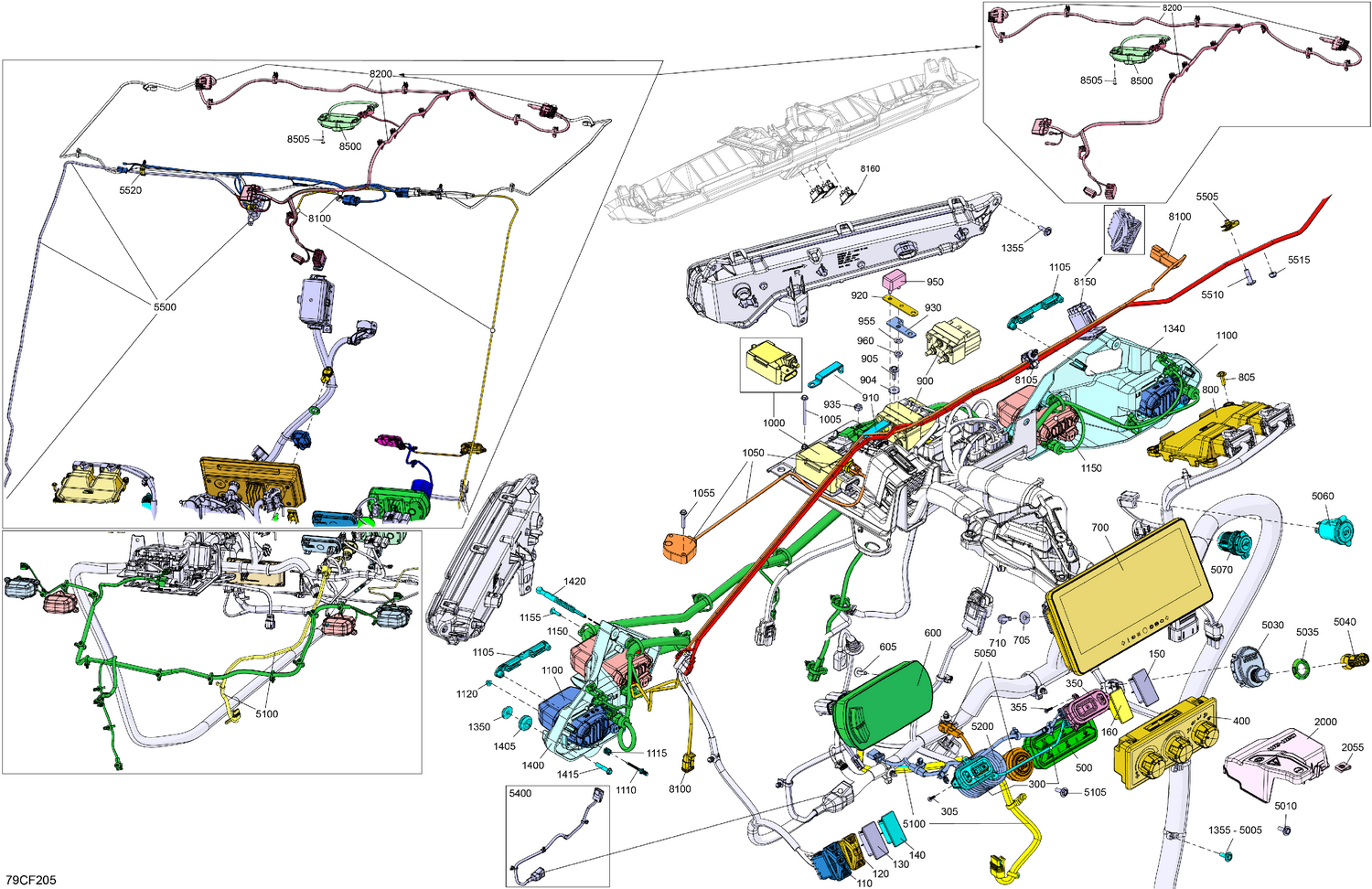

08- Electric - Front Section
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 710007663 | Light Switch |
| 120 | 710007665 | Winch Switch |
| 130 | 710007173 | Plug Carling |
| 140 | 710007173 | Plug Carling |
| 150 | 710007173 | Plug Carling |
| 160 | 710007173 | Plug Carling |
| 300 | 710009446 | LH Multifunction Switch |
| 305 | 250001234 | Screw Plastite Torx K30 X 12 |
| 350 | 710010681 | RH Multifunction Switch |
| 355 | 250001234 | Screw Plastite Torx K30 X 12 |
| 400 | 710010452 | A/C Unit Control |
| 500 | 710010670 | Multifunction Switch |
| 600 | 710008298 | Multifunction Compact Gauge |
| 605 | 250000959 | Screw PT Type K-50 X 16 |
| 700 | 710010375 | Multifunction Gauge 10 |
| 705 | 234062670 | Stainless Steel Flat Washer |
| 710 | 207661644 | Hex. Flange Screw M6 X 16 |
| 800 | 710009076 | Module_Bcm Opt #5 |
| 805 | 250000959 | Screw PT Type K-50 X 16 |
| 900 | 710006991 | Solenoid |
| 904 | 250200025 | Washer M5 |
| 905 | 250000959 | Screw PT Type K-50 X 16 |
| 910 | 710004772 | Power Bar |
| 920 | 710006401 | Copper Busbar |
| 930 | 710004873 | Power Bar |
| 935 | 232561200 | Brass Elastic Stop Nut M6 |
| 950 | 710007039 | Circuit Breaker 50 Amp |
| 955 | 234161601 | Lock Washer Helical M6 |
| 960 | 250100071 | Hex. Flange Nut M5 |
| 1000 | 515179191 | Radio Frequency Module |
| 1005 | 241154540 | Hex. Screw K50 X 45 |
| 1050 | 515179819 | Radio Frequency Antenna |
| 1055 | 250000680 | Hex. Flange Screw K50 X 25 |
| 1100 | 710008088 | Low Beam Light |
| 1105 | 517309049 | Support Pivot |
| 1110 | 517309133 | Threaded Rod |
| 1115 | 517309058 | Compression Spring |
| 1120 | 517309134 | Specialized Nut |
| 1150 | 710006910 | HIgh Beam Light |
| 1155 | 250000759 | Torx Truss Pt K40 X 16 |
| 1340 | 710009206 | RH Headlight Support |
| 1350 | 710004749 | Shoulder Bushing |
| 1355 | 250000959 | Screw PT Type K-50 X 16 |
| 1400 | 710009482 | LH Headlight Support |
| 1405 | 293720130 | Overmolded Grommet |
| 1415 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 1420 | 710009786 | Screw Lux |
| 2000 | 710009444 | Junction Block Cover |
| 2055 | 250100208 | Panel Nut M6 X 1.0 |
| 5005 | 250000712 | Torx Screw M6 X 20 |
| 5010 | 250000959 | Screw PT Type K-50 X 16 |
| 5030 | 710008832 | Terminal DESS CAN |
| 5035 | 278004274 | Specialized Nut |
| 5040 | 710004964 | Grey Key RFID |
| 5050 | 710005213 | Start-Stop Button |
| 5070 | 710008594 | USB Connector |
| 5100 | 710009717 | Trottle Pedal Harness |
| 5105 | 250000959 | Screw PT Type K-50 X 16 |
| 5200 | 710009486 | Steering Wheel Wiring Harness |
| 5400 | 710009348 | Front Differential Wiring Harness |
| 5500 | 710009343 | Power Roof Wiring Harness |
| 5505 | 250100198 | Panel Nut M6 X 1.0 |
| 5510 | 250000722 | Torx Screw M6 X 20 |
| 5515 | 232561200 | Brass Elastic Stop Nut M6 |
| 5520 | 293750083 | Cable Support |
| 8100 | 710009716 | Wiper Harness |
| 8105 | 293750083 | Cable Support |
| 8150 | 710008374 | Wiper Switch |
| 8160 | 710007173 | Plug Carling |
| 8200 | 710009713 | Roof Harness |
| 8500 | 710010738 | Dome Light |
