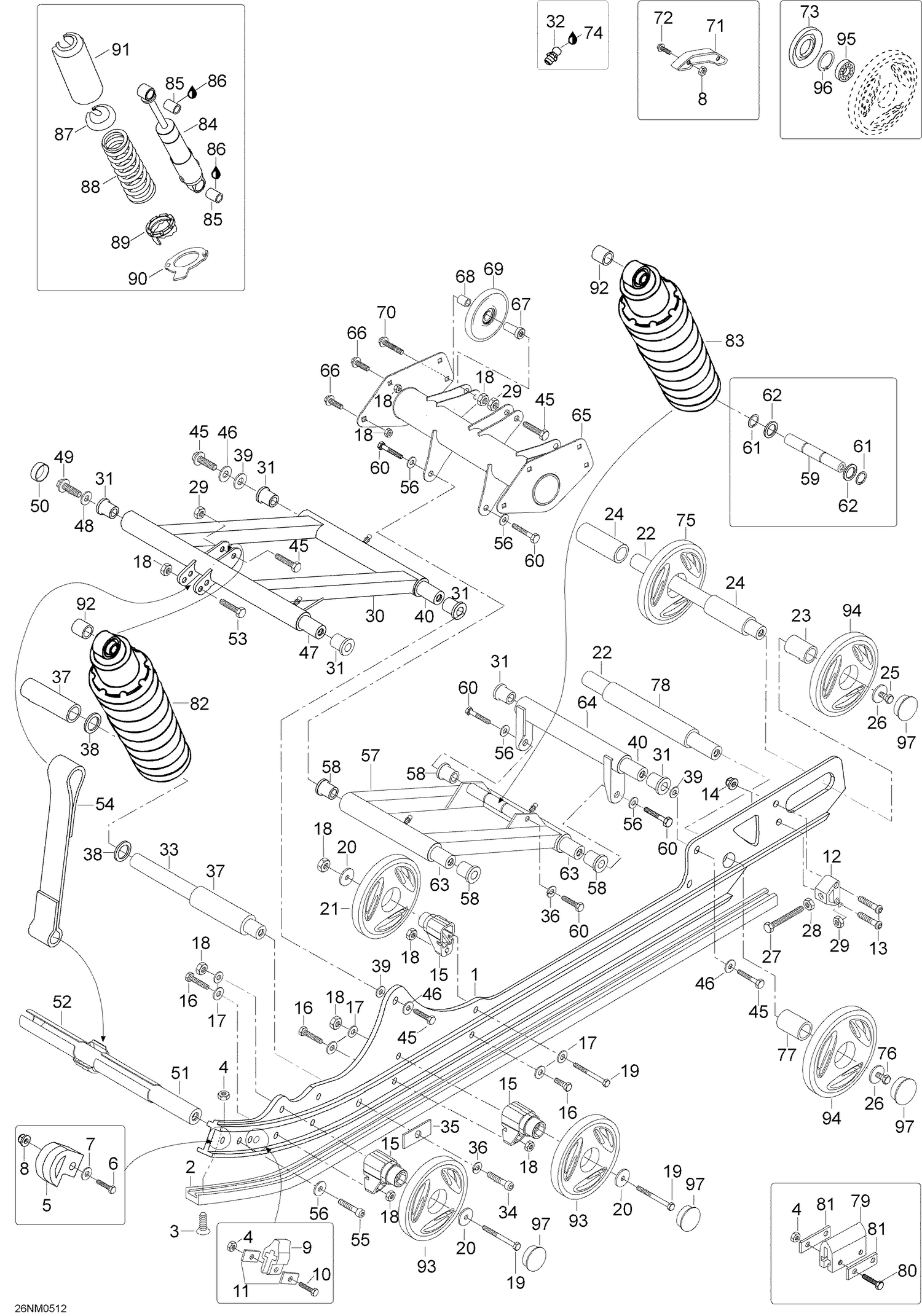

08- Rear Suspension

08- Rear Suspension

Parts (94)

RefPart NumberDescription
1 605252294 Runner
2 5343347 Runner shoe
3 40059 Socket head screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 He. screw M6 x 25
7 20003 Washer A6,4
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Hex. screw M6 x 30
11 548470 Washer
12 5341633 Tensioner
13 40392 Socket head screw M8 x 45
14 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
15 605450182 SUPPORT - Call your local BRP dealership
16 40037 Hex. screw M8 x 25
17 234081410 Flat Washer 8 mm This part replaces 20104.
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
20 503183100 Washer
21 503190798 Wheel black 139mm
22 605348720 Rear shaft
23 5441512 Sleeve
24 605450572 Sleeve
25 40050 Hex. screw M10 x 35
26 503183300 Washer, hardened M10
27 40239 Screw M10 x 100
28 232006414 Hex. Nut M10 This part replaces 33004.
29 33012 Nut elastic M10
30 5145588 Welded front arm
31 31024 Cushion
32 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
33 5347633 Shaft, shock
34 40134 Screw Socket HD.DIN 912 This part replaces 40536.
35 5446786 Support plate
36 20068 Lock washer D10
37 5346649 Sleeve - Call your local BRP dealership
38 31013 Shim Ring
39 20116 Washer
40 5346900 Shaft
45 40016 Hex. screw M10 x 45
46 512056700 Lock washer
47 5346135 Shaft
48 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
49 40243 Hex. screw M12 x 60
50 5448025 Cap
51 5343471 Shaft
52 605349381 Retainer for stopper strap - Call your local BRP dealership
53 207084544 Hex. Screw M8 X 45 This part replaces 40008.
54 605449385 Stopper strap
55 40134 Screw Socket HD.DIN 912
56 20105 Washer, hardened M10
57 605349313 Rear Arm
58 31027 Cushion
59 605451897 REARSHOCK SHAFT - Call your local BRP dealership
60 40014 Hex. screw M10 x 40
61 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
62 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
63 5346865 SHAFT - Call your local BRP dealership
64 5345535 Rear arm
65 605249274 Upper arm
66 40058 Locking screw M8 x 20
67 5447945 Sleeve
68 5447946 Sleeve
69 46027 Idler Wheel - Call your local BRP dealership
70 40150 Locking screw M8 x 90
71 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
72 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
73 572089000 LABYRINTH SEAL - Call your local BRP dealership
74 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
75 503189478 Wheel 165
76 40335 Hex. screw m10 x 30
77 5444099 Sleeve
78 605449516 Sleeve
79 570023100 Rubber damper
80 40002 Hex. screw m6 x 40
81 548387 Support plate - Call your local BRP dealership
82 605348956 Shock ass'y, front arm
83 605348957 Shock ass'y, rear arm
84 23142 Shock
84 23143 Shock ass'y, rear arm
85 31094 Cushion
86 320006 Loctite
87 706200881 Spring Stopper This part replaces 503140600.
88 25058 Spring, front arm
88 Not Available As Spare Part - Spring, rear arm
89 505073625 Adjustment Cam This part replaces 503183700.
90 605348748 ARM ADJUSTING ASS'Y - Call your local BRP dealership
91 5346754 Shock protector
92 5446652 Bushing
93 503190796 WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership
94 503190856 Idler wheel 165mm (Full Moon)
95 293350115 Ball Bearing This part replaces 503190795.
