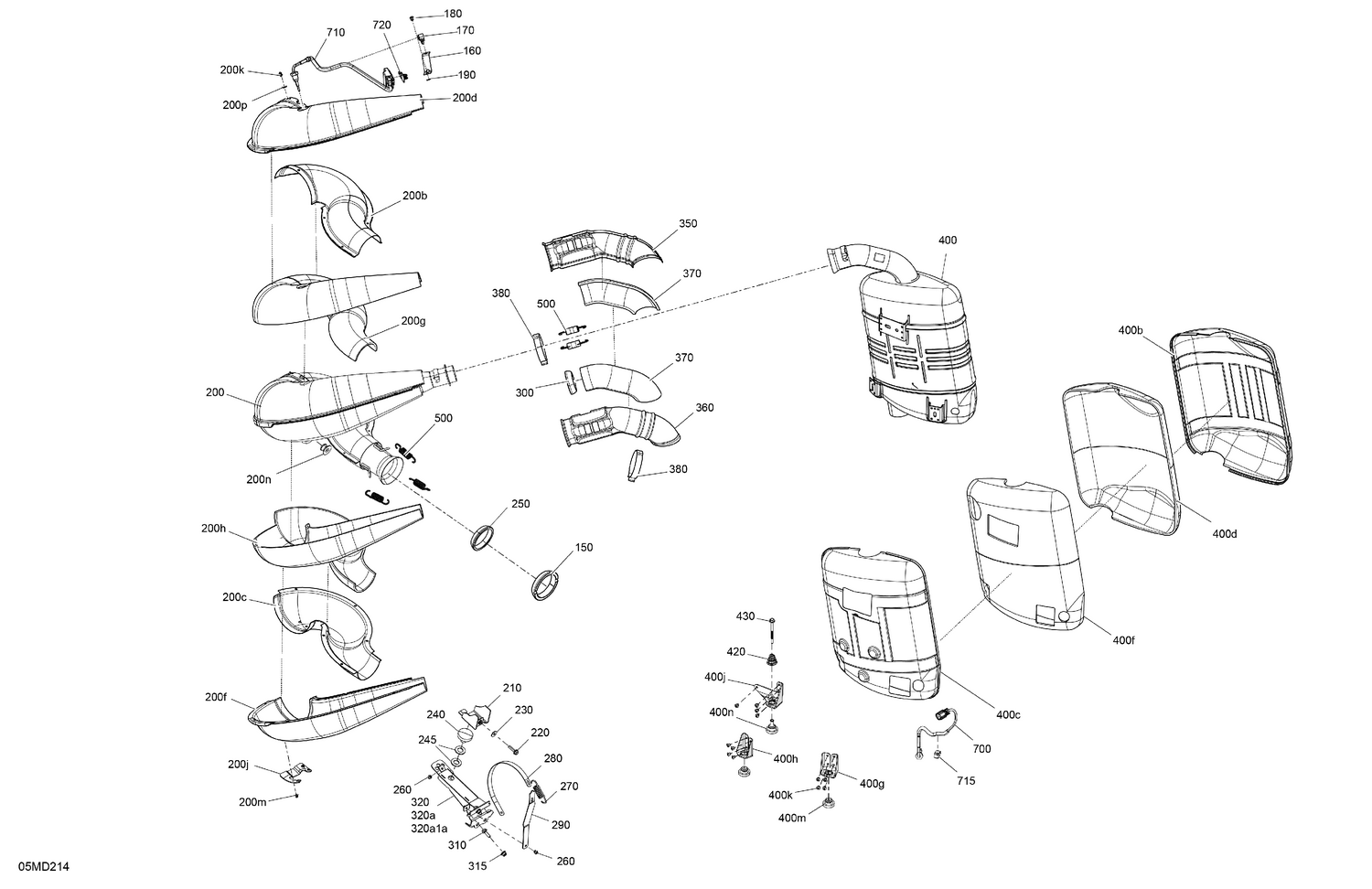

02- Engine - Exhaust
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 160 | 514055512 | Support |
| 170 | 515176795 | Tie Rap Mount (screwable) |
| 180 | 390909100 | Avex Rivet |
| 190 | 514055537 | Washer 3/16 |
| 200b | 514056281 | Shell |
| 200c | 514056282 | Shell |
| 200d | 514056421 | Rear Upper Shell This part replaces 514055617. |
| 200f | 514056141 | Rear Lower Aluminum Shell |
| 200g | 514056351 | Glass Wool |
| 200h | 514056352 | Glass Wool |
| 200j | 514055844 | Plate |
| 200k | 390909200 | Avex Rivet |
| 200m | 390909200 | Avex Rivet |
| 200n | 514055632 | Rubber |
| 200p | 514055537 | Washer 3/16 |
| 210 | 514056267 | Bracket |
| 220 | 207562544 | Hex. Flange Screw M6 X 25 |
| 230 | 234062410 | Flat Washer 6 mm |
| 240 | 514053654 | Rubber Bumper |
| 245 | 234071410 | Flat Washer 14 mm |
| 250 | 514055965 | Seal |
| 260 | 390909200 | Avex Rivet |
| 270 | 514055198 | Spring |
| 280 | 514056295 | Bracket |
| 290 | 514056273 | Bracket |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 207662044 | Hex. Flange Screw M6 X 20 |
| 315 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 320a1a | 250100065 | Clinching Nut Hexert M8 |
| 350 | 514055283 | Front Shield |
| 360 | 514055284 | Rear Shield |
| 370 | 514056382 | Wool Glass Tail This part replaces 514056209. |
| 380 | 514056035 | Clip |
| 400b | 514055980 | RH Deflector |
| 400c | 514056315 | LH Deflector |
| 400d | 514056353 | Glass Wool |
| 400f | 514056354 | Glass Wool |
| 400g | 514056193 | Exhaust Support |
| 400h | 514056082 | Exhaust Support |
| 400j | 514056083 | Exhaust Support |
| 400k | 293150293 | Pop Rivet 3/16 X ,425 |
| 400m | 514055203 | Stopper |
| 400n | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 500 | 514055198 | Spring |
| 700 | 514056266 | Exhaust Temperature Sensor |
| 710 | 515178170 | Module |
| 715 | 710010204 | Clip |
