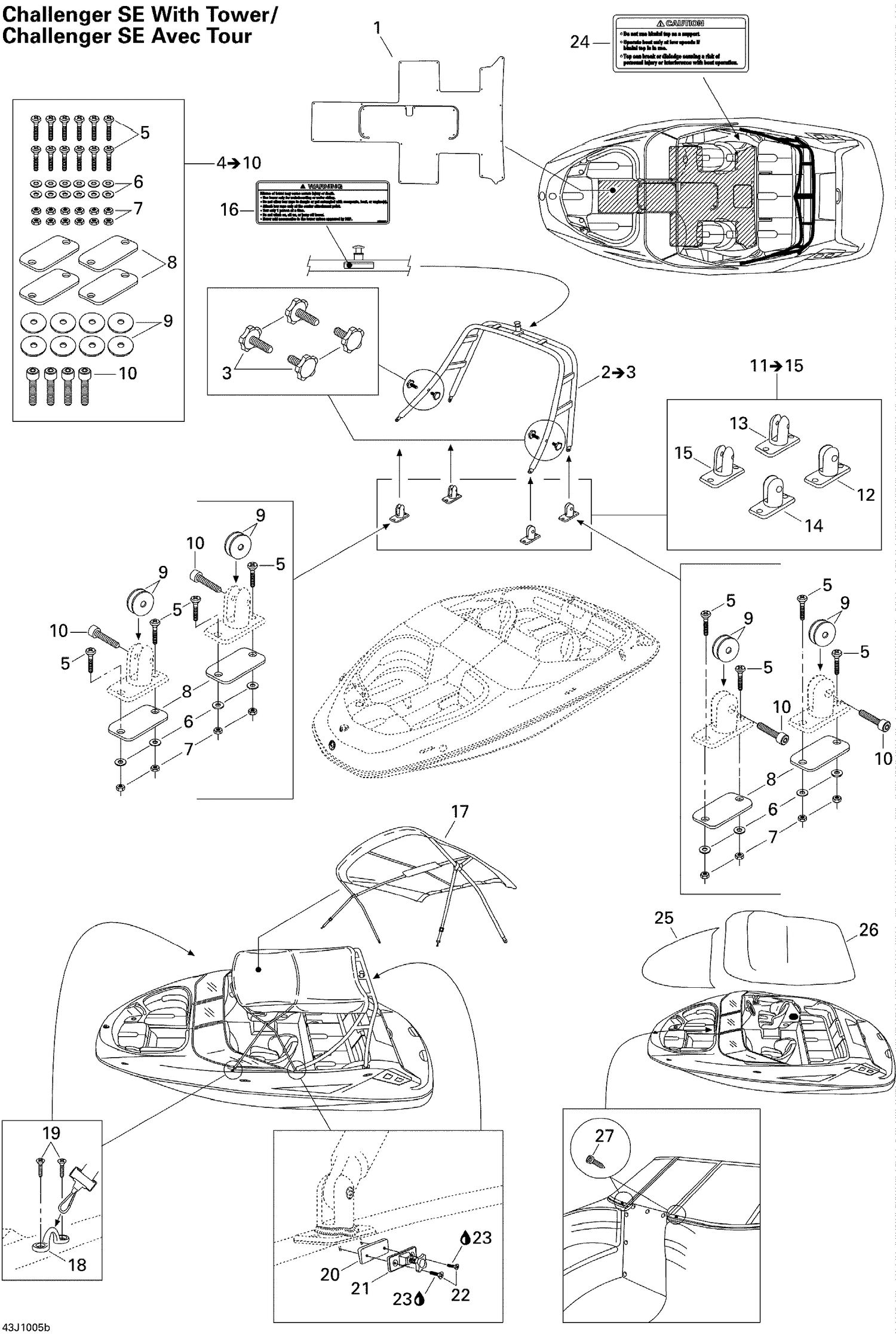

| Ref | Part Number | Description |
|---|
| 1 |
269800414 |
ANTI SLIP MAT - Call your local BRP dealership This part replaces 204950182. |
| 3 |
204072011 |
Soft Touch Knob |
| 5 |
204100151 |
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership |
| 6 |
204071423 |
WASHER - Call your local BRP dealership |
| 7 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 8 |
204130107 |
REAR GASKET - Call your local BRP dealership |
| 9 |
Not |
Available As Spare Part - Washer, Nylon |
| 10 |
204100094 |
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership |
| 12 |
204072251 |
REAR TOWER SUPPORT, PORT SIDE - Call your local BRP dealership |
| 13 |
204072252 |
REAR TOWER SUPPORT, STARBOARD - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - Front Tower Support, Port Side |
| 15 |
Not |
Available As Spare Part - Front Tower Support, Starboard |
| 16 |
204902068 |
WARNING LABEL, TOWER - Call your local BRP dealership |
| 17 |
204950112 |
BIMINI TOP ASS'Y - Call your local BRP dealership |
| 18 |
204071845 |
STRAP EYE - Call your local BRP dealership |
| 19 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 20 |
204072263 |
BIMINI MOUNT SPACER - Call your local BRP dealership |
| 21 |
204072264 |
BIMINI MOUNT - Call your local BRP dealership |
| 22 |
208453060 |
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
204901331 |
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership |
| 25 |
204950083 |
Bow Cover |
| 26 |
204950105 |
COCKPIT COVER - Call your local BRP dealership |
