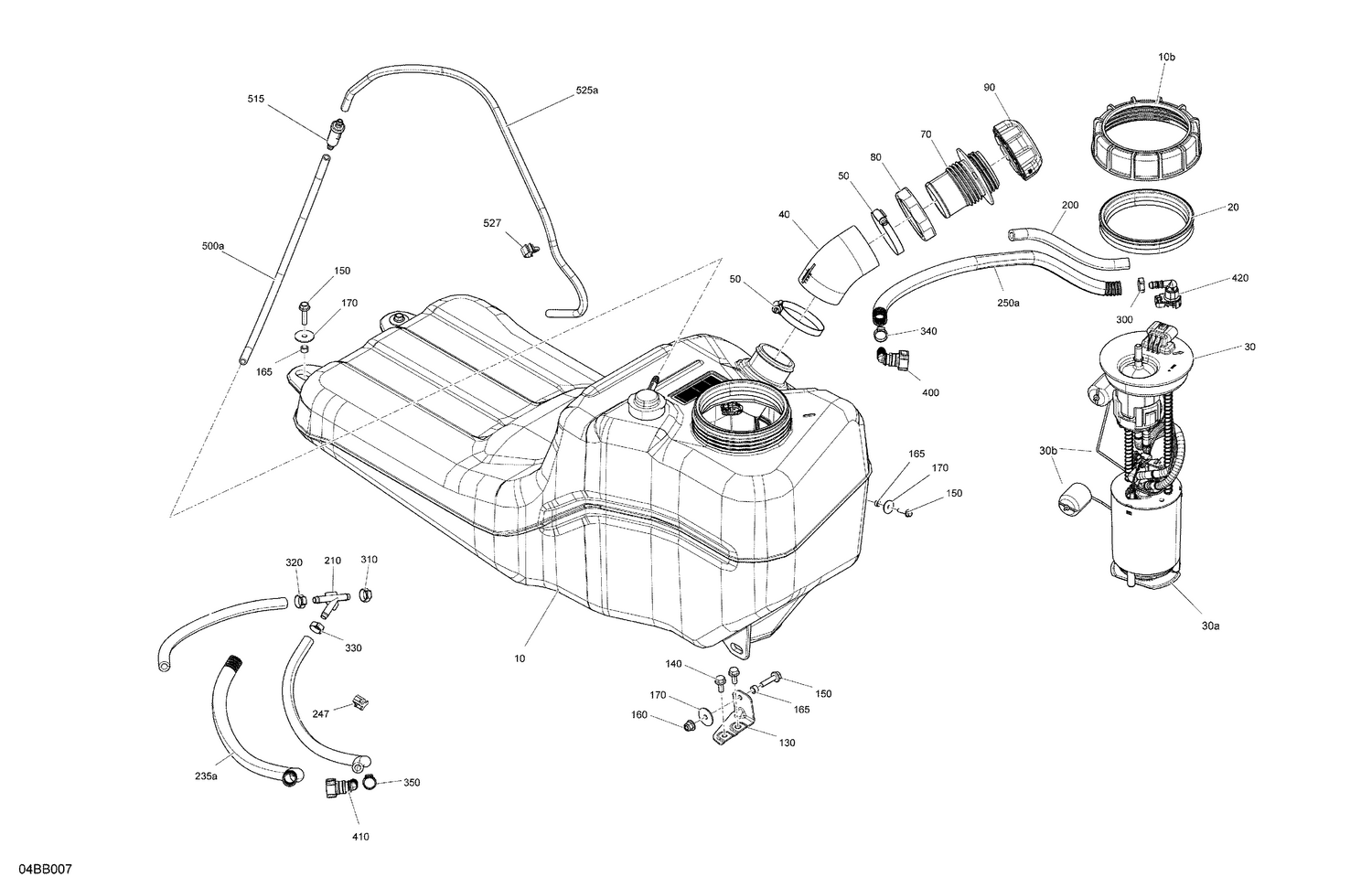

02- Engine - Fuel
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250173 | Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709000828 | Fil Neck Hose |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 130 | 709000997 | Tank Bracket |
| 140 | 207661644 | Hex. Flange Screw M6 X 16 |
| 150 | 207662554 | Hex. Flange Screw M6 X 25 |
| 160 | 233261466 | Hex. Flange Elastic Nut M6 |
| 165 | 293900135 | Spacer |
| 170 | 250200029 | Washer M6 |
| 200 | 219704475 | Hose 7,94 MM ID 3000MM Long This part replaces 715900706. |
| 210 | 709001329 | Y Fitting |
| 235a | 415080000 | Tubing Protector 16 mm (1 meter pac) |
| 247 | 707003073 | Hose Support |
| 250a | 415080000 | Tubing Protector 16 mm (1 meter pac) |
| 300 | 293650053 | Crimp Clamp |
| 310 | 293650053 | Crimp Clamp |
| 320 | 293650053 | Crimp Clamp |
| 330 | 293650053 | Crimp Clamp |
| 340 | 293650053 | Crimp Clamp |
| 350 | 293650053 | Crimp Clamp |
| 400 | 275500700 | Quick Attach 90° |
| 410 | 275500700 | Quick Attach 90° |
| 420 | 275500921 | Quick Disconnect |
| 500a | 293830193 | Polyurethane Hose |
| 515 | 709001120 | Filter |
| 525a | 293830193 | Polyurethane Hose |
