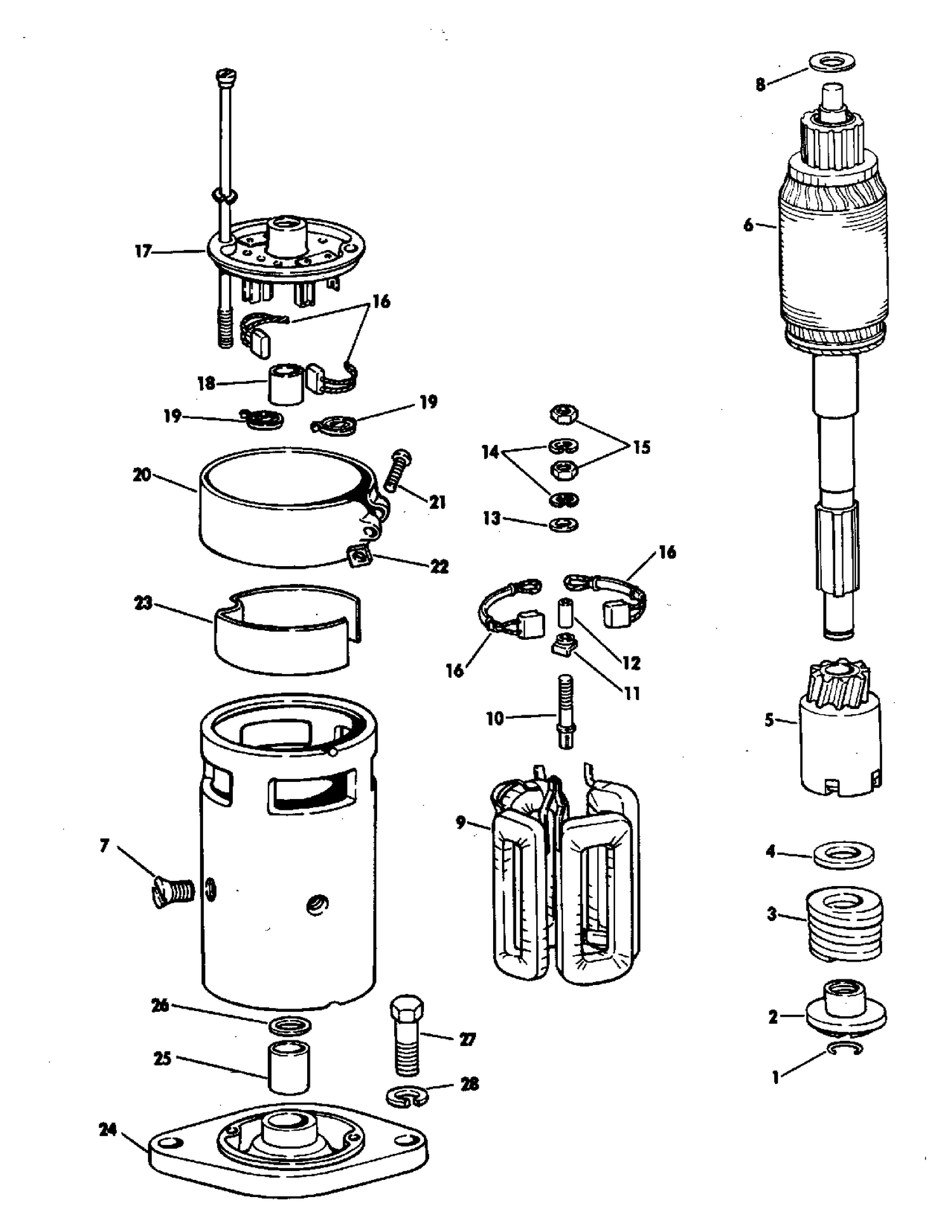

| Ref | Part Number | Description |
|---|
| 1 |
0314982 |
RING DRIVE Retaining |
| 2 |
0314983 |
CUP, Drive spring |
| 3 |
0314984 |
SPRING, Starter drive |
| 4 |
0314985 |
WASHER, Drive spring |
| 5 |
0383518 |
PINION ASSEMBLY |
| 6 |
0383517 |
ARMATURE ASSEMBLY |
| 7 |
118861-ES |
SCREW, Pole shoe |
| 8 |
105E-11036 |
THRUST WASHER, Armature |
| 9 |
EOTA-11081-B |
FIELD COIL ASSEMBLY |
| 10 |
105E-11102 |
TERMINAL |
| 11 |
105E-11107-B |
INSULATING BUSHING, Terminal |
| 12 |
E281-CQ-1 |
SPACER |
| 13 |
118153-ES7/8 |
WASHER, Flat |
| 14 |
34825-S7/8 |
LOCKWASHER |
| 15 |
105E-11108 |
NUT, Field terminal |
| 16 |
105E-11057 |
BRUSH KIT |
| 17 |
105E-11049 |
PLATE ASSEMBLY, Brush end |
| 18 |
105E-11052 |
BUSHING, Plate |
| 19 |
211E-11059 |
SPRING, Brush |
| 20 |
EOTA-11125 |
BAND ASSEMBLY |
| 21 |
118676-ES |
SCREW |
| 22 |
117511-ES |
NUT |
| 23 |
106E-11089 |
INSULATOR FIELD COIL |
| 24 |
118E-11130-A |
PLATE ASSEMBLY, Drive end |
| 25 |
105E-11135 |
BUSHING, Plate |
| 26 |
116142-ES |
THRUST WASHER |
| 27 |
0310896 |
SCREW |
| 0382626 |
0382626 |
STARTER MOTOR ASSEMBLY, Complete |
