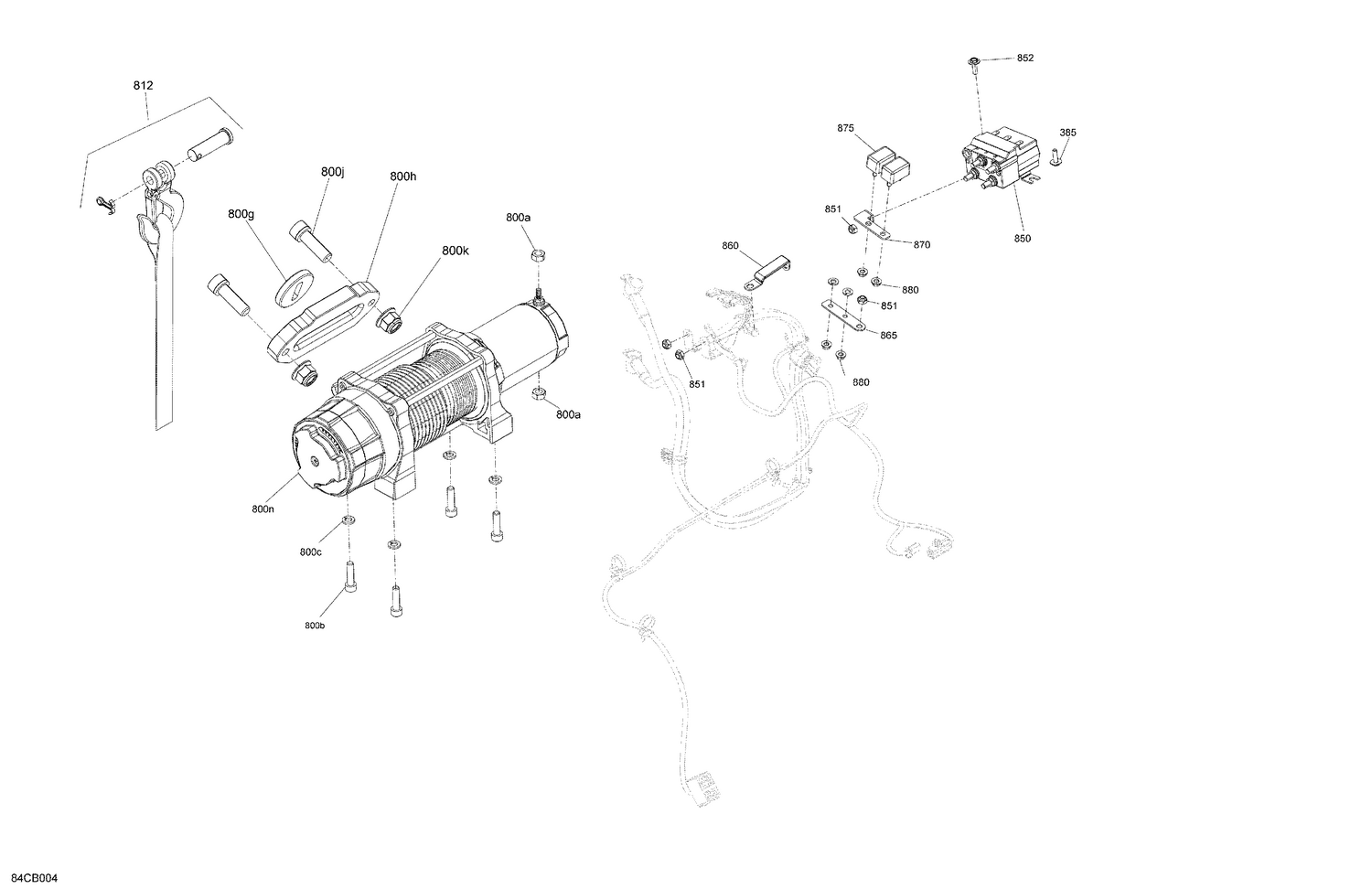

08- Electric - Winch
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 385 | 250000959 | Screw PT Type K-50 X 16 |
| 800a | 232561434 | Elastic Stop Nut M6 |
| 800b | 205083044 | Socket Head Screw M8 X 30 |
| 800c | 234181401 | Lock Washer 8 mm |
| 800g | 710007028 | Stopper |
| 800h | 715006426 | Winch Rope Guide Kit |
| 800j | 205003044 | Socket Screw M10 x 30 |
| 800k | 233201414 | Hex. Flange Elastic Nut M10 |
| 812 | 705014949 | Winch Hook Kit |
| 850 | 710006991 | Solenoid |
| 851 | 232561200 | Brass Elastic Stop Nut M6 |
| 852 | 250000720 | Torx Screw K50 X 16 |
| 860 | 710004772 | Power Bar |
| 865 | 710006401 | Copper Busbar |
| 870 | 710004873 | Power Bar |
| 875 | 710007039 | Circuit Breaker 50 Amp |
