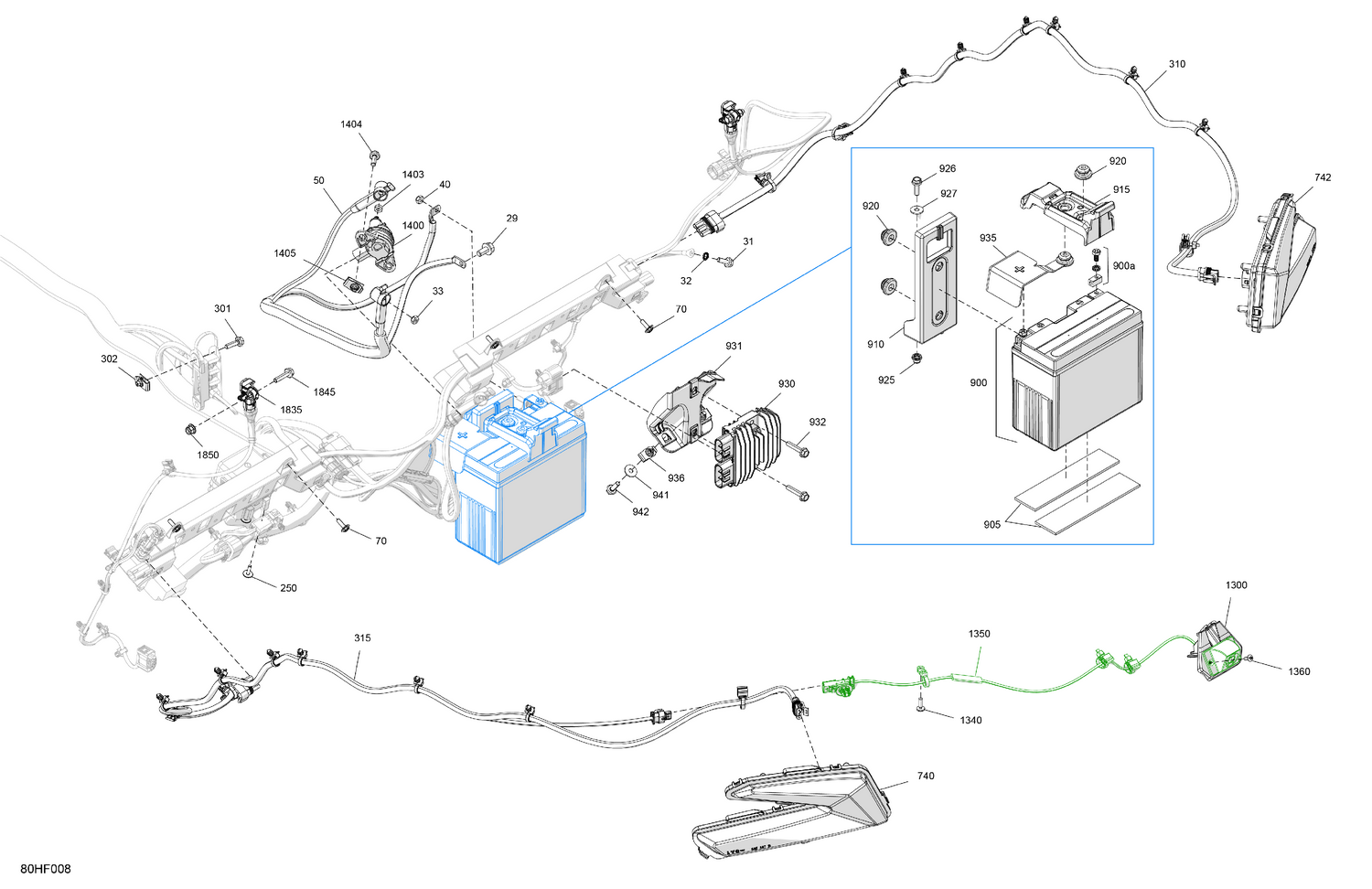

08- Electric - Rear Section
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 29 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 32 | 234461608 | External Serrated Lock Washer 6 mm |
| 33 | 232561200 | Brass Elastic Stop Nut M6 |
| 40 | 232561200 | Brass Elastic Stop Nut M6 |
| 50 | 710007440 | Starter Wiring Harness |
| 70 | 250000959 | Screw PT Type K-50 X 16 |
| 250 | 250000725 | Screw M4 X 16 |
| 301 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 302 | 250100198 | Panel Nut M6 X 1.0 |
| 310 | 710006424 | Rear Wiring Harness |
| 315 | 710010775 | Wiring Harness_Rear Lighting Rear L |
| 740 | 710004743 | LH Tail Light |
| 742 | 710004744 | RH Tail Light |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 293830126 | Rubber Pad |
| 910 | 710004788 | Fixation Plate |
| 915 | 710009128 | Battery Support |
| 920 | 705014429 | Rubber Stopper |
| 925 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 926 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 927 | 234062410 | Flat Washer 6 mm |
| 930 | 710009975 | Regulator_Voltage |
| 931 | 710010829 | Support_Voltage Regulator |
| 932 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 935 | 710006471 | Battery Cable Cap |
| 936 | 250100198 | Panel Nut M6 X 1.0 |
| 941 | 234062670 | Stainless Steel Flat Washer |
| 942 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1300 | 709403251 | Support_Camera Rear |
| 1340 | 250000720 | Torx Screw K50 X 16 |
| 1350 | 710010964 | Camera |
| 1360 | 250000577 | Torx Truss Screw K40 X 12 |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1405 | 250100198 | Panel Nut M6 X 1.0 |
| 1835 | 710009009 | Sensor |
| 1845 | 207662554 | Hex. Flange Screw M6 X 25 |
