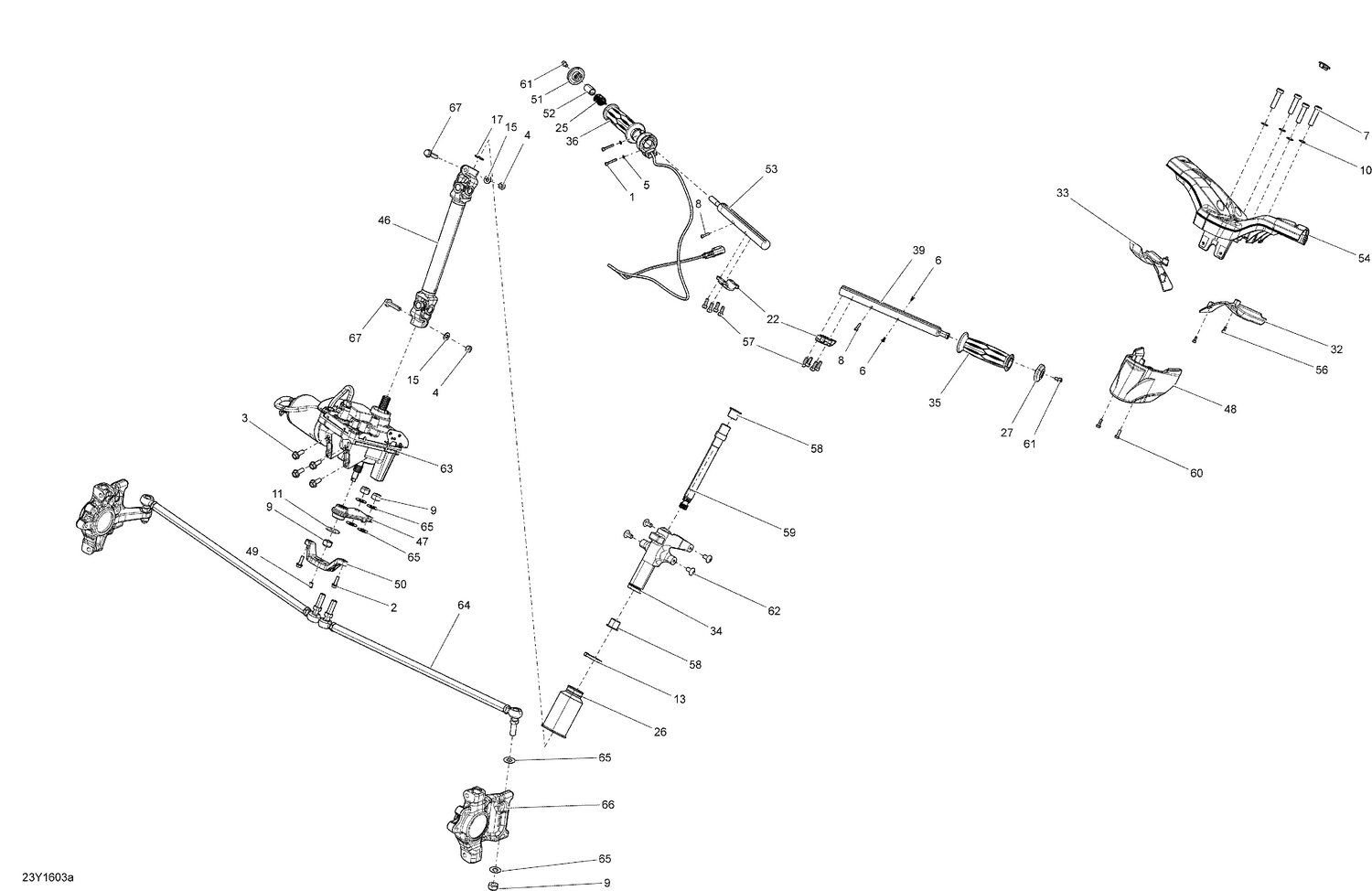

| Ref | Part Number | Description |
|---|
| 1 |
205042594 |
Socket Screw, M4 X 25 |
| 2 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 3 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 |
232081417 |
Hex. Nut M8 |
| 5 |
234040600 |
Flat Washer 4 mm |
| 6 |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 7 |
250000456 |
Thin Socket Screw M10 X 40, Scotch Grip |
| 8 |
250000494 |
Socket Screw, M4 X 16 Scotch Grip |
| 9 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 10 |
250200105 |
Stainless Flat Washer, 10 mm |
| 11 |
250200113 |
Flat Washer, 12 mm |
| 13 |
414115200 |
Tie-Rap 180 mm |
| 15 |
503189157 |
Washer |
| 17 |
709000089 |
O-Ring |
| 22 |
709400631 |
Handlebar Clamp |
| 25 |
709401937 |
Spring This part replaces 709400773. |
| 26 |
709400790 |
Bellows |
| 27 |
709400793 |
Handlebar End Piece LH |
| 32 |
709400991 |
LH Steering Cover |
| 33 |
709400992 |
RH STEERING COVER - Call your local BRP dealership |
| 35 |
709401054 |
Handle Grip |
| 36 |
709401055 |
Throttle Handle Grip |
| 39 |
709401152 |
LH Handlebars |
| 46 |
709401412 |
Lower Steering Column |
| 47 |
709401417 |
PITMAN ARM - Call your local BRP dealership |
| 48 |
709401442 |
Steering Central Cover |
| 49 |
709401527 |
Sensor Sleave |
| 50 |
709401574 |
SENSOR SUPPORT - Call your local BRP dealership |
| 51 |
709401800 |
Handlebar End-Piece RH |
| 52 |
709401801 |
Bushing |
| 53 |
709401938 |
Handlebars This part replaces 709401846. |
| 56 |
205041054 |
Screw-Socket Hd.DIN.912 |
| 57 |
205561644 |
Socket Screw M6 X 16, Scotch Grip |
| 58 |
Not |
Available As Spare Part - Cushion |
| 59 |
709401682 |
Steering Colum, Black |
| 60 |
210251650 |
Hex. Forming Screw M5 X 16 |
| 61 |
205061054 |
Screw-Socket Hd.Din.912 |
| 62 |
250000746 |
Torx Truss Screw M8 X 16 |
| 63 |
709401564 |
Power Steering |
| 64 |
709401820 |
Tie Rod Ass'y |
| 65 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 66 |
709401864 |
RH Knuckle |
| 66 |
709401865 |
LH Knuckle |
