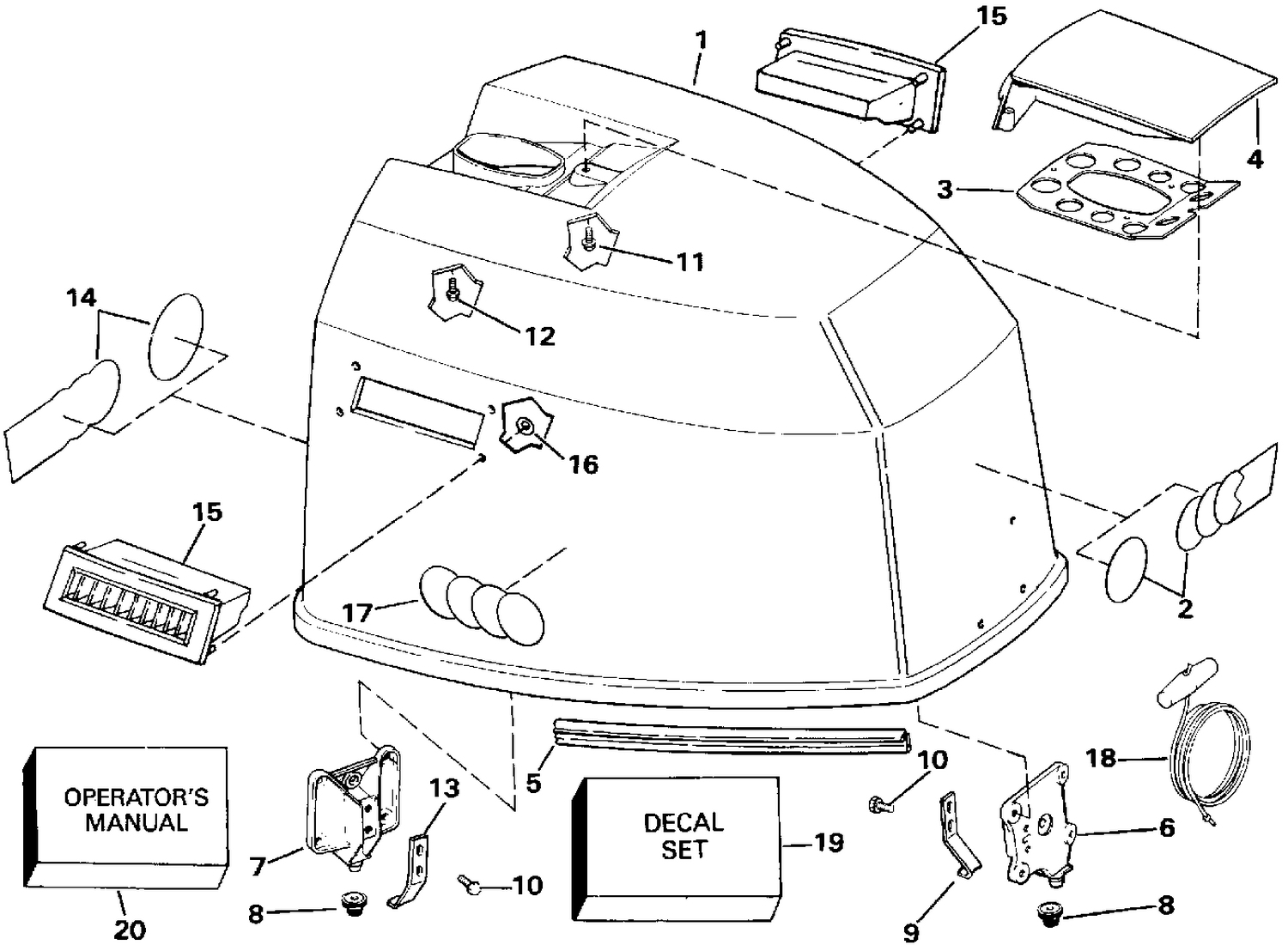

ENGINE COVER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0283713 | ENGINE COVER ASSY., Evinrude |
| 1 | 0432958 | ENGINE COVER ASSY., Johnson |
| 2 | 0210944 | APPLIQUE, Front |
| 2 | 0333746 | APPLIQUE, Engine cover, rear |
| 5 | 0328686 | SEAL, Engine cover |
| 6 | 0336991 | BRACKET, Locating, front |
| 9 | 0323175 | HOOK , Motor Cover, Front |
| 14 | 0210945 | APPLIQUE, Rear |
| 14 | 0333745 | APPLIQUE, Rear |
| 15 | 0398446 | AIR INLET, Port |
| 15 | 0398447 | AIR INLET, Star |
| 17 | 0333744 | APPLIQUE, Port & stbd., Jo |
| 18 | 0378347 | CORDE DE LANCEUR |
| 19 | 0283717 | DECAL SET, Ev. |
| 19 | 0432998 | DECAL SET, Jo. |
