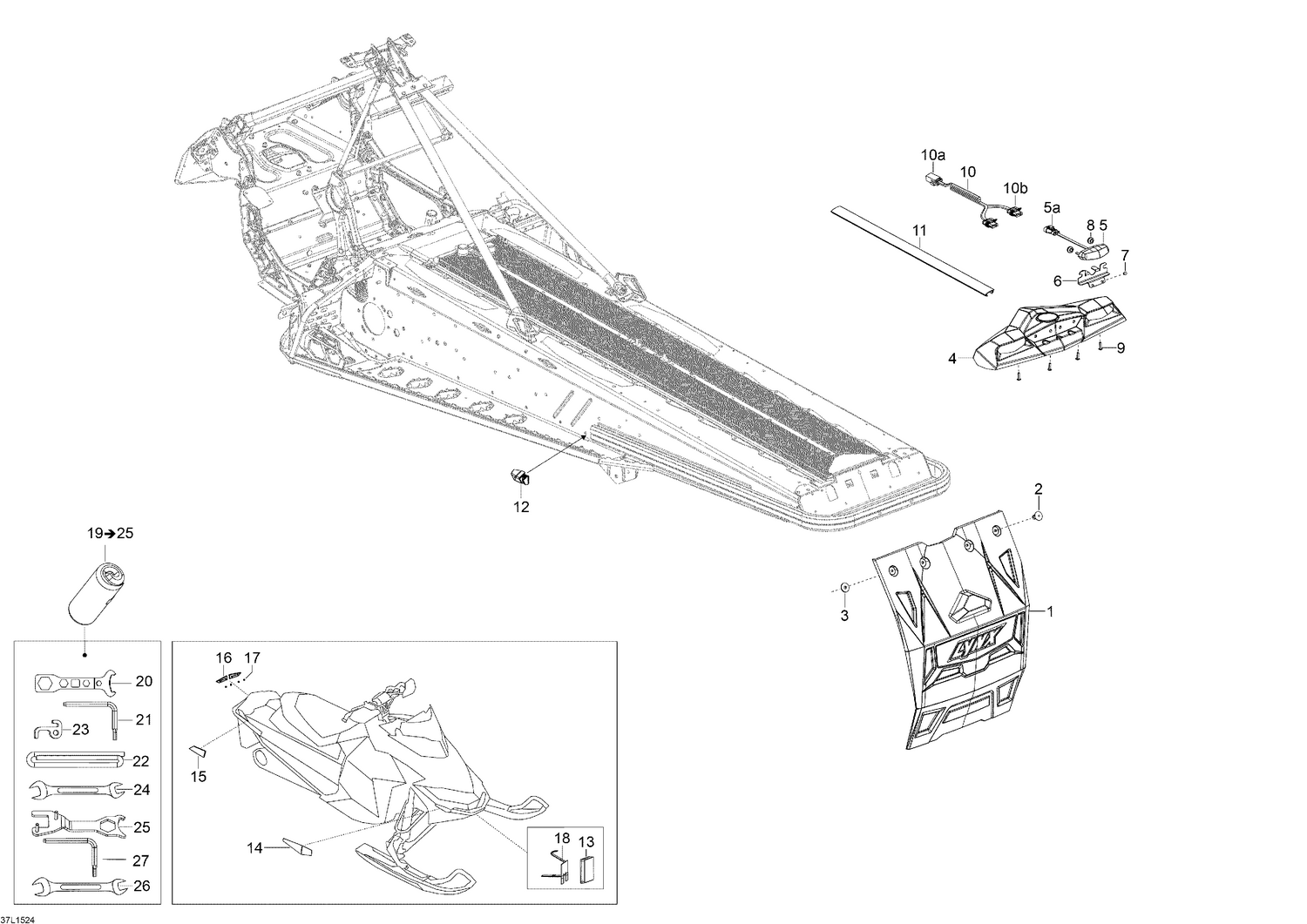

09- Utilities
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000919 | Snow Guard |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 517124300 | Washer |
| 4 | 511000863 | Light Cover |
| 5 | 520001302 | Rear Light |
| 5a | 278001013 | Wire Seal |
| 5a | 409012900 | Male Terminal |
| 5a | 409013700 | Plug |
| 5a | 710000568 | Male terminal housing |
| 6 | 520001375 | Rear Light Support |
| 7 | 390909200 | Avex Rivet |
| 8 | 293720101 | Grommet |
| 9 | 250000759 | Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 10 | 515177516 | Rear Light Harness |
| 10a | 515175232 | Male Terminal |
| 10a | 515175494 | Male Housing, 3 Circuits |
| 10b | 278001013 | Wire Seal |
| 10b | 278001014 | Female Terminal |
| 10b | 409013700 | Plug |
| 10b | 409209600 | Female Housing, 3 Circuits |
| 10b | 515176621 | Wire Seal |
| 11 | 520000829 | Trim |
| 12 | 520001373 | Cap RH |
| 12 | 520001374 | Cap LH |
| 13 | 21118 | Reflector, Bright |
| 14 | 520001351 | Reflector Front LH |
| 14 | 520001352 | Reflector Front RH |
| 15 | 705007154 | Reflector, Yellow RH |
| 15 | 705007155 | Reflector, Yellow LH |
| 16 | 705007156 | Reflector, Red RH |
| 16 | 705007157 | Reflector, Red LH |
| 17 | 732610072 | Push Nut |
| 18 | 520001452 | Reflector Mount |
| 20 | NOT | IN USE Wrench NOT IN USE |
| 21 | NOT | IN USE Key NOT IN USE |
| 22 | NOT | IN USE Starter Rope NOT IN USE |
| 23 | NOT | IN USE Starter Grip NOT IN USE |
| 24 | NOT | IN USE Fork Wrench 10/13 NOT IN USE |
| 25 | NOT | IN USE Wrench NOT IN USE |
| 26 | 34017 | Wrench 17/19 |
