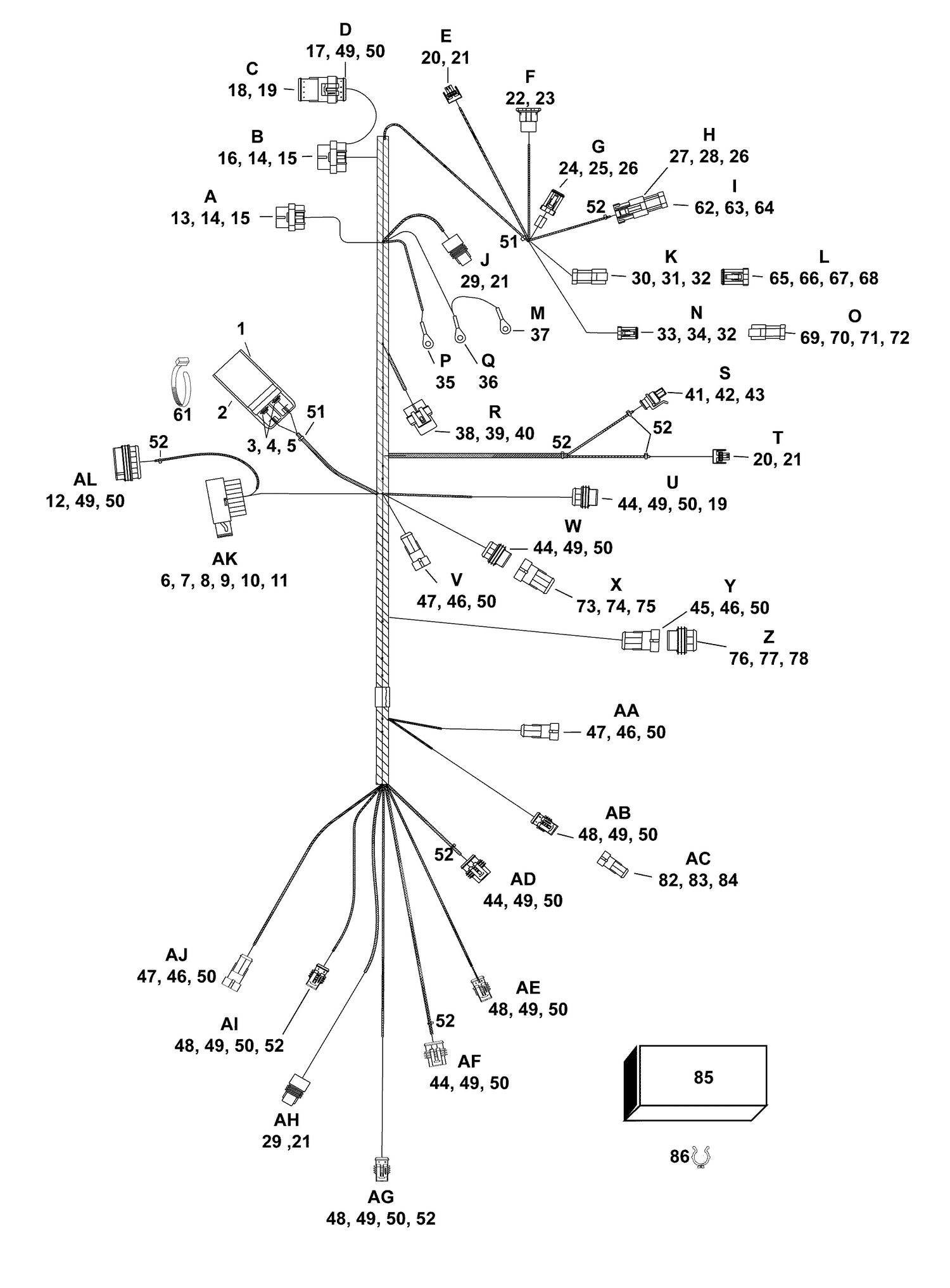

| Ref | Part Number | Description |
|---|
| A |
EMM |
J1-B |
| AA |
WATER |
VALVE CONNECTOR |
| AB |
TRIM/TILT |
RELAY CONNECTOR |
| AC |
SEAL |
ASSEMBLY, Trim/tilt relay connector |
| AD |
IGNITION |
COIL #2 CONNECTOR |
| AE |
FUEL |
PUMP CONNECTOR |
| AF |
IGNITION |
COIL #1 CONNECTOR |
| AG |
FUEL |
INJECTOR #1 CONNECTOR |
| AH |
LOW |
OIL SWITCH CONNECTOR |
| AI |
FUEL |
INJECTOR #2 CONNECTOR |
| AJ |
NEUTRAL |
SWITCH CONNECTOR |
| AK |
EMM |
J2 CONNECTOR |
| B |
EMM |
J1-A |
| C |
SEAL |
ASSEMBLY |
| D |
CANbus |
CONNECTOR |
| E |
CYLINDER |
HEAD TEMPERATURE SENSOR |
| F |
OIL |
PUMP |
| G |
KEY |
SWITCH |
| H |
DIAGNOSTIC |
CONNECTOR |
| I |
SEAL |
ASSEMBLY, Diagnostic connector |
| J |
STARTER |
SOLENOID |
| K |
SYSTEM |
CHECK CONNECTOR |
| L |
SEAL |
ASSEMBLY, System check connector |
| M |
CYLINDER |
BLOCK GROUND |
| O |
SEAL |
ASSEMBLY, Trim/tilt switch connector |
| P |
BATTERY |
POSITIVE TO STARTER SOLENOID |
| Q |
SOLENOID |
GROUND |
| R |
FUSE |
HOLDER |
| S |
THROTTLE |
POSITION SENSOR CONNECTOR |
| T |
AIR |
TEMP SENSOR CONNECTOR |
| U |
CRANKSHAFT |
POSITION SENSOR CONNECTOR |
| V |
FUEL |
SELECTOR SWITCH |
| X |
SEAL |
ASSEMBLY, Trim/tilt switch connector |
| Y |
TRIM |
SENDER CONNECTOR |
| Z |
SEAL |
ASSEMBLY, Trim sender connector |
| 51 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 69 |
0586111 |
CONNECTOR & SEAL |
| 73 |
0586811 |
SEAL ASSEMBLY, Trim & tilt |
| 76 |
0586813 |
SEAL Assembly, Trim sender |
| 86 |
3011450 |
ATTACHE, connecteur |
