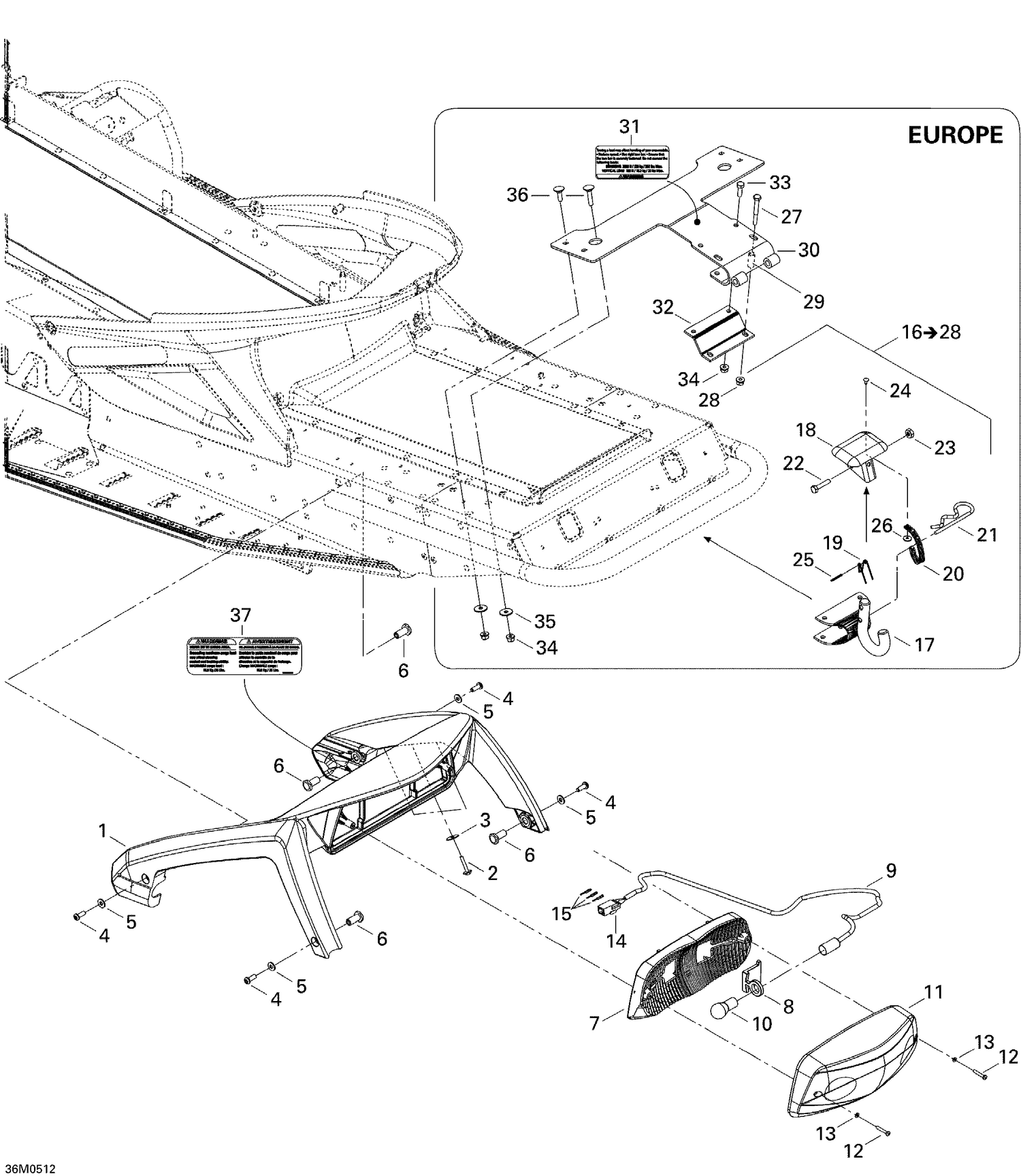

09- Luggage Rack
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000425 | Luggage Rack |
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 |
| 3 | 250200040 | Flat Washer |
| 4 | 250000168 | SOCKET SCREW M6 X 16 - Call your local BRP dealership |
| 5 | 250200039 | Flat Washer |
| 6 | 511000260 | Insert |
| 7 | 510004442 | REFLECTOR - Call your local BRP dealership |
| 8 | 511000431 | BULB SUPPORT - Call your local BRP dealership |
| 9 | 511000428 | Bulb Socket |
| 10 | 520000758 | Bulb This part replaces 410504100. |
| 11 | 511000315 | Lens |
| 12 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 13 | 414516400 | Washer - Call your local BRP dealership |
| 14 | 515175494 | Male Housing, 3 Circuits |
| 15 | 515175232 | Male Terminal |
