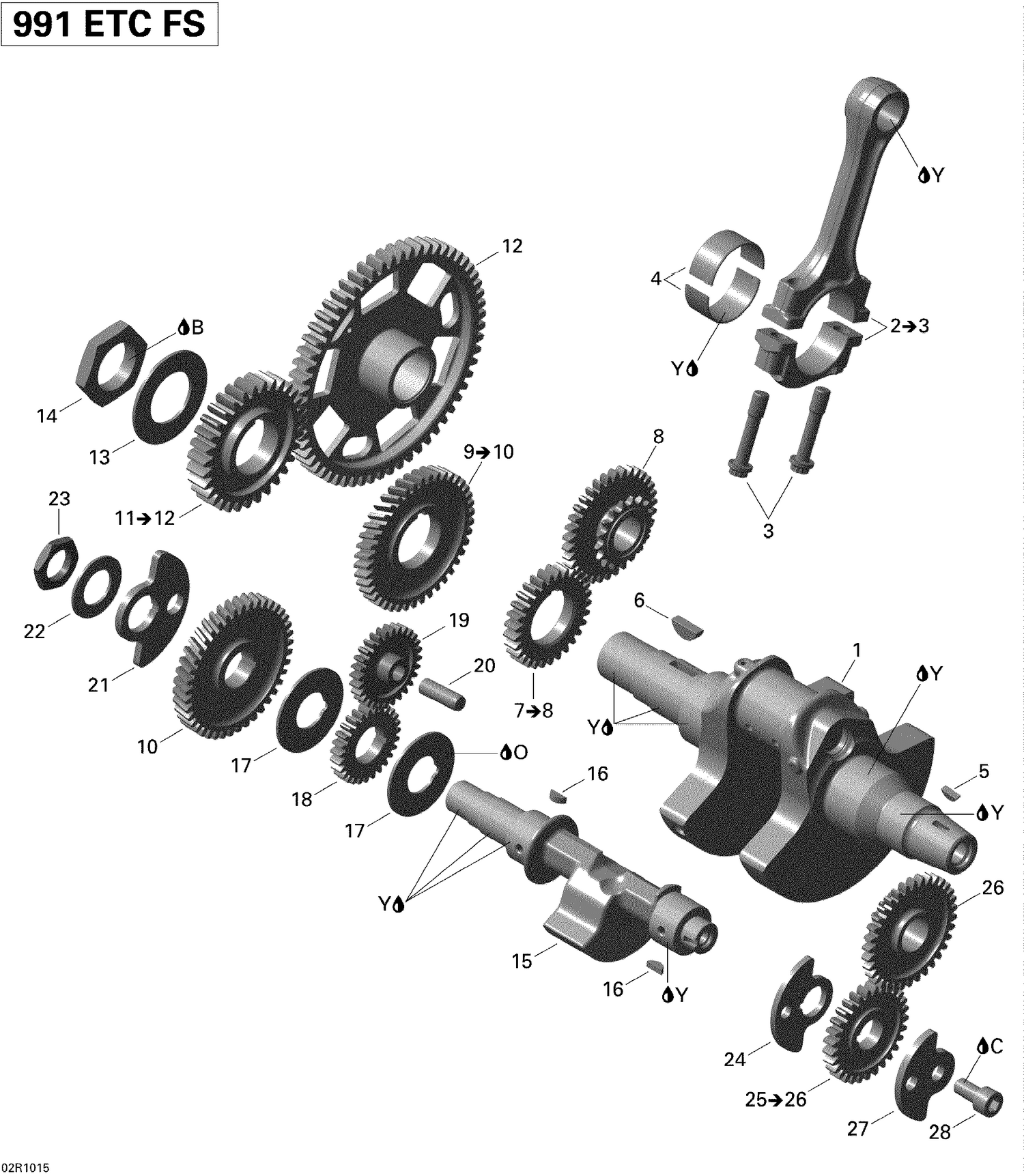

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| O |
Not |
Available As Spare Part - Engine Oil |
| 1 |
420890567 |
CRANKSHAFT - Call your local BRP dealership This part replaces 420684794. |
| 3 |
420640402 |
Screw M10 X 1 |
| 4 |
420233726 |
Plain Bearing |
| 5 |
420246570 |
Woodruff Key 4 X 5 |
| 6 |
420946015 |
WOODRUFF KEY 6 X 9 - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Camshaft Drive Gear |
| 10 |
Not |
Available As Spare Part - Gear Balance |
| 12 |
Not |
Available As Spare Part - Primary Drive Gear |
| 13 |
420245840 |
SPRING WASHER - Call your local BRP dealership |
| 14 |
420242940 |
NUT - Call your local BRP dealership |
| 15 |
420220374 |
Bottom Balancer |
| 16 |
420246570 |
Woodruff Key 4 X 5 |
| 17 |
420627200 |
THRUST WASHER - Call your local BRP dealership |
| 18 |
420634611 |
Water Pump Gear |
| 19 |
420634500 |
INTERMEDIATE GEAR WATER PUMP - Call your local BRP dealership |
| 20 |
420929930 |
PIN, M6 X 50 - Call your local BRP dealership |
| 21 |
420219350 |
MASS BALANCING - Call your local BRP dealership |
| 22 |
420245860 |
Spring Washer |
| 23 |
420242879 |
Nut This part replaces 420242874. |
| 24 |
420219360 |
MASS BALANCING - Call your local BRP dealership |
| 26 |
Not |
Available As Spare Part - Distribution Drive |
| 27 |
420219365 |
MASS BALANCING - Call your local BRP dealership |
| 28 |
420440260 |
Allen Screw, M10 X 20 |
