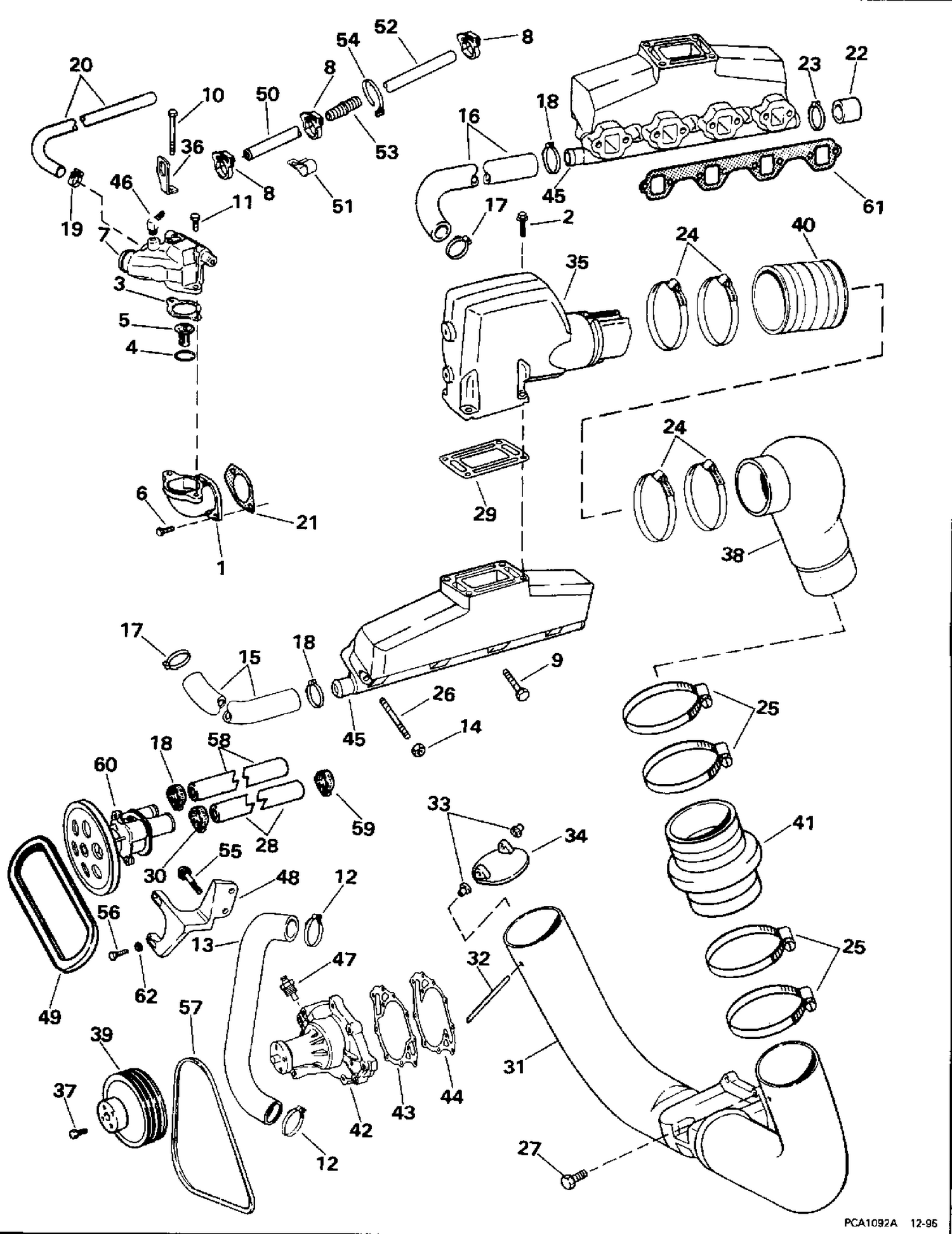

EXHAUST & COOLING

EXHAUST & COOLING

Parts (60)

RefPart NumberDescription
1 3853245 ADAPTER, Thermostat housing
2 3853651 SCREW, Elbow to manifold
3 0312797 GASKET, Therm. hsg. to adapter This part replaces 3852111.
5 0383307 TERMOSTAT ASSEMBLY This part replaces 3852216.
6 3853471 SCREW, Adapter
7 3850360 HOUSING, Thermostat
9 3853155 SCREW, Manifold to engine
10 3853430 SCREW, Manifold, 5 1/4 in. This part replaces 3853391.
11 3853401 SCREW, Housing to manifold
13 3852300 HOSE, Therm. hsg. to pump
14 3853404 NUT, Exhaust manifold
15 3853633 HOSE, Therm. hsg. to manifold, port
16 3853420 HOSE, Therm. hsg. to manifold, stbd.
17 3853780 CLAMP, Hose
18 0912627 CLAMP This part replaces 3852602.
19 0912627 CLAMP This part replaces 3852602.
20 3853581 HOSE, Cooler to thermostat
21 3852456 GASKET, Adapter to intake
22 3852476 CAP, Manifold
23 0912627 CLAMP This part replaces 3852602.
24 3852604 CLAMP, Exhaust
25 3852604 CLAMP, Exhaust
26 3853434 STUD, Manifold
27 3855472 SCREW, Pipe to gimbal This part replaces 3852898.
28 3852331 HOSE, Gimbal to water pump
29 3850496 GASKET, Elbow
30 3850422 CLAMP, Water hose inlet
31 3858873 Kit This part replaces 3855281.
32 0913663 PIN EXHAUST FLAP This part replaces 3852753.
33 3855517 BUSHING, Pin
34 3853864 EXHAUST SEAL ASSY
35 3855269 ELBOW, Exhaust, stbd
35 3855271 ELBOW, Exhaust, port
36 3852649 BRACKET, Center lift
37 3853390 SCREW, Pulley to pump
38 3853609 EXHAUST PIPE, Upper
38 3853615 EXHAUST PIPE, Upper
39 3854187 PULLEY, Water pump
40 3853608 HOSE, Manifold to pipe
41 3852741 HOSE, Exhaust
42 3853796 WATER PUMP
43 3850596 GASKET, Water pump plate
44 3852824 GASKET, Water pump
45 3852347 MANIFOLD, Exhaust
46 3853598 ELBOW, Hose to reservoir
47 3853787 SENDING UNIT, Temperature
48 3855640 BRACKET, Water pump
49 0973535 V-BELT, Water pump
50 3850633 HOSE, Thermostat to valve
52 3850654 HOSE, Reservoir to valve
53 3850666 VALVE, Anti-siphon
54 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158.
55 3853326 SCREW, Bracket to engine
56 3853397 SCREW, Bracket to engine
57 3853713 BELT, Alternator pulley
58 3852332 HOSE, Water pump to reservoir
58 3855120 HOSE, Water pump to cooler
59 0912627 CLAMP This part replaces 3852602.
60 3858847 Water Pump Ay This part replaces 3851623.
61 3853742 GASKET, Manifold to engine
