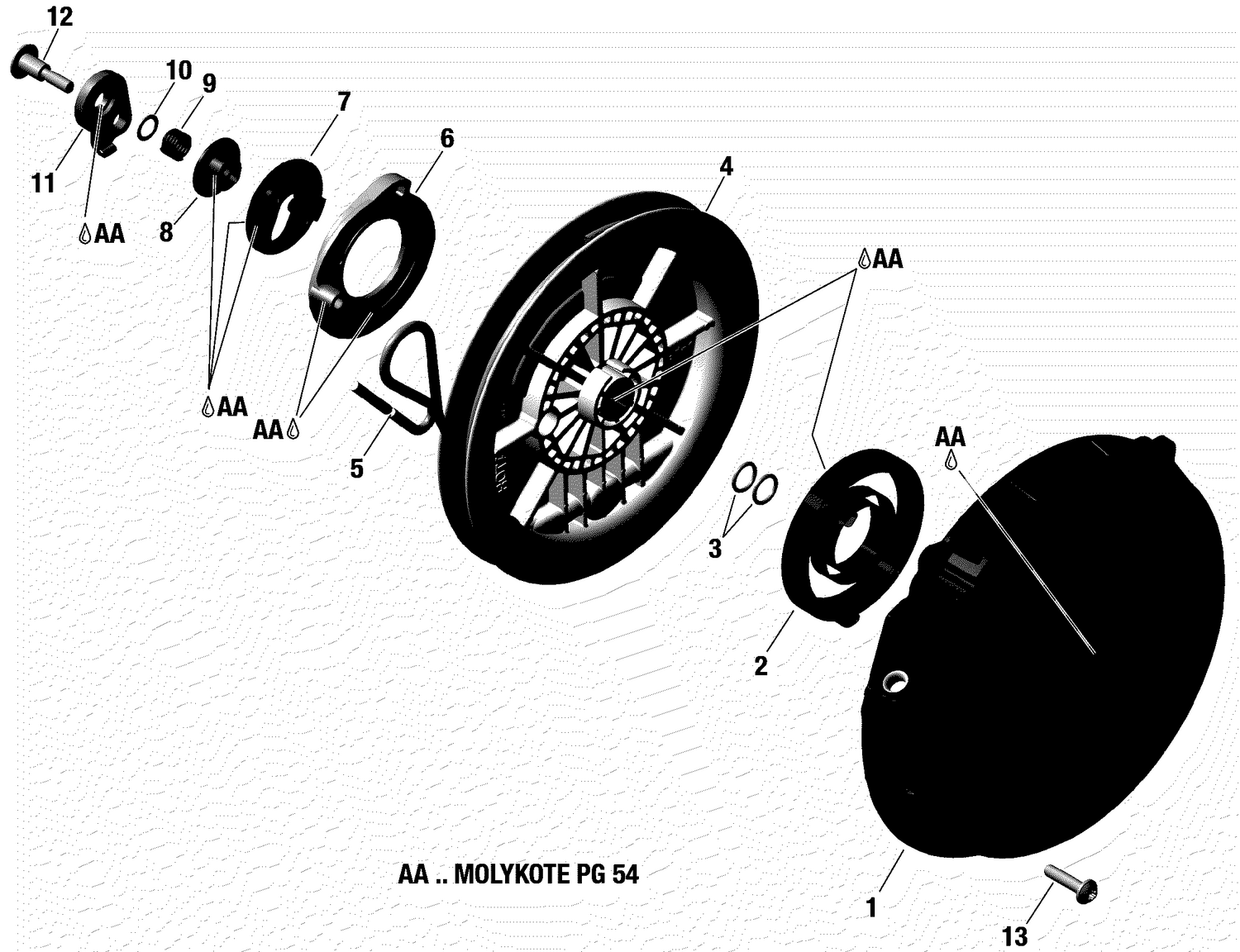

04- Rewind Starter - 598 RS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912121 | Starter Housing |
| 2 | 420939115 | Rewind Spring Ass'y |
| 3 | 420950811 | O-Ring |
| 4 | 420852015 | Sheave |
| 5 | 412500200 | Starter Rope, Meter |
| 6 | 420852639 | Pawl This part replaces 420852636. |
| 7 | 420852640 | Pawl Lock |
| 8 | 420847928 | Step Collar |
| 9 | 420238962 | Spring |
| 10 | 420227948 | Thrust Washer |
| 11 | 420852523 | Lock Lever |
| 12 | 420440502 | Bearing Screw M6 X 12.5 |
