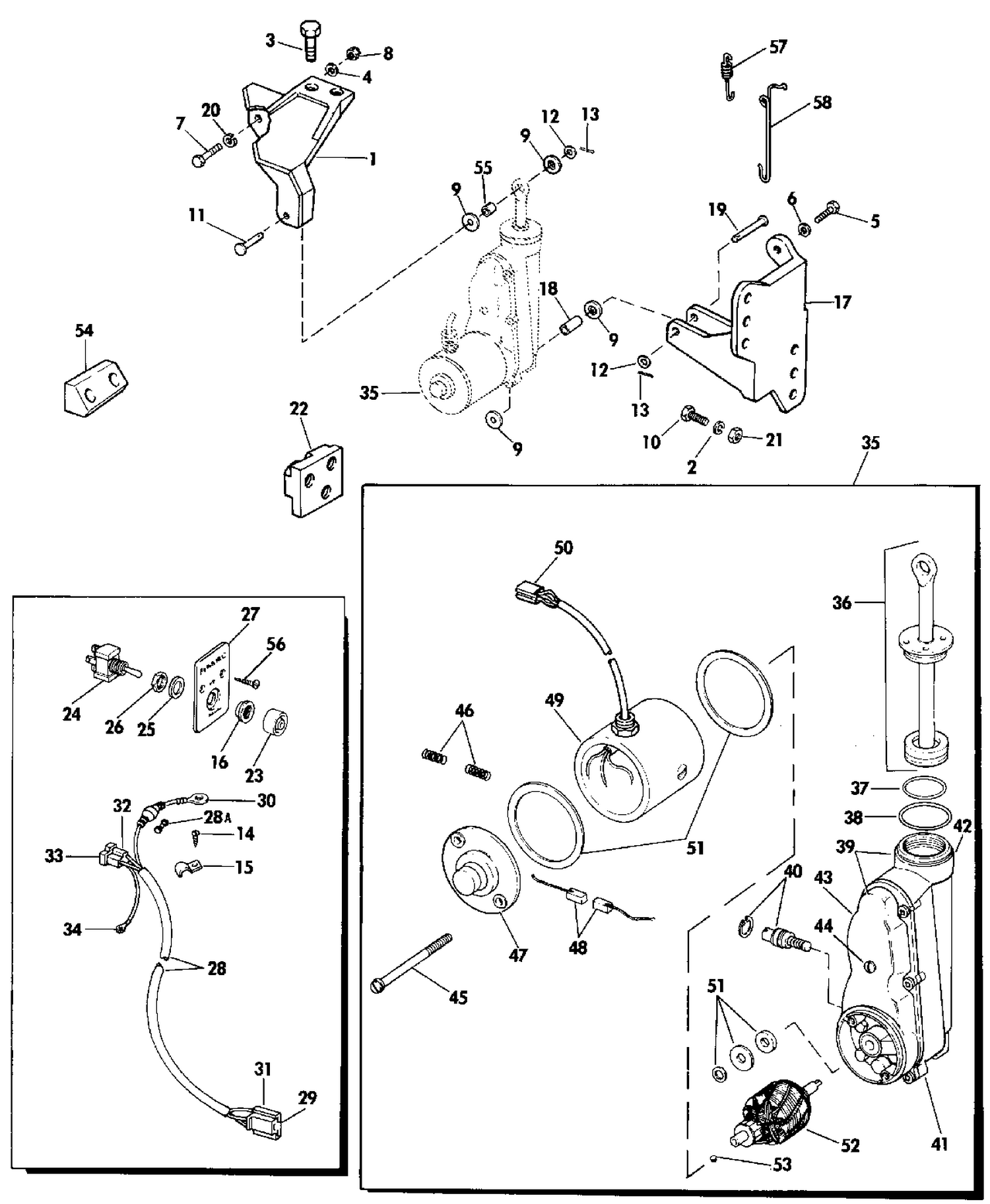

| Ref | Part Number | Description |
|---|
| 1 |
0123736 |
LIFTER LEVER |
| 1 |
0173737 |
POWER TILT KIT |
| 2 |
0320248 |
RONDELLE, écrou |
| 3 |
0123078 |
SCREW, Bracket mounting upper |
| 5 |
0306503 |
SCREW, Short |
| 6 |
0307708 |
RONDELLE GROWER |
| 7 |
0312455 |
BOLT,Throttle lever retainer |
| 9 |
0121837 |
BUSHING, Upper pivot pin |
| 10 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 11 |
0121840 |
PIN, Pivot, upper |
| 12 |
0303886 |
LOCKWASHER |
| 17 |
0127235 |
LOWER SUPPORT BRACKET This part replaces 0123735. |
| 18 |
0121836 |
BUSHING, Lower pivot pin |
| 19 |
0121838 |
PIN, Lower pivot |
| 21 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 22 |
0123732 |
FILLER BLOCK, Lower |
| 25 |
0900696 |
WASHER |
| 27 |
0311847 |
PLATE, Switch |
| 28 |
0172539 |
CABLE ASSEMBLY |
| 33 |
0825886 |
TERMINAL |
| 35 |
0173946 |
HYDRAULIC PUMP |
| 36 |
0174231 |
PISTON ROD & END HEAD ASSY. |
| 37 |
0121986 |
O RING ASSEMBLY |
| 39 |
0173946 |
HYDRAULIC PUMP This part replaces 0173947. |
| 42 |
0173945 |
VALVE BODY |
| 44 |
0124097 |
PLUG |
| 50 |
0309357 |
CONNECTOR |
| 54 |
0123733 |
FILLER BLOCK, Upper |
| 55 |
0121839 |
BUSHING Upper pivot pin |
| 57 |
0123896 |
SPRING |
| 0173944 |
0173944 |
MOTOR ASSEMBLY |
