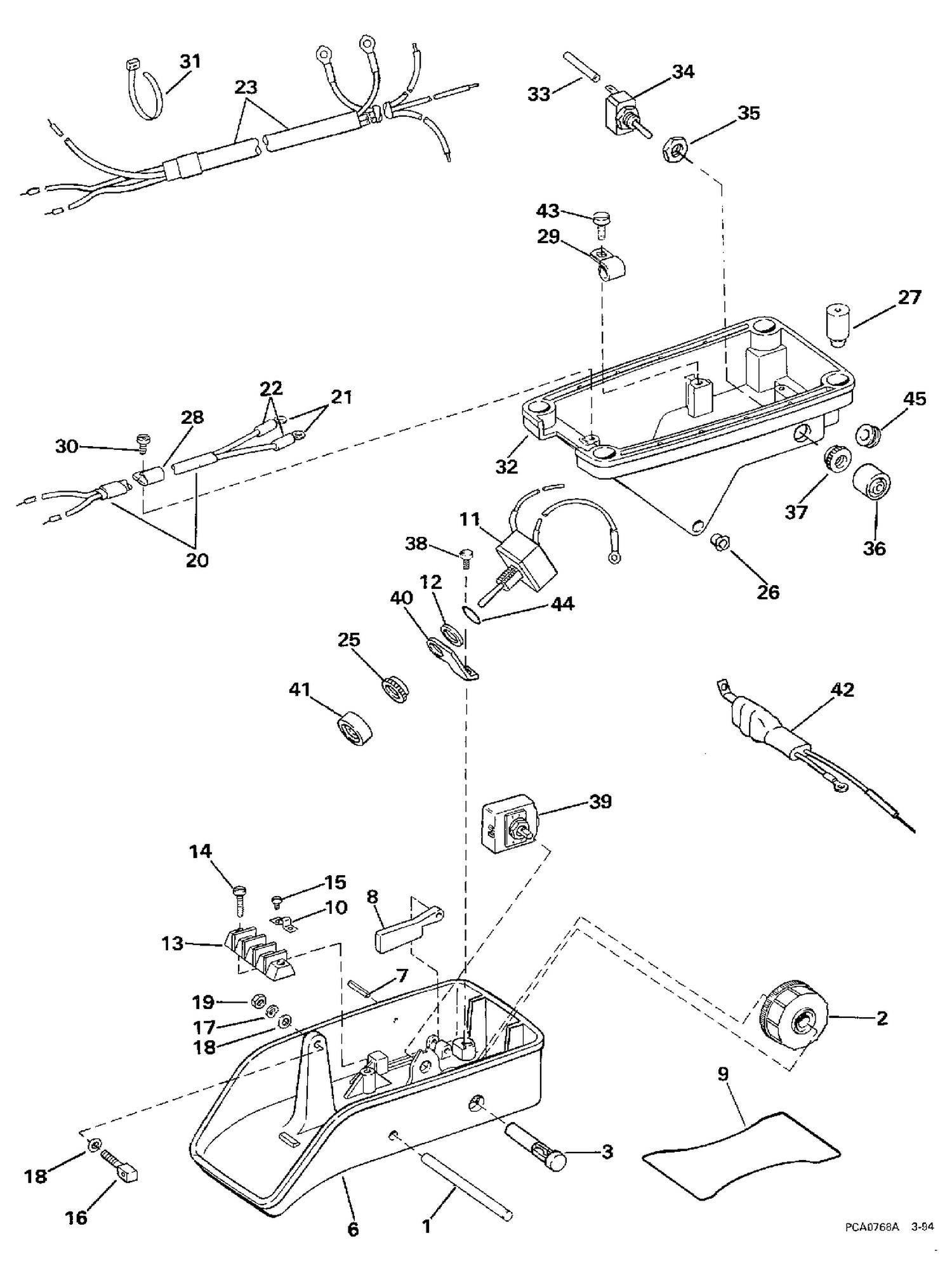

| Ref | Part Number | Description |
|---|
| 1 |
0319524 |
HINGE PIN, Pedal to base |
| 2 |
0332986 |
WHEEL, Speed control |
| 3 |
0338080 |
SHAFT, Bearing control wheel |
| 6 |
0116425 |
PEDAL ASSY. |
| 7 |
0319527 |
ROLL PIN, Lever |
| 8 |
0319519 |
LEVER ON/OFF SWITCH |
| 9 |
0116416 |
NON SLIP TAPE, Pedal |
| 10 |
0315004 |
FIL DE LIAISON, bornier |
| 11 |
0397985 |
ON/OFF SWITCH |
| 13 |
0512855 |
TERMINAL BLOCK, Pedal |
| 14 |
0319613 |
SCREW, Terminal block mounting |
| 15 |
0329182 |
VIS, borne |
| 16 |
0338175 |
PIVOT PIN, Cable to pedal |
| 18 |
0302474 |
WAHSER,Link |
| 20 |
0398106 |
CABLE ASSY., Batt 12V |
| 21 |
0512902 |
RING TERMINAL |
| 23 |
0583345 |
CABLE ASSY., Batt., 24V |
| 25 |
0324648 |
NUT, Switch to bracket |
| 26 |
0319518 |
BUSHING |
| 27 |
0319522 |
BUMPER, Base |
| 28 |
0333441 |
CLAMP, Battery cable 12V |
| 29 |
0333441 |
CLAMP, Battery cable 12V |
| 29 |
0334597 |
CLAMP, Battery cable, 12v |
| 30 |
0319615 |
SCREW, Clamp |
| 32 |
0332794 |
BASE, Foot control |
| 34 |
0392219 |
SPEED SELECTOR SWITCH |
| 38 |
0332343 |
SCREW |
| 39 |
0397456 |
ROTARY SWITCH ASSY. |
| 40 |
0332339 |
BRACKET, Switch to pedal |
| 41 |
0324609 |
COVER, On/off switch |
| 42 |
0583343 |
ARC SUPPRESSION ASSY,. 24v |
| 43 |
0319615 |
SCREW, Clamp |
