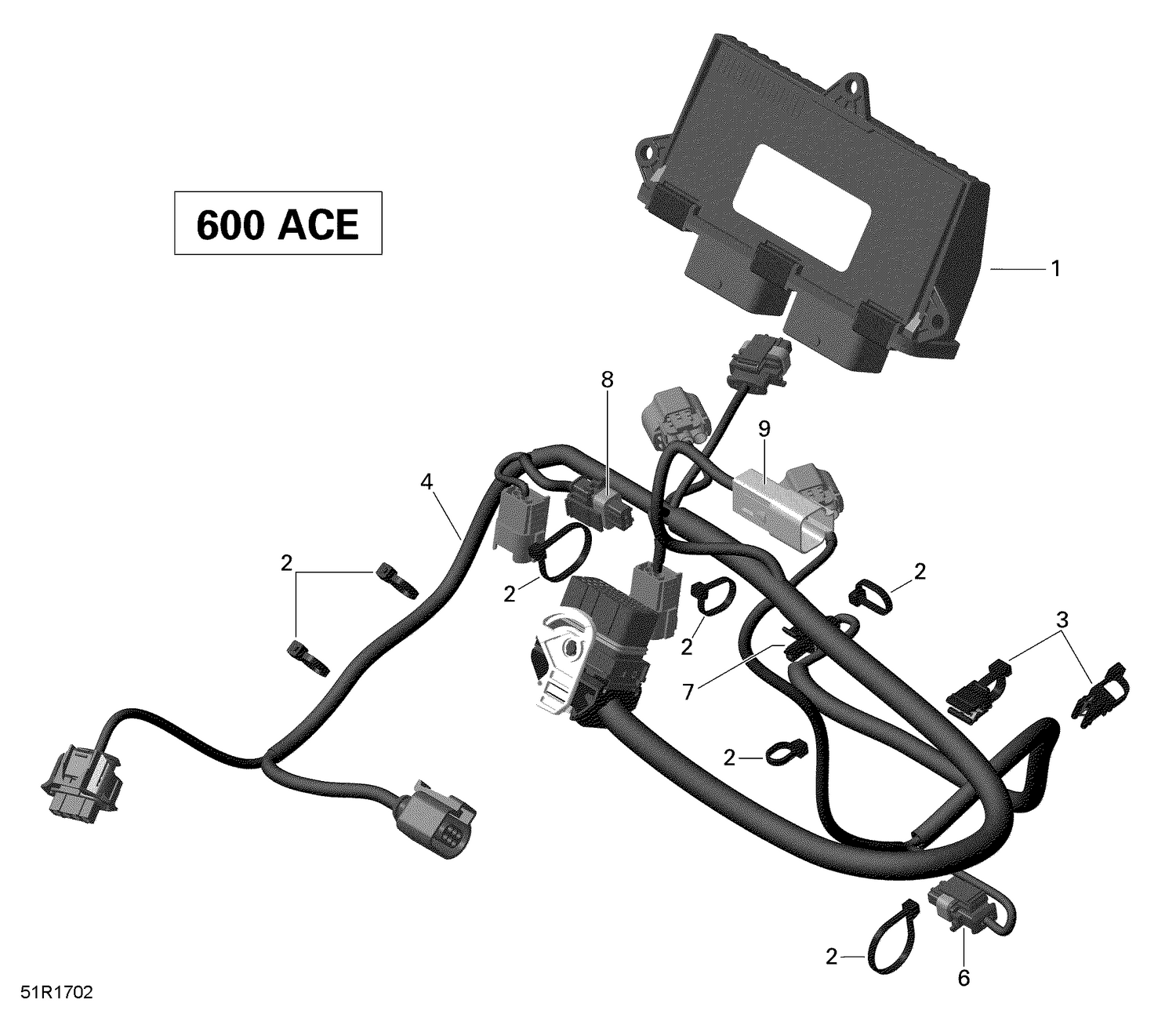

10- Engine Harness and Electronic Module - 600 ACE

10- Engine Harness and Electronic Module - 600 ACE

Parts (6)

RefPart NumberDescription
1 420666766 Electronic Box
2 420866714 Tie Rap
3 420951650 Cable Clamp 150mm
6 278001005 Male Housing, 2 Circuits
7 278001012 Male Housing, 1 Circuit
8 278001005 Male Housing, 2 Circuits
