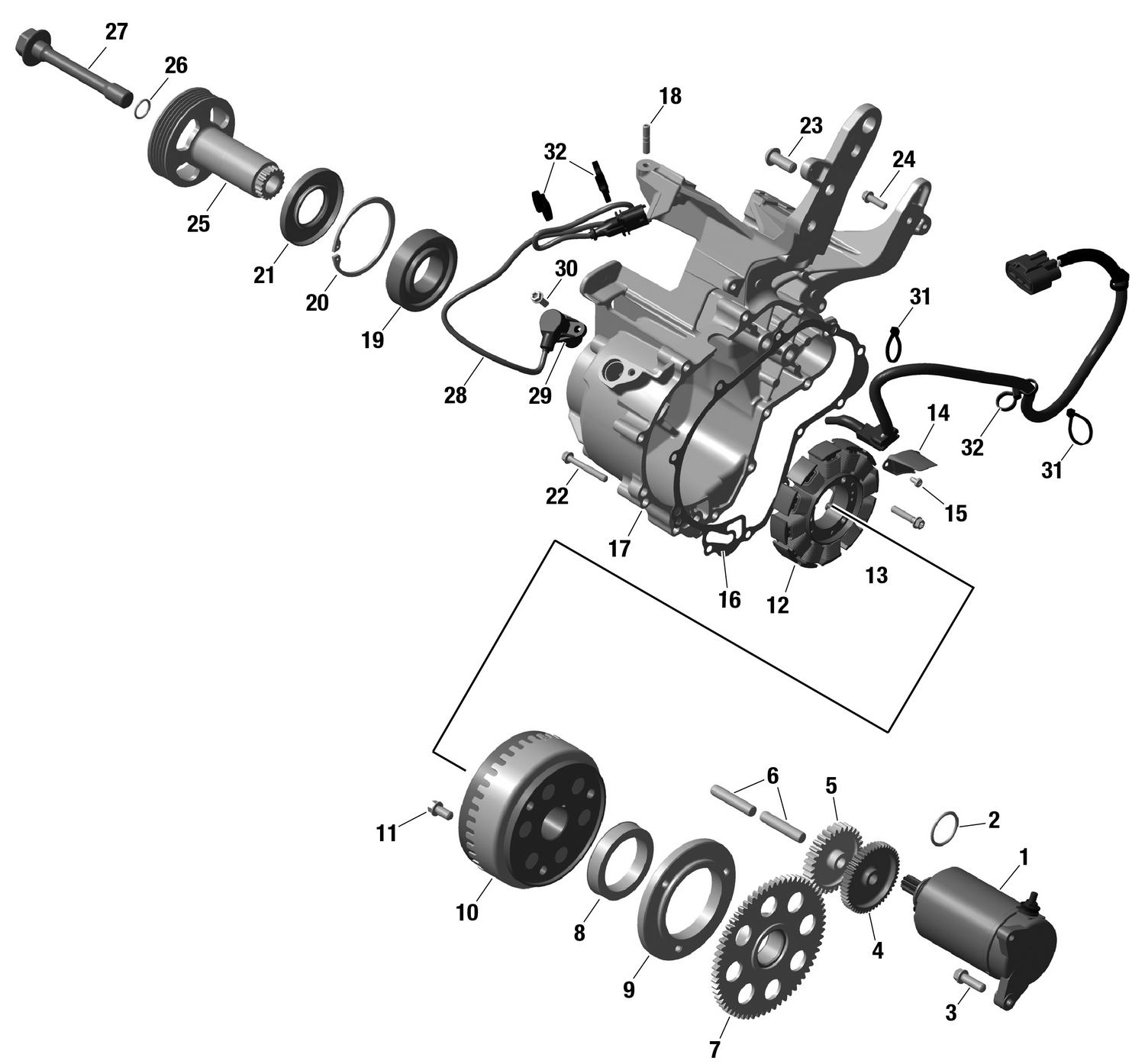

01- ROTAX - Magneto and Electric Starter
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420440372 | Torx Flange Screw M8 X 25 |
| 4 | 420634741 | Starter Double Gear 11/49 T |
| 5 | 420634605 | Starter Intermediate Gear, 30 Teeth |
| 6 | 420229302 | Location Pin 10 M6x50 |
| 7 | 420434235 | Free Wheel Gear, 64 Teeth |
| 8 | 420659113 | Sprag Clutch |
| 9 | 420659263 | Sparg Clutch Housing |
| 10 | 420685706 | Magneto Flywheel 850W |
| 11 | 420440854 | Torx Flange Screw M8 X 16 |
| 12 | 420686365 | Stator Ass'y 850W |
| 13 | 420440647 | Torx Flange Screw M6 X 30 |
| 14 | 420251889 | Interior Cable Support Ass'y |
| 15 | 420240196 | Phillips Screw M4 X 8 This part replaces 420240195. |
| 16 | 420651203 | Gasket This part replaces 420651201. |
| 19 | 420632745 | Ball Bearing |
| 20 | 420845790 | Retaining Ring |
| 22 | 420440324 | Torx Flange Screw M6 X 45 |
| 23 | 420641030 | Rounded Head Screw M10 X 25 |
| 24 | 420441835 | Torx Flange Screw M6 X 20 |
| 25 | 420980830 | Drive Pulley |
| 26 | 420631240 | O-Ring |
| 27 | 420841878 | Collar Screw M16 X 110 |
| 29 | 420431580 | O-Ring |
| 30 | 420440162 | Torx Flange Screw M6 X 16 |
| 31 | 420866722 | Tie Wrap 142X 3.2mm |
