Parts Catalog

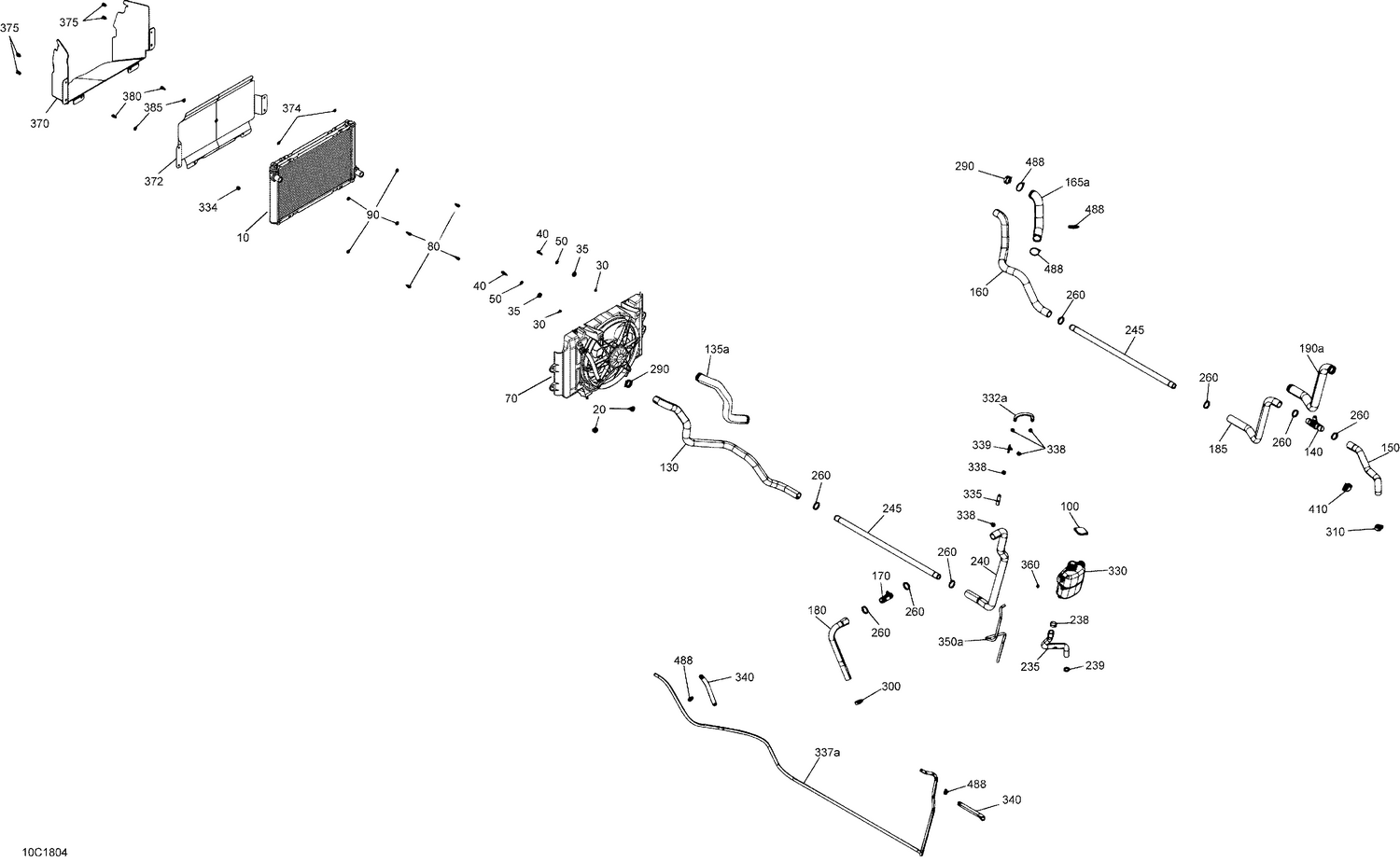

01- Cooling Defender Package XMR

Parts (43)

Ref	Part Number	Description
10	709200951	Radiator This part replaces 709200533.
20	709200285	Grommet
30	293900105	Bushing
35	709000582	Grommet This part replaces 293720053.
40	207662544	Hex. Flange Screw M6 X 25
50	234062410	Flat Washer 6 mm
70	709200534	Fan Ass'y
80	207662044	Hex. Flange Screw M6 X 20
90	234062410	Flat Washer 6 mm
100	709200207	Radiator Pressure Cap
130	709200537	Radiator Inlet Hose
135	219704428	Tubing 35 MM 1000MM Long
140	509000219	T-Fitting
150	709200545	Pump Hose
160	709200914	Hose_Thermostat Out This part replaces 709200539.
170	509000510	T-Fitting
180	709200915	Hose Engine Out This part replaces 709200540.
185	709200916	Hose Engine In This part replaces 709200541.
220	709200581	Thermostat Housing
230	709200299	Hose
235	709200918	Hose Coolant Tank Out This part replaces 709200582.
238	293650165	Oetiker Gear Clamp
239	509000442	Oeticker Gear Clamp, 25.6-706R
240	709200917	Hose Thermostat in This part replaces 709200544.
256	709200913	Thermostat Hose This part replaces 709200538.
260	509000162	Gear Clamp
290	293650166	Norma Spring Clamp
330	709201323	Coolant Tank This part replaces 709200412.
332	219704416	Was 415129508 Bleeder Hose
334	293650025	Oetiker Gear Clamp
335	709200606	Bleeding Hose
338	293650047	Crimp Clamp, 15.3-706R
339	293710059	Y-Fitting
340	219704408	Tubing 16 Mm 1000Mm Long
360	414554800	Spring Clamp
370	705012573	Deflector
372	708201442	Protective Grille This part replaces 708200609.
374	517306751	Clip This part replaces 517302674.
375	293150230	Tuflok Plastic Rivet This part replaces 293150089.
380	207662044	Hex. Flange Screw M6 X 20
385	234062410	Flat Washer 6 mm
788	293750001	Tie Wrap 94 mm
788	293750008	Tie Wrap 368 mm
