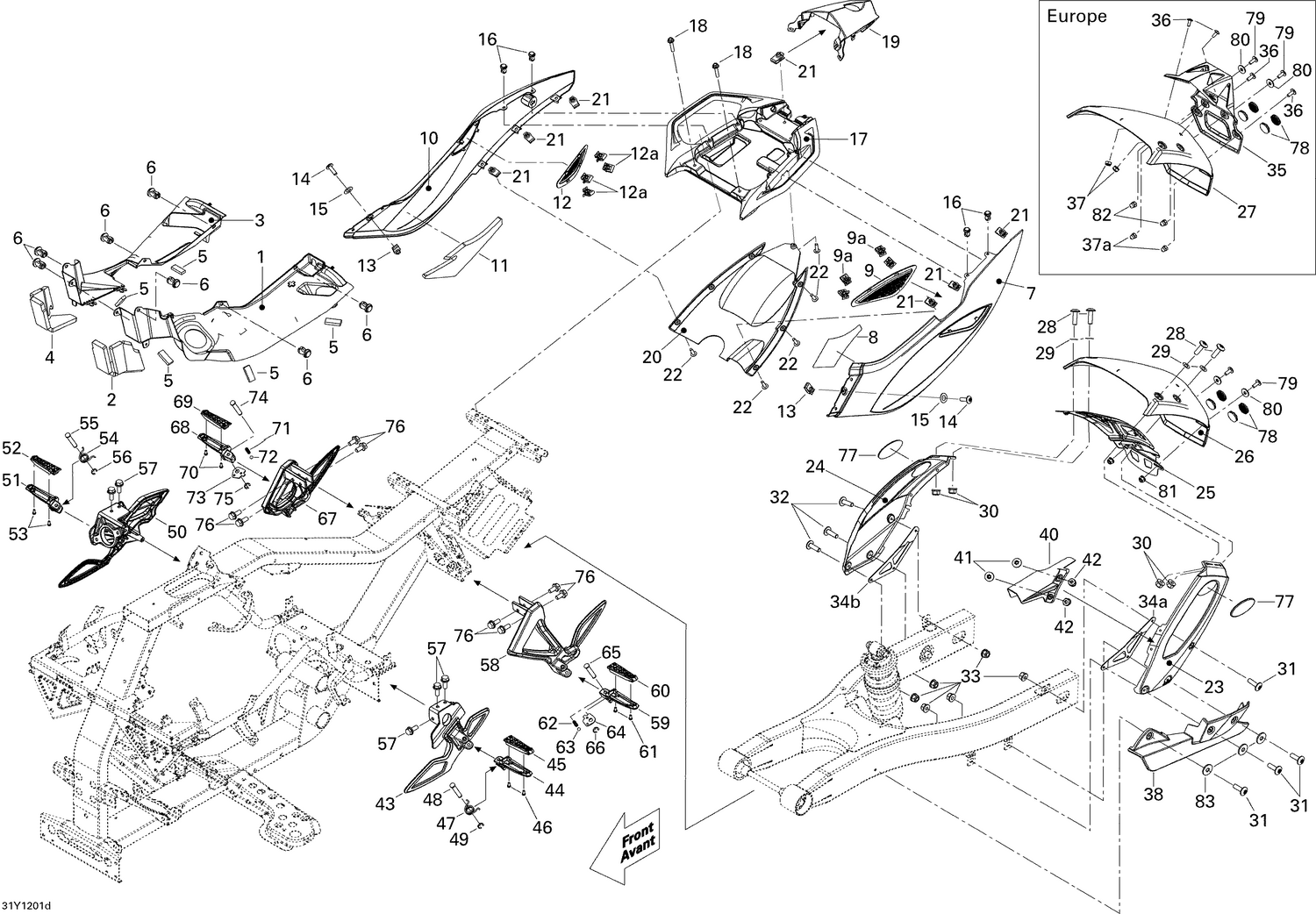

09- Body And Accessories Rear
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705006275 | TANK COVER LH - Call your local BRP dealership |
| 2 | 705002920 | LH FOAM - Call your local BRP dealership |
| 3 | 705002546 | RH GAS TANK COVER - Call your local BRP dealership |
| 4 | 705002921 | RH DEFLECTOR FOAM - Call your local BRP dealership |
| 5 | 219704364 | Neoprene Seal (1PAC=3M) |
| 6 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 8 | 705002508 | LH Heat Reflective Sheet |
| 9 | 705001542 | LH REAR GRILL - Call your local BRP dealership |
| 9a | 517302785 | Edge Clip |
| 11 | 705002509 | BLACK RH REAR PANEL FOAM - Call your local BRP dealership |
| 12 | 705001544 | RH REAR GRILL - Call your local BRP dealership |
| 12a | 517302785 | Edge Clip |
| 13 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 | 250000350 | Torx Truss Screw M6 X 20 |
| 15 | 705003207 | Plastic Washer |
| 16 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 17 | 705009315 | Passenger Handle This part replaces 705001550. |
| 18 | 207584034 | Hex. Flange Screw, Scotch Grip |
| 20 | 705001551 | UNDER TAIL COVER - Call your local BRP dealership |
| 21 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 22 | 250000350 | Torx Truss Screw M6 X 20 |
| 23 | 705006084 | LH Rear Fender Support This part replaces 705002503. |
| 24 | 705006085 | RH REAR FENDER SUPPORT - Call your local BRP dealership This part replaces 705002501. |
| 25 | 705003031 | CENTRAL REAR FENDER SUPPORT - Call your local BRP dealership |
| 28 | 250000303 | Torx Truss Screw M6 X 20 |
| 29 | 705003207 | Plastic Washer |
| 30 | 233261494 | Hex. Flange Elastic Nut M6 |
| 31 | 250000350 | Torx Truss Screw M6 X 20 |
| 32 | 250000350 | Torx Truss Screw M6 X 20 |
| 33 | 233261494 | Hex. Flange Elastic Nut M6 |
| 34a | 705002980 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 34b | 705002981 | RH Reinforcement Plate |
| 38 | 705002092 | Lower Belt Guard |
| 40 | 705007213 | UPPER BELT GUARD - Call your local BRP dealership This part replaces 705001555. |
| 41 | 250000349 | Torx Truss Screw M6 X 10 |
| 42 | 232361493 | Domed Nut M6 |
| 45 | 705002359 | Rubber Pad |
| 46 | 250000099 | Allen Plastite Screw #12 |
| 47 | 705001701 | Spring |
| 48 | 705001702 | Retainer Pin |
| 49 | 705601030 | Circlip |
| 52 | 705002359 | Rubber Pad |
| 53 | 250000099 | Allen Plastite Screw #12 |
| 54 | 705003362 | Spring |
| 55 | 705001702 | Retainer Pin |
| 56 | 705601030 | Circlip |
| 57 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 60 | 705002359 | Rubber Pad |
| 61 | 250000099 | Allen Plastite Screw #12 |
| 62 | 705001704 | Spring |
| 63 | 705001705 | Ball |
| 64 | 705001706 | Indexation Plate |
| 65 | 705001702 | Retainer Pin |
| 66 | 705601030 | Circlip |
| 69 | 705002359 | Rubber Pad |
| 70 | 250000099 | Allen Plastite Screw #12 |
| 71 | 705001704 | Spring |
| 72 | 705001705 | Ball |
| 73 | 705001706 | Indexation Plate |
| 74 | 705001702 | Retainer Pin |
| 75 | 705601030 | Circlip |
| 76 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 78 | 293740028 | Dual Lock Velcro Washer 3/4" |
| 79 | 250000303 | Torx Truss Screw M6 X 20 |
| 80 | 234062600 | Flat Washer M6, Stainless |
