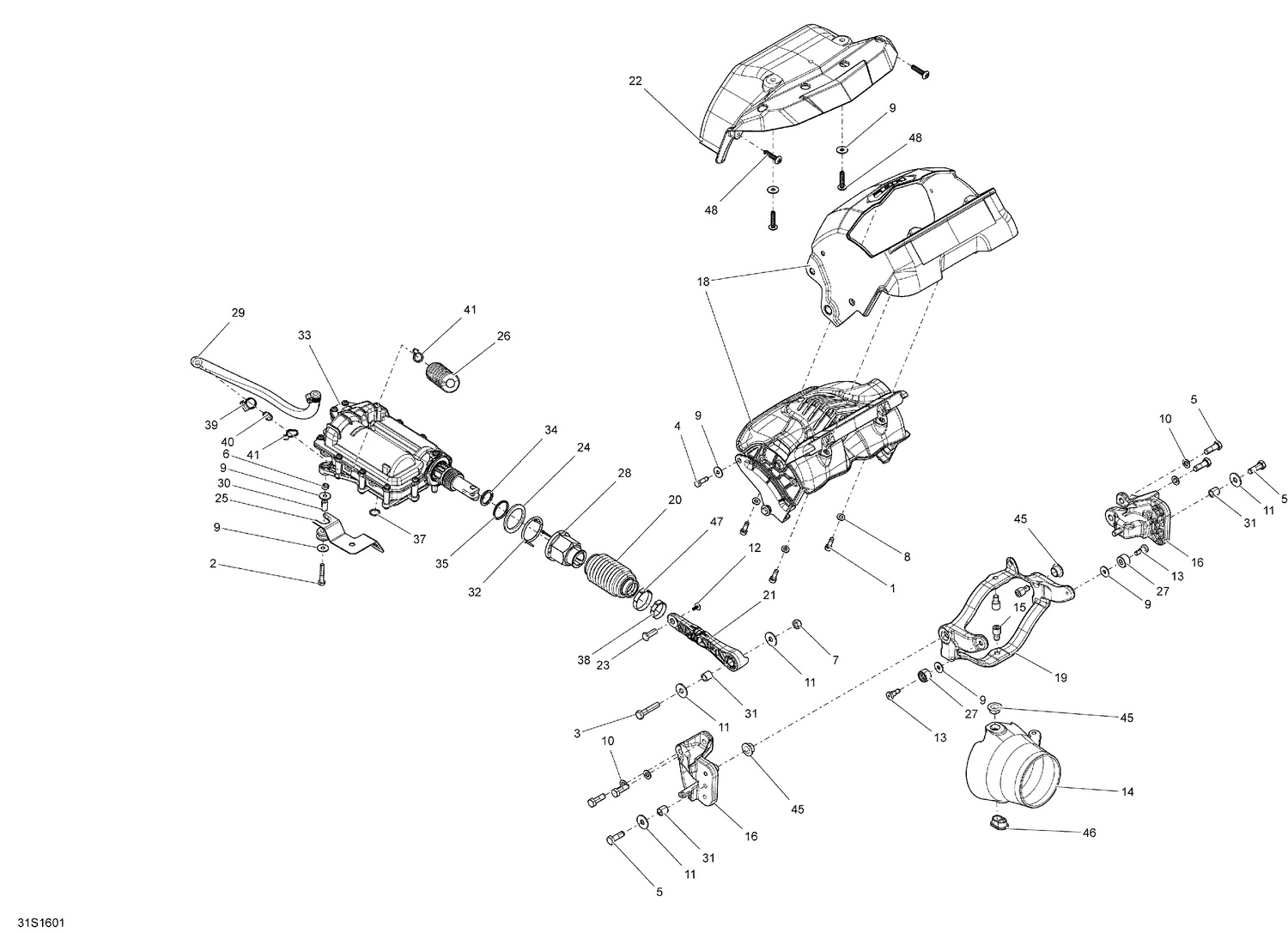

05- Reverse
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 2 | 207063560 | Hex. Screw M6 X 35 |
| 3 | 207084060 | Hex. Screw M8 X 40 |
| 4 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 5 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 6 | 232561200 | Brass Elastic Stop Nut M6 |
| 7 | 232581200 | Hex. Elastic Nut M8 Brass |
| 8 | 234061600 | Stainless Flat Washer M6 |
| 9 | 234062600 | Flat Washer M6, Stainless |
| 10 | 234080600 | Flat Washer M8, Stainless |
| 11 | 234082600 | Flat Washer 8 mm, Stainless |
| 12 | 250000565 | Hexalob Screw M4 X 10 |
| 13 | 250000775 | Screw-Socket Shoulder M8X8 |
| 14 | 267000705 | Nozzle |
| 15 | 268000141 | Socket Head Screw M8 X 13 |
| 16 | 268000163 | LH Reverse Support |
| 16 | 268000166 | RH Reverse Support |
| 19 | 268000179 | Trimming Ring |
| 20 | 268000186 | Boot |
| 21 | 268000187 | Reverse Rod |
| 22 | 268000189 | Guard |
| 23 | 268000309 | Shoulder Pin This part replaces 268000207. |
| 24 | 268000208 | Gasket |
| 25 | 268000210 | Actuator Support |
| 26 | 268000211 | Inner Boot |
| 27 | 295501160 | Roller Bushing Kit |
| 28 | 268000308 | IBR Nut This part replaces 268000267. |
| 29 | 219704420 | Was 509000407 Hose 8 mm |
| 30 | 271001020 | Spacer |
| 31 | 271001039 | Spacer |
| 32 | 277001977 | Rubber Gasket |
| 33 | 278003606 | Actuator This part replaces 278003292. |
| 34 | 279000108 | O-Ring |
| 35 | 293300107 | O-Ring |
| 37 | 293300187 | O-Ring |
| 38 | 293650099 | Crimp Clamp |
| 39 | 293650171 | Tridon Gear Clamp |
| 40 | 293710157 | Fitting-Straig |
| 41 | 293750002 | Tie Wrap 142 mm |
| 45 | 293900007 | Venturi Bushing |
| 46 | 293900010 | Plastic Bushing |
| 47 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
