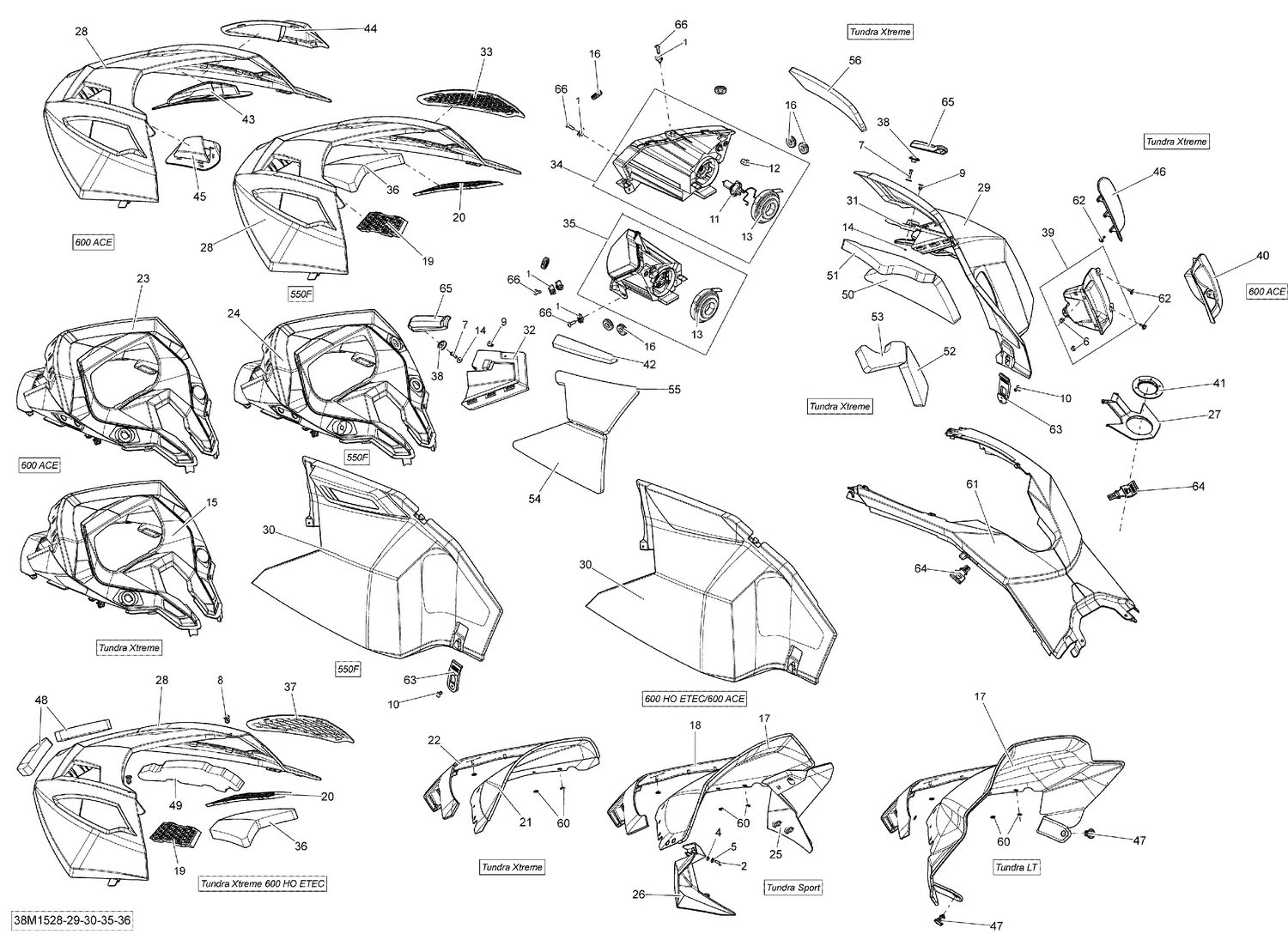

09- Hood _38M1529
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2 | XXX | Not Available As Spare Parts |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 275500241 | Black, Cap |
| 7 | 293150014 | Pop Rivet 3/16" |
| 8 | XXX | Not Available As Spare Parts |
| 9 | 293150104 | Pop Rivet 3/16" |
| 10 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 11 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 12 | 515176498 | Cap |
| 13 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 14 | 517124300 | Washer |
| 15 | XXX | Not Available As Spare Parts |
| 16 | 517303756 | Grommet |
| 17 | 517305721 | Windshield (20'') |
| 18 | XXX | Not Available As Spare Parts |
| 19 | 517303804 | LH Hood Grille |
| 20 | 517303805 | RH Hood Grille |
| 21 | XXX | Not Available As Spare Parts |
| 22 | 860200228 | LOW WINDSHIELD SUPPORT - Call your local BRP dealership |
| 23 | XXX | Not Available As Spare Parts |
| 24 | 517303999 | Indicator Support |
| 25 | XXX | Not Available As Spare Parts |
| 26 | XXX | Not Available As Spare Parts |
| 27 | 517304027 | Deep Black, Cap Console |
| 28 | 517305014 | Hood |
| 29 | 517305016 | RH Panel |
| 30 | 517305017 | LH Panel |
| 31 | 517304090 | RH Insert |
| 32 | 517304092 | LH Panel Insert |
| 33 | 517304187 | RH Lateral Hood Grille |
| 34 | 517304194 | RH Headlamp Ass'y |
| 35 | 517304195 | LH Headlamp Ass'y |
| 36 | 517304877 | Foam Hood |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 517304320 | Anchor Link |
| 39 | 517304322 | Black, RH Console |
| 40 | XXX | Not Available As Spare Parts |
| 41 | 517304518 | Console Nut |
| 42 | 517304880 | Foam |
| 43 | XXX | Not Available As Spare Parts |
| 44 | XXX | Not Available As Spare Parts |
| 45 | XXX | Not Available As Spare Parts |
| 46 | XXX | Not Available As Spare Parts |
| 47 | 517304744 | Button |
| 48 | XXX | Not Available As Spare Parts |
| 49 | XXX | Not Available As Spare Parts |
| 50 | 517304870 | Foam |
| 51 | 517304871 | Foam |
| 52 | XXX | Not Available As Spare Parts |
| 53 | XXX | Not Available As Spare Parts |
| 54 | 517304874 | Foam |
| 55 | 517304875 | Foam |
| 56 | XXX | Not Available As Spare Parts |
| 60 | 732610072 | Push Nut |
| 61 | 517305015 | Console |
| 62 | 250000725 | Screw M4 X 16 |
| 63 | 517304999 | Rear Panel Latch |
| 64 | 517304093 | Center Panel Latch |
| 65 | 517305186 | Front Latch Panel |
