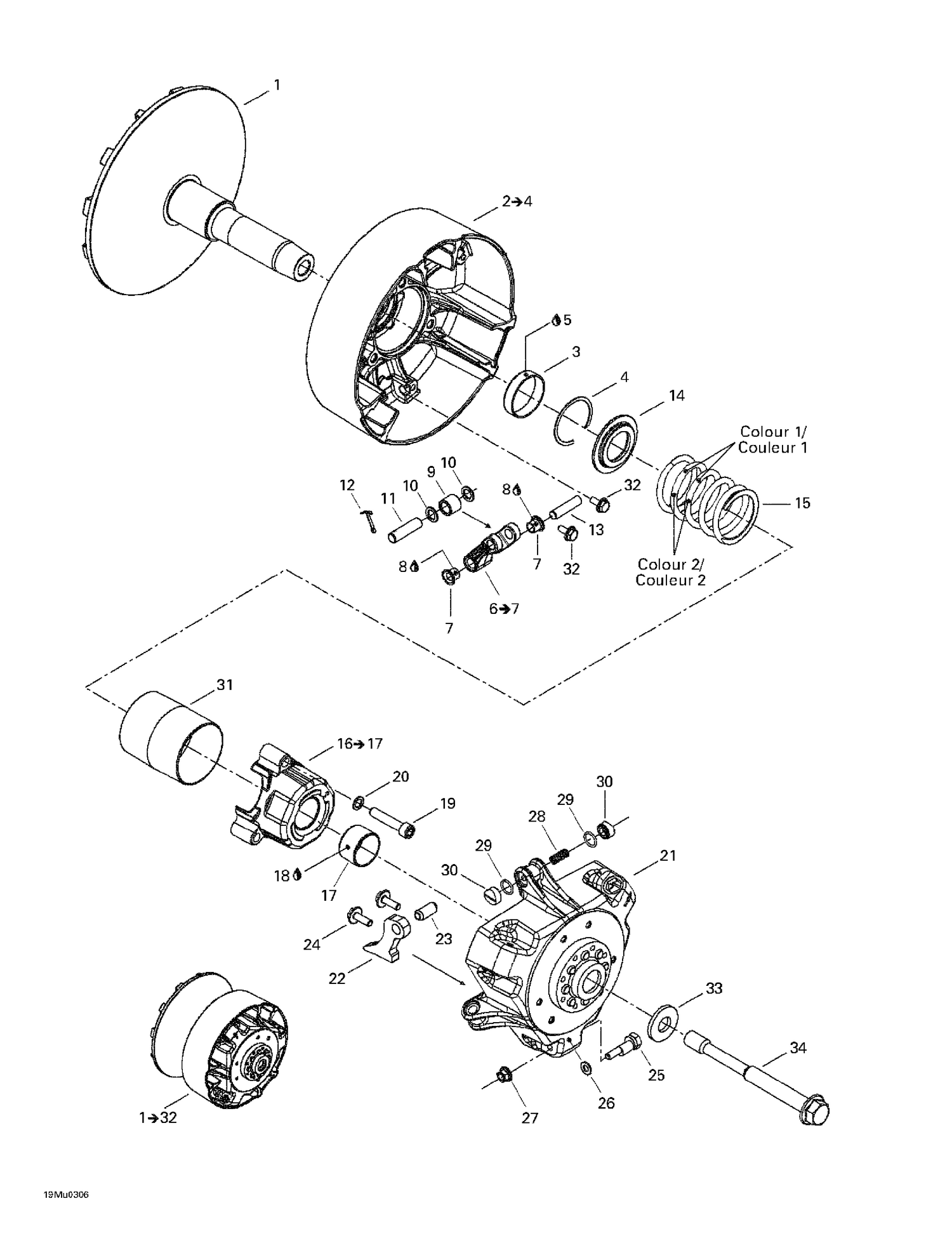

05- Drive Pulley
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417222593 | Fixed Flange |
| 3 | 417222758 | Bushing This part replaces 417006900. |
| 4 | 293370037 | Circlip |
| 5 | 413703100 | Loctite 609, 10 ml |
| 7 | 417004305 | Bushing |
| 8 | 413408300 | Loctite, Black Max, 3 ml |
| 9 | 417222947 | Roller This part replaces 417003900. |
| 10 | 417004302 | Stopper Washer |
| 11 | 417222594 | Pin |
| 12 | 250400060 | Cotter Pin This part replaces 732958001. |
| 13 | 417223164 | Lever Axle This part replaces 417009202. |
| 14 | 417222312 | Spring Seat |
| 15 | 414817500 | CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership |
| 17 | 417009204 | Bushing |
| 18 | 413703100 | Loctite 609, 10 ml |
| 19 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 20 | 250200009 | Lock Washer 8 mm |
| 21 | 417222530 | Governor Cup Assy |
| 22 | 417222569 | RAMPE 607 - Call your local BRP dealership |
| 23 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 24 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 25 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 26 | 417005600 | Washer |
| 27 | 233061414 | Hex. Flange Nut M6 |
| 28 | 417005700 | Spring |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe This part replaces 417222362. |
| 31 | 417009205 | Guard |
| 32 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip This part replaces 210361296. |
| 33 | 250200006 | Spring Washer 14 mm |
