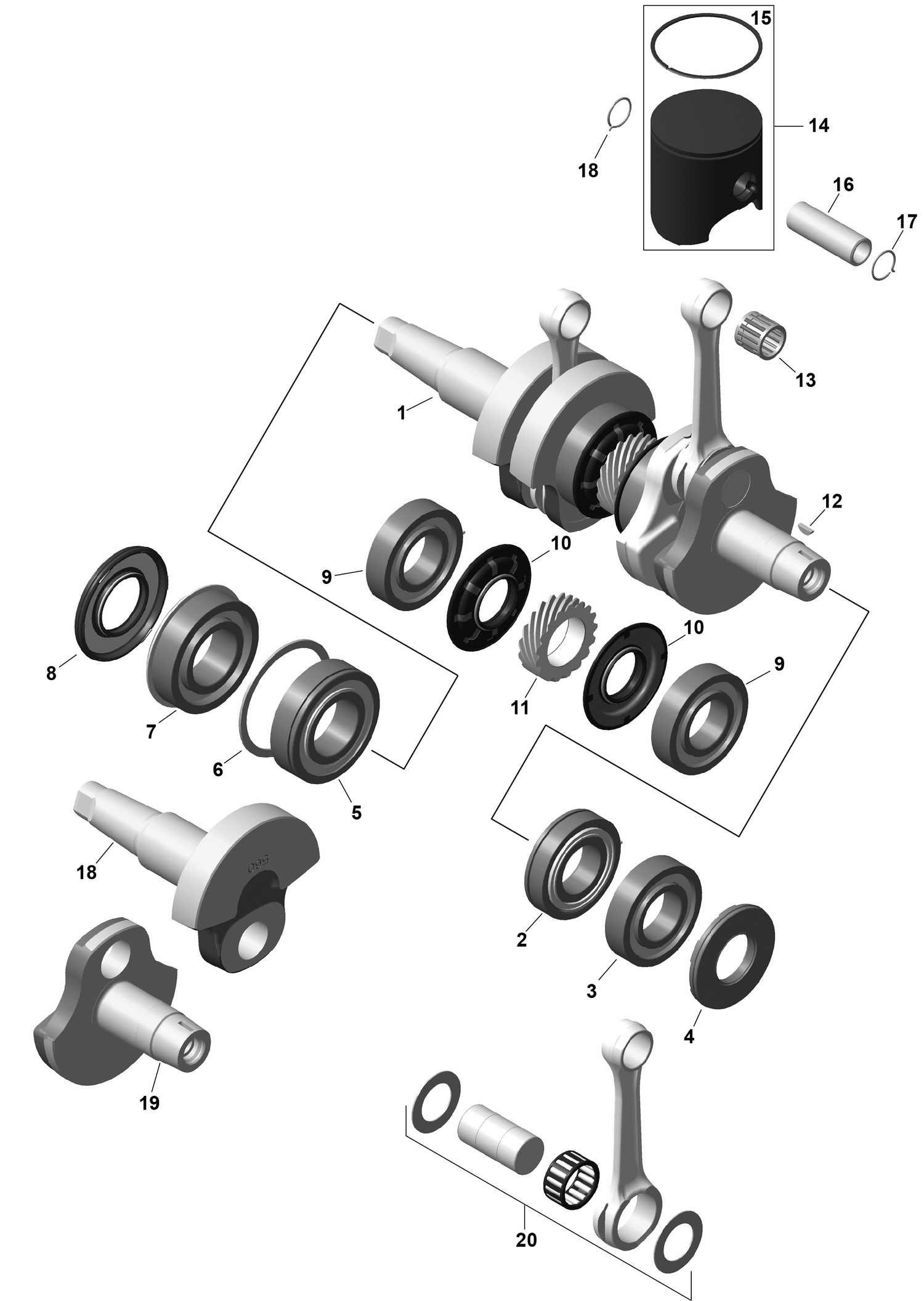

01- ROTAX - Crankshaft and Pistons
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832176 | Bearing_Ball |
| 6 | 420926190 | Retaining disk |
| 9 | 420931455 | Oil seal |
| 10 | 420834566 | Central Gear |
| 11 | 420246015 | Woodruff Key |
| 13 | 420832445 | Piston pin bearing |
| 15 | 420815470 | Semi Trapez Ring |
| 16 | 420916412 | Piston Pin |
| 18 | 420819560 | Crankshaft PTO Side |
| 19 | 420819570 | Crankshaft MAG Side |
| 20 | 420890958 | Rod repair kit (PTO side) |
