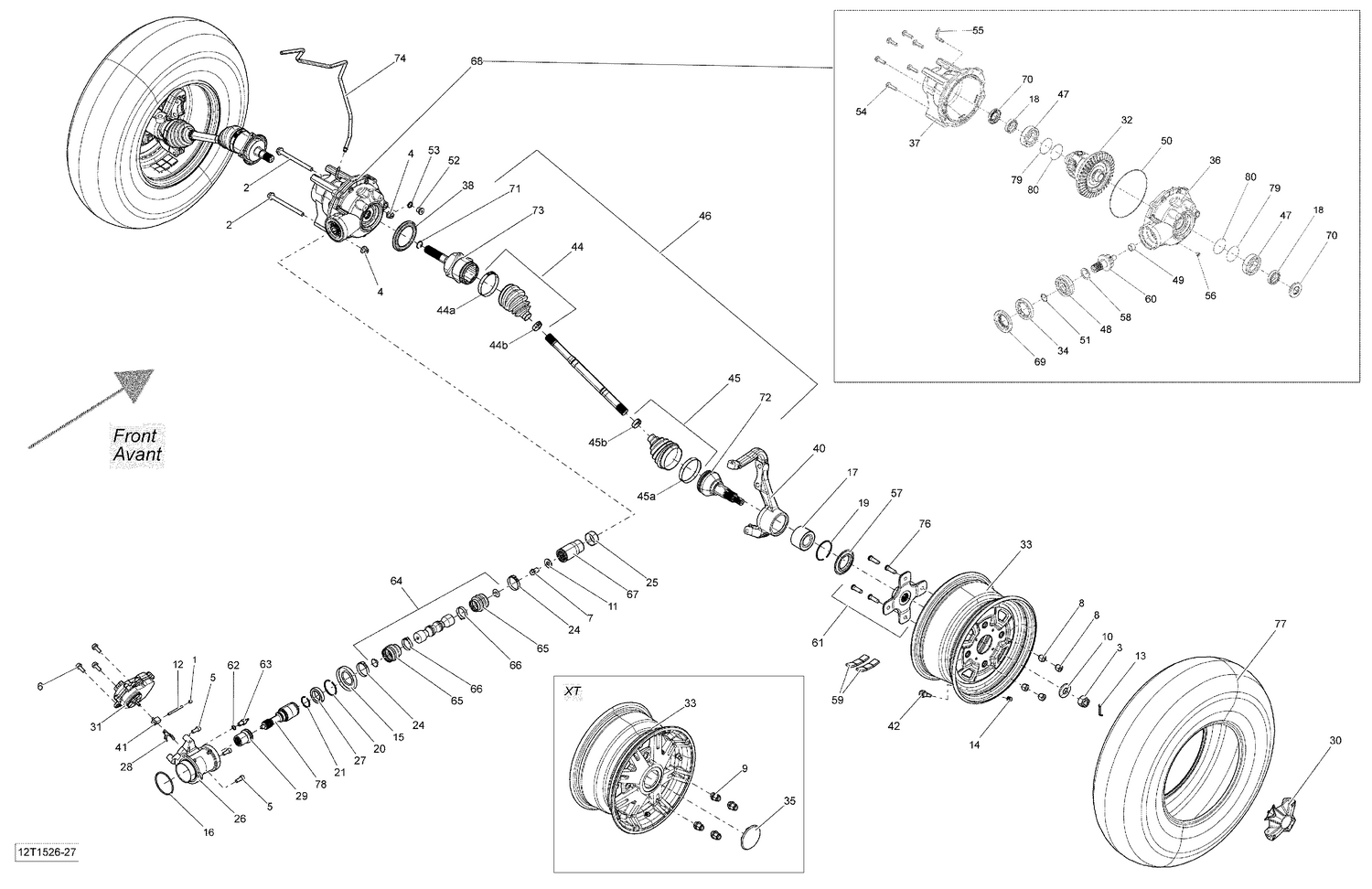

07- Drive System, Front _12T1526
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 206580890 | Pressure Screw M8 X 8 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 |
| 3 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 |
| 5 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip |
| 6 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 7 | 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 8 | 250100042 | Steel Wheel Nut |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 11 | 250200102 | Flat Washer M12 |
| 12 | 250400025 | Dowell Pin |
| 13 | 250400036 | Cotter Pin |
| 14 | 293000110 | Valve Cap |
| 15 | 293250138 | Oil Seal |
| 16 | 293300091 | O-Ring |
| 17 | 293350150 | Ball Bearing This part replaces 293350040. |
| 18 | 293350044 | Ball Bearing |
| 19 | 293370019 | Circlip |
| 20 | 293370029 | Circlip |
| 21 | 293370030 | Circlip |
| 24 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 25 | 705400036 | Wear Ring |
| 26 | 705400169 | HOUSING - Call your local BRP dealership |
| 27 | 705400249 | Ball Bearing |
| 28 | 705401553 | Shifter Lever Plate This part replaces 705400387. |
| 29 | 705400389 | Coupling Sleeve |
| 30 | 705400563 | Wheel Cap |
| 31 | 715900502 | Actuator Ass'Y This part replaces 705400581. |
| 32 | 703500871 | Ens Differentiel*Differential Kit This part replaces 705400645. |
| 33 | XXX | Not Available As Spare Parts |
| 34 | 705401603 | Nut This part replaces 705400661. |
| 35 | XXX | Not Available As Spare Parts |
| 36 | 705400761 | FRONT COVER - Call your local BRP dealership |
| 37 | 705400762 | FRONT COVER - Call your local BRP dealership |
| 38 | 705400780 | Wear Sleeve |
| 40 | 705400816 | LH Knuckle |
| 40 | 705400818 | RH Knuckle |
| 41 | 705402139 | Slider This part replaces 705400956. |
| 42 | 705400193 | Rim Valve With Cap |
| 44a | 715900284 | Oetiker Clamp, Large |
| 44b | 715900261 | Oetiker Clamp, Small |
| 45a | 715900282 | Oetiker Clamp |
| 45b | 715900283 | Oetiker Clamp, Small |
| 46 | 705401578 | LH Half Shaft This part replaces 705401109. |
| 46 | 705401579 | RH Half Shaft This part replaces 705401110. |
| 47 | 705401606 | Ball Bearing This part replaces 705500259. |
| 48 | 705500260 | Ball Bearing |
| 49 | 705500261 | Needle Bearing |
| 50 | 705500265 | Seal |
| 51 | 705500267 | O-Ring |
| 52 | 705500504 | Fill Level Plug |
| 53 | 705500506 | Copper Washer |
| 54 | 705401601 | Screw This part replaces 705500892. |
| 55 | 705500893 | VENT VALVE - Call your local BRP dealership |
| 56 | 705500894 | Drain Plug |
| 57 | 705501121 | Wear Sleeve |
| 58 | 705501162 | Pinion Gear Shim |
| 58 | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 60 | 705501588 | Engrenage 10 Dents - Appelez votre concessionnaire BRP local |
| 61 | 705501713 | LH WHEEL HUB ASSEMBLY - Call your local BRP dealership |
| 62 | 705601628 | Copper Washer This part replaces 705600310. |
| 63 | 710000324 | SWITCH - Call your local BRP dealership |
| 64 | 705400912 | Front Drive Axle Ass'y |
| 65 | 715900118 | Rubber Boot |
| 66 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 67 | 703500678 | Front Bushing Shaft Kit |
| 68 | 703500907 | Front Differential This part replaces 705401484. |
| 69 | 705401481 | Oil Seal |
| 70 | 705401618 | Gasket This part replaces 705401486. |
| 71 | 705401349 | Circlip Joint |
| 72 | 705401344 | CV Joint |
| 73 | 715900309 | JOINT-PLUNGING - Call your local BRP dealership This part replaces 705401352. |
| 73 | 715900310 | JOINT-PLUNGING - Call your local BRP dealership This part replaces 705401351. |
| 74 | 219704410 | Polyurethane Hose 10000Mm Long |
| 76 | 250300055 | Wheel Stud M10 X 1.25 |
| 78 | 705400917 | UNION SHAFT - Call your local BRP dealership |
| 79 | 705401604 | Shim This part replaces 703500288. |
