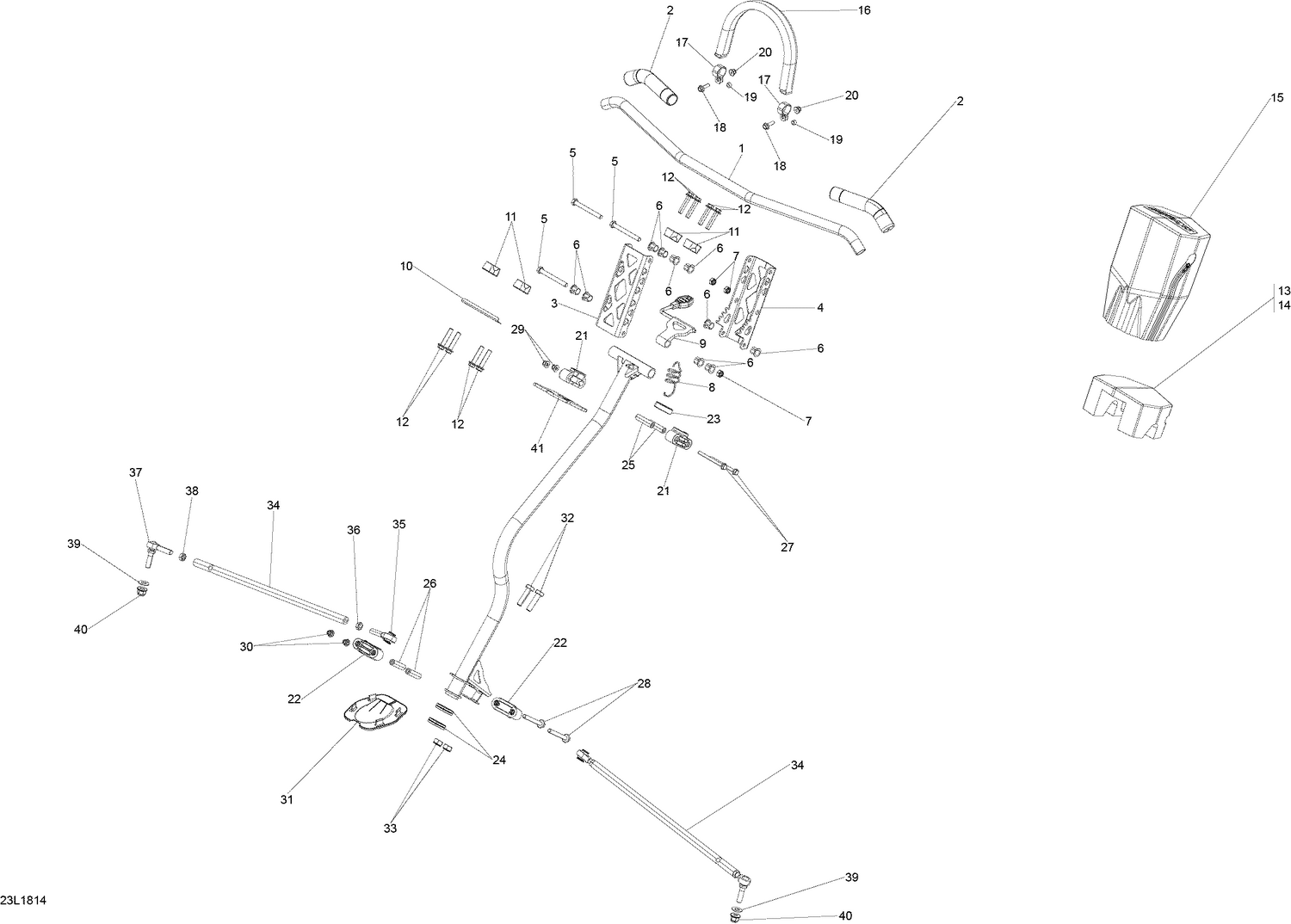

07- Steering — Parts Catalog

Ref	Part Number	Description
1	506152722	Handle Bar
2	506152483	Grip
11	506152751	Steering Support This part replaces 506152750.
12	250000285	Hex. Flange Screw M8 x 40
15	506152381	Steering Cover
16	506152115	Strap Ass'y
17	506152536	Black Support Plate
18	207662054	Hex. Flange Screw M6 X 20
19	506152156	Bushing
20	233261494	Hex. Flange Elastic Nut M6
21	506152508	Upper Half-Housing
22	506152217	Lower Half-Housing
23	506152509	Upper Anti-Vibration Gasket
24	506152518	Lower Vibration Ring
25	506152297	Housing Bushing
26	506152297	Housing Bushing
27	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
28	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
29	233261416	Elastic Flange Nut M6 X 1.0
30	233261416	Elastic Flange Nut M6 X 1.0
31	506152163	Plate
32	207004044	Hex. Screw M10 X 40
33	232500416	Elastic Stop Nut M10
34	506152498	Tie-Rod
35	506152081	LH Thread Ball Joint
36	250100016	LH Threaded Hex. Jam Nut M10
37	506152684	RH Threaded Ball Joint
38	732610010	RH Threaded Hex. Jam Nut M10
39	506152582	Washer
40	233201464	Hex. Flange Elastic M10 x 1.5
41	506152404	Cushion
