Parts Catalog

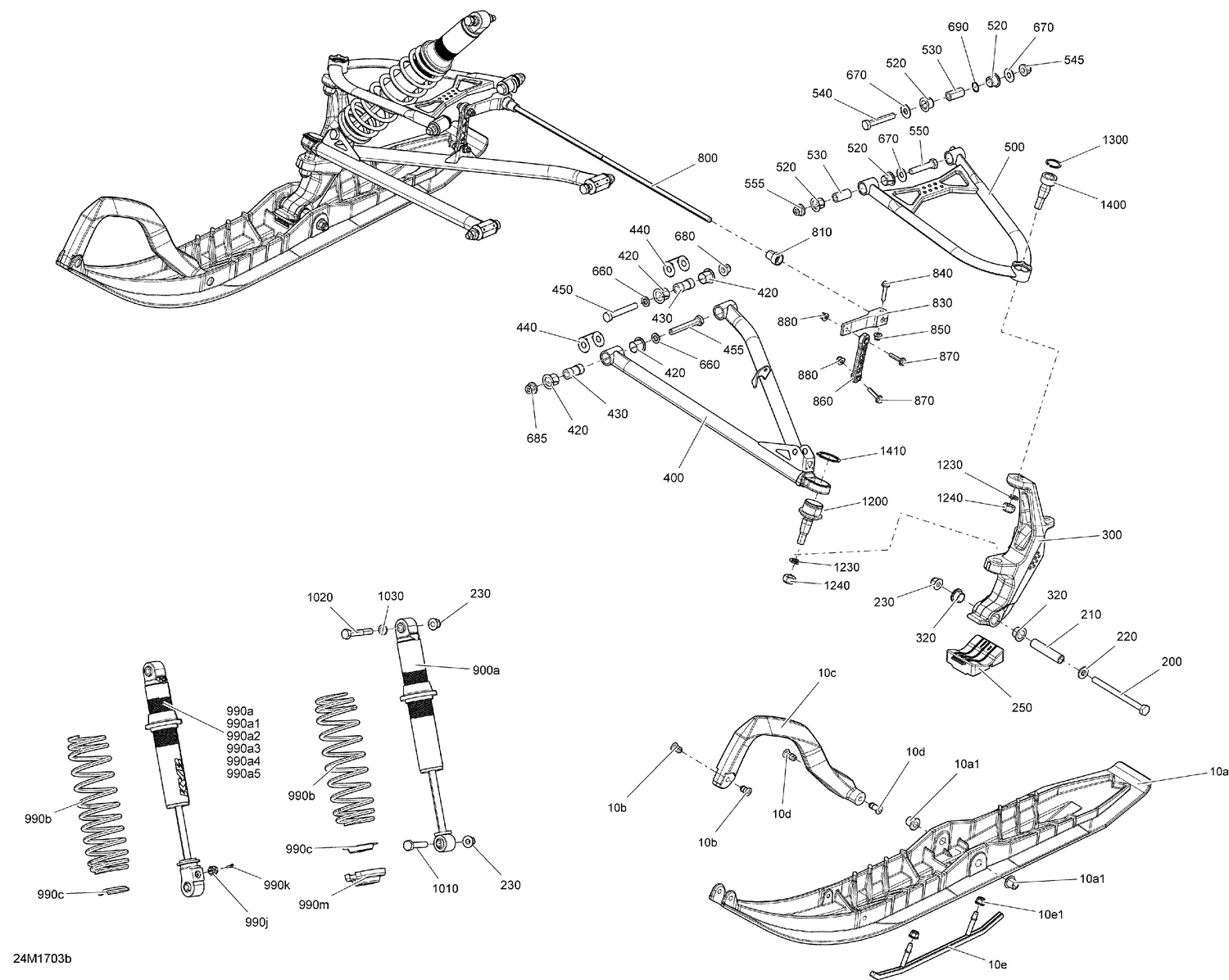

07- Front Suspension And Ski - Package Backcountry_Backcountry X

Parts (47)

Ref	Part Number	Description
10a1	505071781	Ski Bushing
10b	505071812	Retainer 17mm long
10c	505072976	Black, Handle
10d	505072133	Retainer 23mm Long
10e1	233281414	Hex. Flange Elastic Nut M8
200	250000703	Hex. Screw M10 X 130
210	506133300	Spacer
220	503192496	Washer
230	233201464	Hex. Flange Elastic M10 x 1.5
250	505072594	Ski Stopper
320	505072690	Leg Bushing
400	505073583	Black Epoxy, LH Lower Arm
400	505073584	Black Epoxy, RH Lower Arm
420	505072208	Bushing
430	505072209	Sleeve
440	505072634	Wear Plate
450	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
455	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
500	505073588	Black Epoxy, LH Upper Arm
500	505073589	Black Epoxy, RH Upper Arm
520	505072250	Bushing
530	505072143	Sleeve
540	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
545	250100165	Hex. Flange Elastic Nut M10
550	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
555	250100165	Hex. Flange Elastic Nut M10
660	503189564	Washer
670	505072392	Washer
680	250100165	Hex. Flange Elastic Nut M10
685	250100165	Hex. Flange Elastic Nut M10
690	505072448	O-Ring
800	505072602	Stabilisator
810	505072064	Bushing
830	505072394	Stabilisator Lever
840	207663056	Hex. Flange Screw M6 X 1.0 X 30
850	233261466	Hex. Flange Elastic Nut M6
860	505072204	Sway Bar Double Joint Link
870	207663056	Hex. Flange Screw M6 X 1.0 X 30
880	233261466	Hex. Flange Elastic Nut M6
1010	207005554	Hex Screw M10 X 1.5 X 55
1020	207006544	Hex. Screw M10 X 1.5 X 65
1030	503189564	Washer
1200	505073636	Ball Joint
1230	503192491	Washer
1240	232521464	Hex Elastic Nut M12 X 1.25
1300	293370070	Circlip
1400	505072913	Upper Ball Joint
