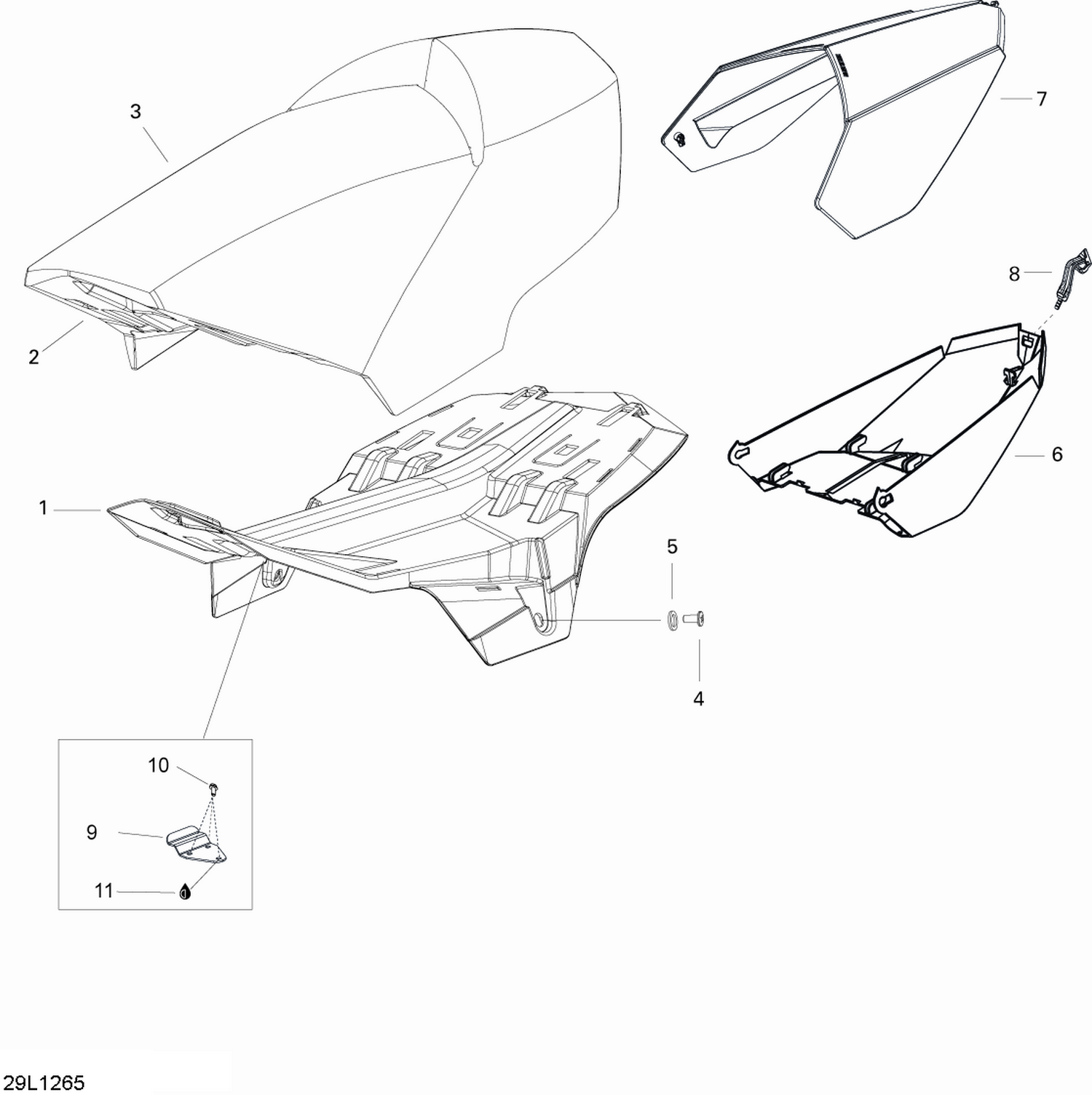

09- Seat
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004899 | BASE-SEAT - Call your local BRP dealership |
| 2 | 510004932 | Foam |
| 3 | 510005533 | Cover |
| 4 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 5 | 510005346 | Washer |
| 6 | 511000757 | Trunk |
| 7 | 511000568 | Trunk Cover |
| 8 | 511000528 | Bracket |
| 9 | 510005129 | Seat front fastening plate |
| 10 | 205461046 | Screw socket |
