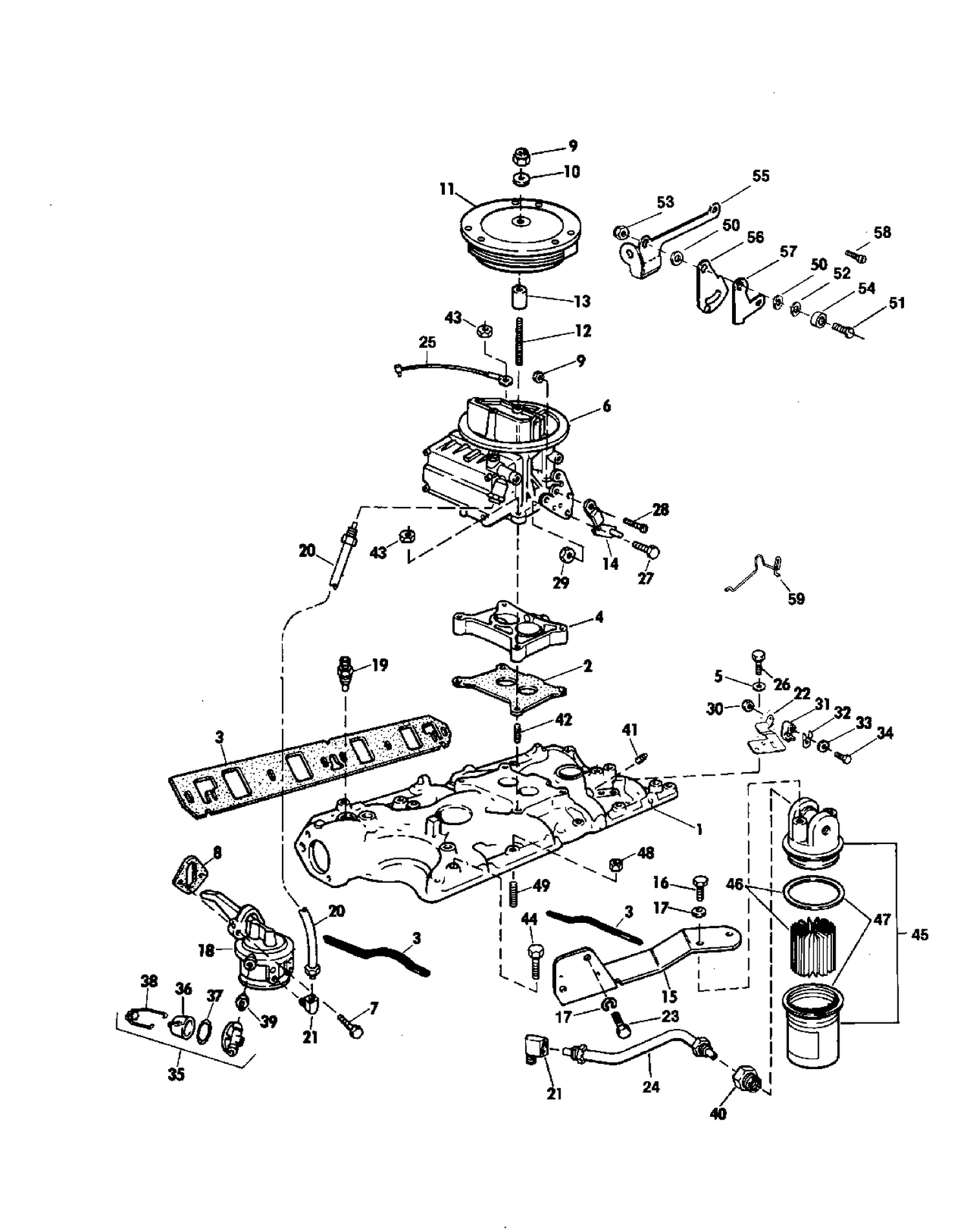

| Ref | Part Number | Description |
|---|
| 1 |
D7JE-9424-BA |
MAINFOLD ASSY |
| 2 |
D4JE-9447-CA |
GASKET, Carburetor to intake manifold |
| 3 |
D70Z-9433-B |
GASKET & SEAL KIT |
| 4 |
C30Z-9A589-D |
SPACER, Carburetor |
| 5 |
0311388 |
ORING |
| 6 |
D4JL-9510-G |
CARBURETOR ASSY |
| 7 |
359081-S36 |
BOLTS, Fuel pump |
| 8 |
C8VE-9417-A |
GASKET, Fuel pump |
| 9 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 10 |
0120590 |
WASHER LEVER ARM, Pulley |
| 11 |
3854026 |
FLAME ARRESTOR This part replaces 0981566. |
| 12 |
0908824 |
STUD, Flame arrestor |
| 13 |
0908825 |
SPACER |
| 14 |
0909845 |
THROTTLE LEVER |
| 14 |
0981000 |
THROTTLE LEVER AND PIN ASSY |
| 15 |
0909263 |
BRACKET, Gas filter |
| 16 |
0306369 |
SCREW |
| 18 |
0982063 |
FUEL PUMP ASSY This part replaces 0980609. |
| 19 |
0171960 |
SENDER, Water temperature |
| 20 |
0981622 |
FUEL LINE ASSY |
| 21 |
0908747 |
ELBOW, Outlet and inlet |
| 22 |
0909851 |
BRACKET, Anchor block |
| 23 |
0114323 |
SCREW, Alternator bracket |
| 24 |
0981269 |
FUEL LINE ASSY, Filter |
| 25 |
0980587 |
LEAD ASSEMBLY, Choke to ground |
| 26 |
0305725 |
SCREW, Block to bracket |
| 26 |
0306450 |
SCREW |
| 27 |
0306487 |
SCREW |
| 28 |
0307466 |
SCRES, Bowl to body |
| 31 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 32 |
0310687 |
DETENT SPRING, Anchor block |
| 32 |
0909790 |
RETAINER |
| 33 |
0310688 |
SAPCER, Anchor block |
| 33 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 34 |
0305725 |
SCREW, Block to bracket |
| 34 |
0311751 |
SCREW, Block to bracket |
| 35 |
0980524 |
BOWL ASSEMBLY |
| 36 |
0384154 |
BOWL & GASKET |
| 38 |
0908872 |
BAIL |
| 39 |
0908647 |
FITTING, Pump to bowl |
| 40 |
3852017 |
ADAPTER, Fuel line This part replaces 0909261. |
| 41 |
3852075 |
PLUG, Intake manifold This part replaces 0307948. |
| 42 |
88471-S |
STUD, Carburetor to manifold |
| 43 |
351089-S |
NUT, Carburetor to manifold |
| 44 |
378484-S |
BOLT, Manifold to block |
| 45 |
0981920 |
FUEL FILTER ASSY |
| 46 |
0982230 |
ELEMENT & GASKET ASSY This part replaces 0981912. |
| 47 |
0981911 |
CANISTER & GASKET ASSY |
| 48 |
374031-S |
NUT, Manifold to block |
| 49 |
382198-S |
STUD, Manifold to block |
| 50 |
0123269 |
WASHER |
| 51 |
0306409 |
VIS, collecteur vers carter-moteur |
| 53 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 54 |
0909850 |
BUSHING |
| 55 |
0909846 |
BRACKET TO PUMP |
| 55 |
0981269 |
FUEL LINE ASSY, Filter |
| 56 |
0114323 |
SCREW, Alternator bracket |
| 56 |
0982015 |
PIVOT ARM & PIN ASSEMBLY |
| 57 |
0909849 |
STOP, Throttle retard |
