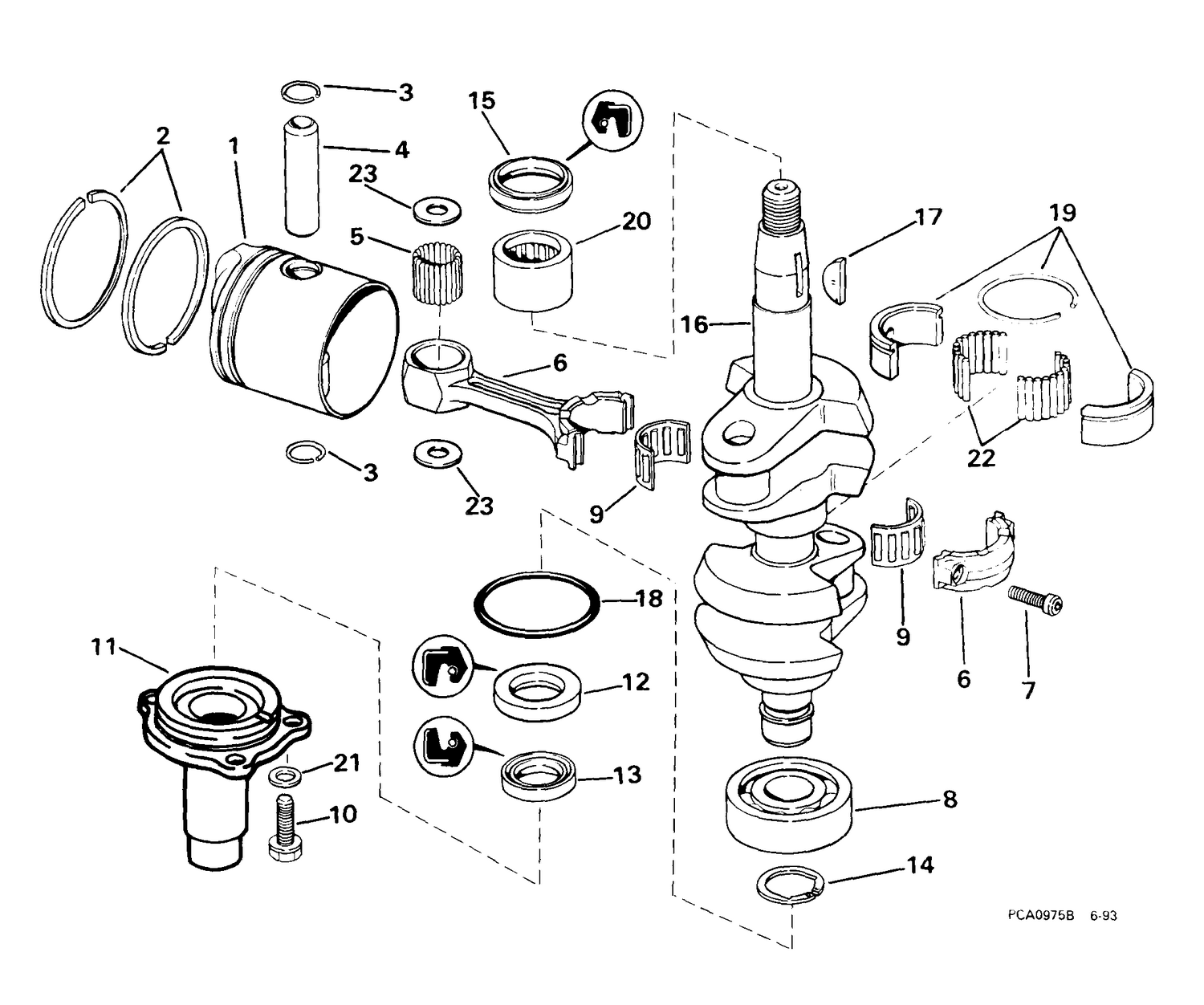

| Ref | Part Number | Description |
|---|
| 1 |
5006692 |
PISTON & RING, Standard This part replaces 0436901. |
| 1 |
5006693 |
PISTON & RING, 0.020 in. O.S. This part replaces 0436903. |
| 4 |
0325296 |
WRIST PIN |
| 5 |
0393283 |
BEARING, Wrist pin |
| 6 |
0396607 |
CONNECTING ROD ASSEMBLY |
| 8 |
0385173 |
BALL BEARING, Prop. shaft |
| 9 |
0395401 |
BEARING SET |
| 11 |
0394327 |
CRANK CASE HEAD |
| 14 |
0318641 |
RETAINING RING, Ball bearing |
| 16 |
0435707 |
CRANKSHAFT ASSY. |
| 18 |
0308458 |
JOINT TORIQUE, tête carter-moteur |
| 19 |
0318863 |
LINERS, Center bearing |
| 20 |
0386008 |
BEARING ASSEMBLY CRANKSHAFT |
| 20 |
515178492 |
Braided Sleeve 60MM Long |
| 21 |
0329241 |
RONDELLE This part replaces 0305981. |
| 22 |
0393804 |
BEARING ASSEMBLY, Central |
| 65 |
514056378 |
Rubber Sheet |
| 300 |
512061696 |
LH Machined Brace This part replaces 512061447. |
| 310 |
512061449 |
Upper CVT Cooling Duct |
| 315 |
250000995 |
Torx-truss M/s M6 X 10 |
| 317 |
207563544 |
Screw H Flange S.Grip M6 X 35 |
| 320 |
512061450 |
Lower CVT Cooling Duct |
| 325 |
250000995 |
Torx-truss M/s M6 X 10 |
| 400 |
420889425 |
Servo Motor Ass'y |
| 420 |
293370122 |
Circlip |
| 440 |
207551044 |
Hex. Flange Screw M5 X 10 |
| 1000a |
512061417 |
LH Rear Engine Support |
| 1020 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1030 |
250200146 |
Conical Spring Washer M8 |
| 1200a |
512061419 |
SUPPORT_ENGINE FL - Call your local BRP dealership |
| 1210 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1220 |
250200146 |
Conical Spring Washer M8 |
| 1300 |
512061439 |
RH Front Engine Support |
| 1305 |
512061454 |
Vibration Damper |
| 1310 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1320 |
250200146 |
Conical Spring Washer M8 |
| 1330 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 1400 |
512061411 |
RH Rear Engine Support Ass'y |
| 1410 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1420 |
250200146 |
Conical Spring Washer M8 |
| 1500 |
512061454 |
Vibration Damper |
| 1540 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 1550 |
207585544 |
Hex. Flange Screw M8 X 55 |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1580 |
205082544 |
Socket Screw M6 X 20, Scotch Grip |
| 1585 |
503183200 |
Yellow, Washer |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061137 |
Engine Stopper |
| 2000d |
732610072 |
Push Nut |
| 2000f |
512061083 |
Rubber |
| 2000g |
420441840 |
Distance Screw |
| 2010 |
512061325 |
Cable Guide |
| 2020 |
250000759 |
Torx Truss Pt K40 X 16 |
| 2030 |
293650212 |
GEMI Clamp |
| 2050 |
420201630 |
Rubber Cap |
| 2060 |
512061274 |
Airbox Support |
| 2070 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2080 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 3600 |
512061224 |
Throttle Cable |
| 3690 |
414274500 |
Circlip |
| 3800 |
512060859 |
Upper Housing Ass'y |
| 3810 |
512060860 |
Lower Housing |
| 3820 |
512061544 |
Heated Hand Lever Accelerator |
| 3840 |
250000991 |
Flanged Screw M5x12 |
| 4200 |
512061168 |
Ignition Coil |
| 4210 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 4220 |
512061166 |
Ignition Cable |
| 4240 |
512061238 |
Spark Plug Wire Holder |
| 4270 |
293300208 |
O-Ring |
| 5050 |
512060993 |
Clamp |
