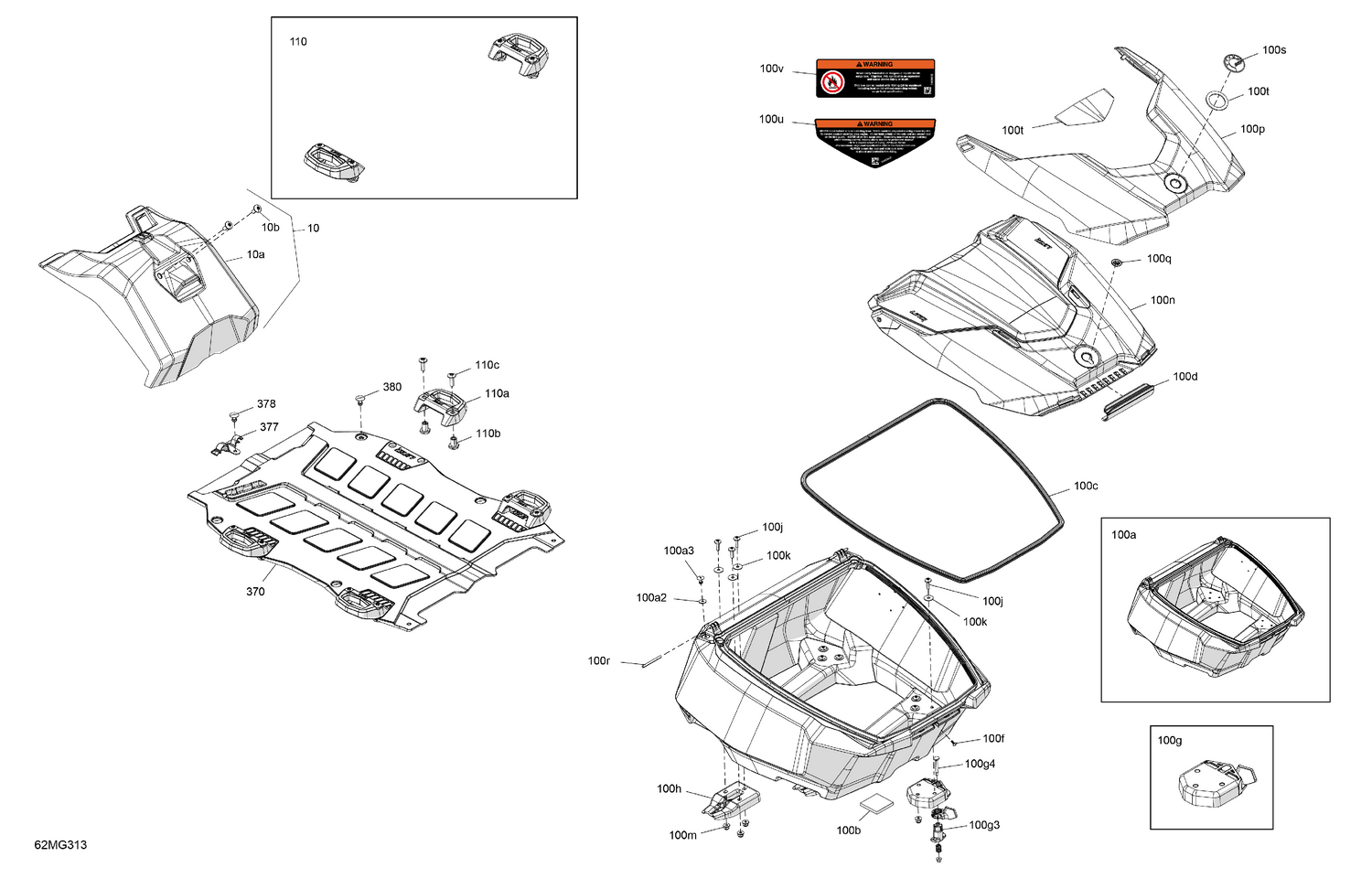

07- Body - Cargo
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 511001210 | Battery Cover |
| 10b | 250001005 | Torx Screw M6 X 16 |
| 100a2 | 517124300 | Washer |
| 100a3 | 293150104 | Pop Rivet 3/16" |
| 100b | 511001275 | Self Adhesive Protective Foam |
| 100c | 293830188 | Seal, 1PC = 3M |
| 100d | 269501945 | Clip |
| 100f | 250001034 | Torx-Truss Screw K40 X 10 |
| 100g3 | 708200772 | RH Latch |
| 100g4 | 511001584 | Rod |
| 100h | 511001164 | Linq Toe In |
| 100j | 250000712 | Torx Screw M6 X 20 |
| 100k | 250200040 | Flat Washer |
| 100m | 233261466 | Hex. Flange Elastic Nut M6 |
| 100n | 511001150 | Storage Lid |
| 100p | 511002099 | Mineral Blue, Box Trim |
| 100q | 250100213 | Self Threading Nut 8MM |
| 100r | 511001211 | Hinge Pin |
| 100s | 516013210 | BRP Logo Emblem 48MM |
| 100t | 511001392 | Self Adhesive Weather Strip |
| 100u | 516009527 | Warning Label |
| 100v | 516009528 | Warning Label |
| 110a | 860203055 | Linq Anchorage Kit |
| 110b | 511000822 | Threaded Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 370 | 511001781 | Radiator Trim |
| 377 | 520001722 | Cap |
| 378 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
