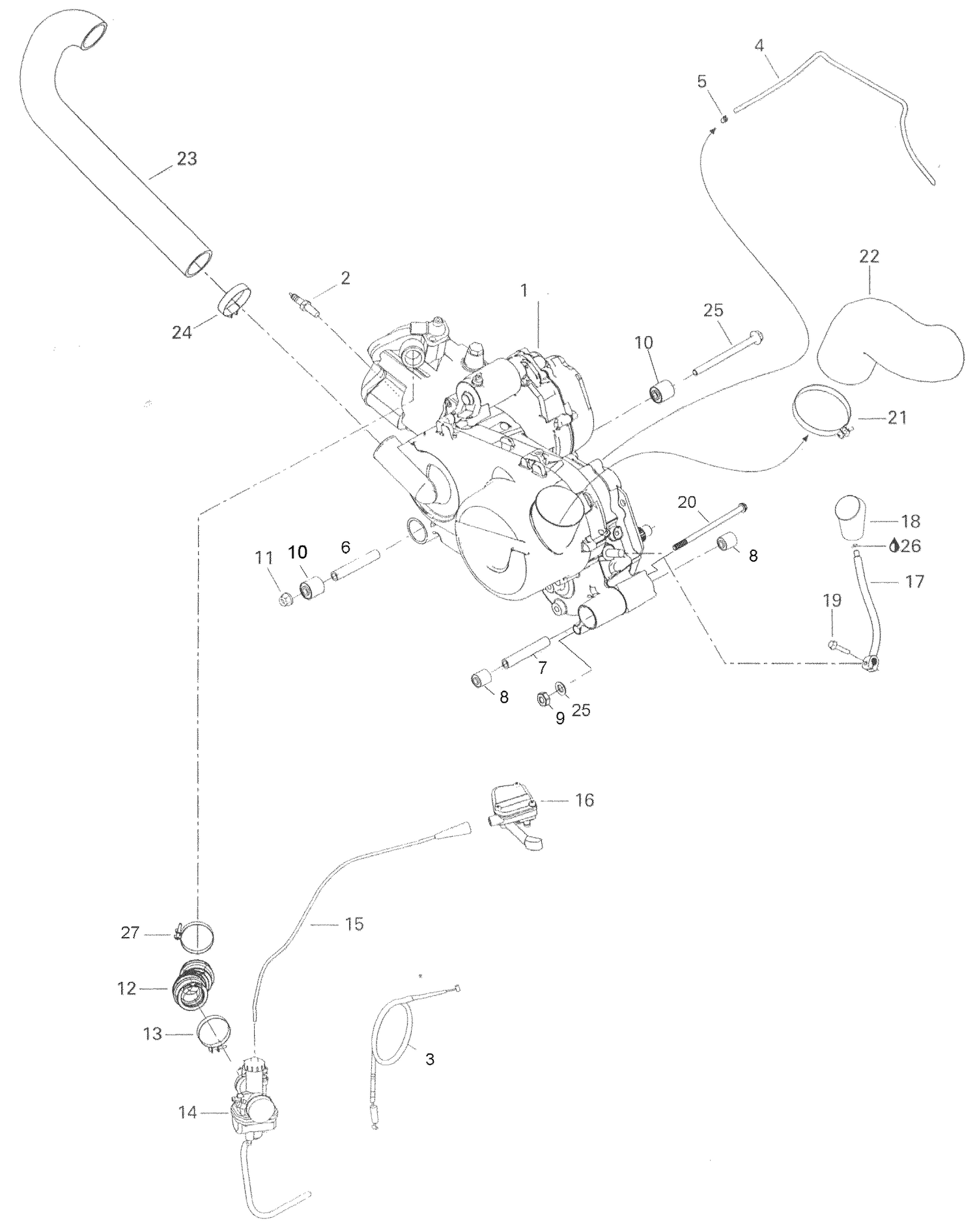

01- Engine And Engine Support
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A84100179000 | Engine 175 CC |
| 2 | 219703176 | Spark Plug NGK CR8E This part replaces 707000306. |
| 3 | A17950179000 | CHOKE CABLE - Call your local BRP dealership |
| 4 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 5 | 414554800 | Spring Clamp |
| 6 | A11150179000 | FRONT CRANKCASE AXLE - Call your local BRP dealership |
| 7 | A11151179000 | REAR CRANKCASE AXLE - Call your local BRP dealership |
| 8 | A96400123538 | REAR BUSHING - Call your local BRP dealership |
| 9 | 232501416 | Elastic Flange Nut M10 |
| 10 | A96400123535 | REAR BUSHING - Call your local BRP dealership |
| 11 | A9035112000 | Elastic Flange Nut M12 |
| 12 | 707000195 | Carburetor Adaptor |
| 13 | 293650151 | GEMI CLAMP - Call your local BRP dealership |
| 14 | A16100179000 | Carburetor |
| 15 | 707000318 | Throttle Cable |
| 16 | 709400142 | THROTTLE HANDLE - Call your local BRP dealership |
| 17 | A24701179000 | Shifter Lever |
| 18 | A24702179000 | LEVER BUTTON - Call your local BRP dealership |
| 19 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 20 | A9600010158 | Hex. Flange Screw |
| 21 | 293650152 | Gemi Clamp |
| 22 | 707000202 | EXHAUST - Call your local BRP dealership |
| 23 | 707000203 | Air Intake |
| 24 | 293650153 | GEMI CLAMP - Call your local BRP dealership |
| 25 | A941011020020 | Washer |
| 26 | 293800060 | Loctite 243, 10 ml |
