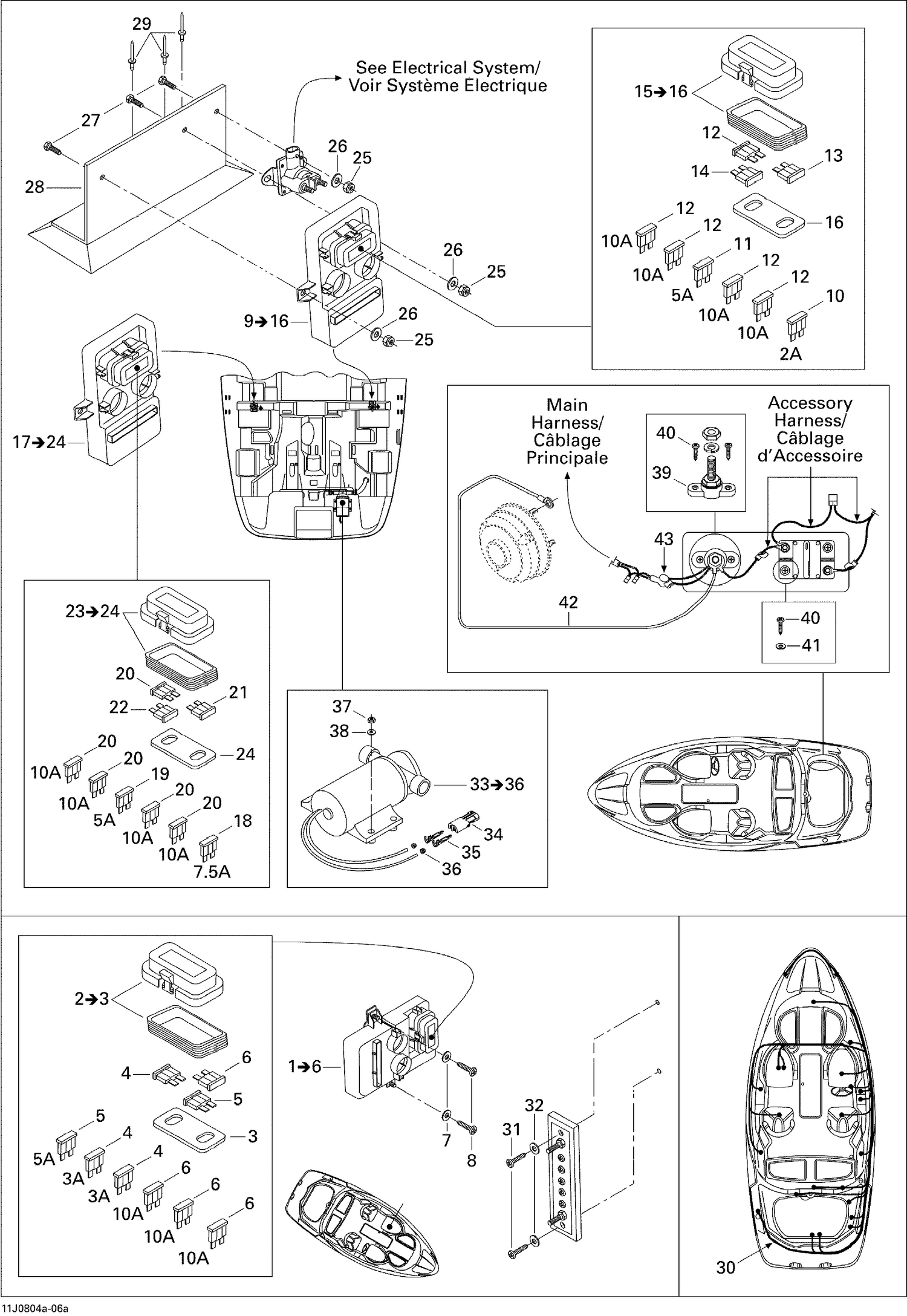

| Ref | Part Number | Description |
|---|
| 3 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 4 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 5 |
278000344 |
Fuse, 5 Amperes |
| 6 |
278001197 |
Fuse, 10 Amperes |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 8 |
204100203 |
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership |
| 10 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 11 |
278000344 |
Fuse, 5 Amperes |
| 12 |
278001197 |
Fuse, 10 Amperes |
| 13 |
409003900 |
Fuse, 20 Amperes |
| 14 |
410917200 |
Fuse, 30 Amperes |
| 16 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 18 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 19 |
278000344 |
Fuse, 5 Amperes |
| 20 |
278001197 |
Fuse, 10 Amperes |
| 21 |
409003900 |
Fuse, 20 Amperes |
| 22 |
410917200 |
Fuse, 30 Amperes |
| 24 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 25 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 26 |
234062600 |
Flat Washer M6, Stainless |
| 27 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 28 |
204471071 |
BRACKET - Call your local BRP dealership |
| 29 |
293150037 |
Avdel Rivet 3/16" |
| 30 |
204471233 |
MAIN HARNESS (ACCESSORY HARNESS) - Call your local BRP dealership |
| 31 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 32 |
234041600 |
Flat Washer 4 mm, Stainless |
| 34 |
278000217 |
Female Housing, 2 Circuits |
| 35 |
278000222 |
Male Terminal |
| 36 |
278000218 |
Wire Seal |
| 37 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 38 |
234062600 |
Flat Washer M6, Stainless |
| 39 |
204471083 |
POWER POST 3/8 - Call your local BRP dealership |
| 40 |
209641960 |
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 41 |
234041600 |
Flat Washer 4 mm, Stainless |
| 42 |
204471082 |
Power Cable, Red |
