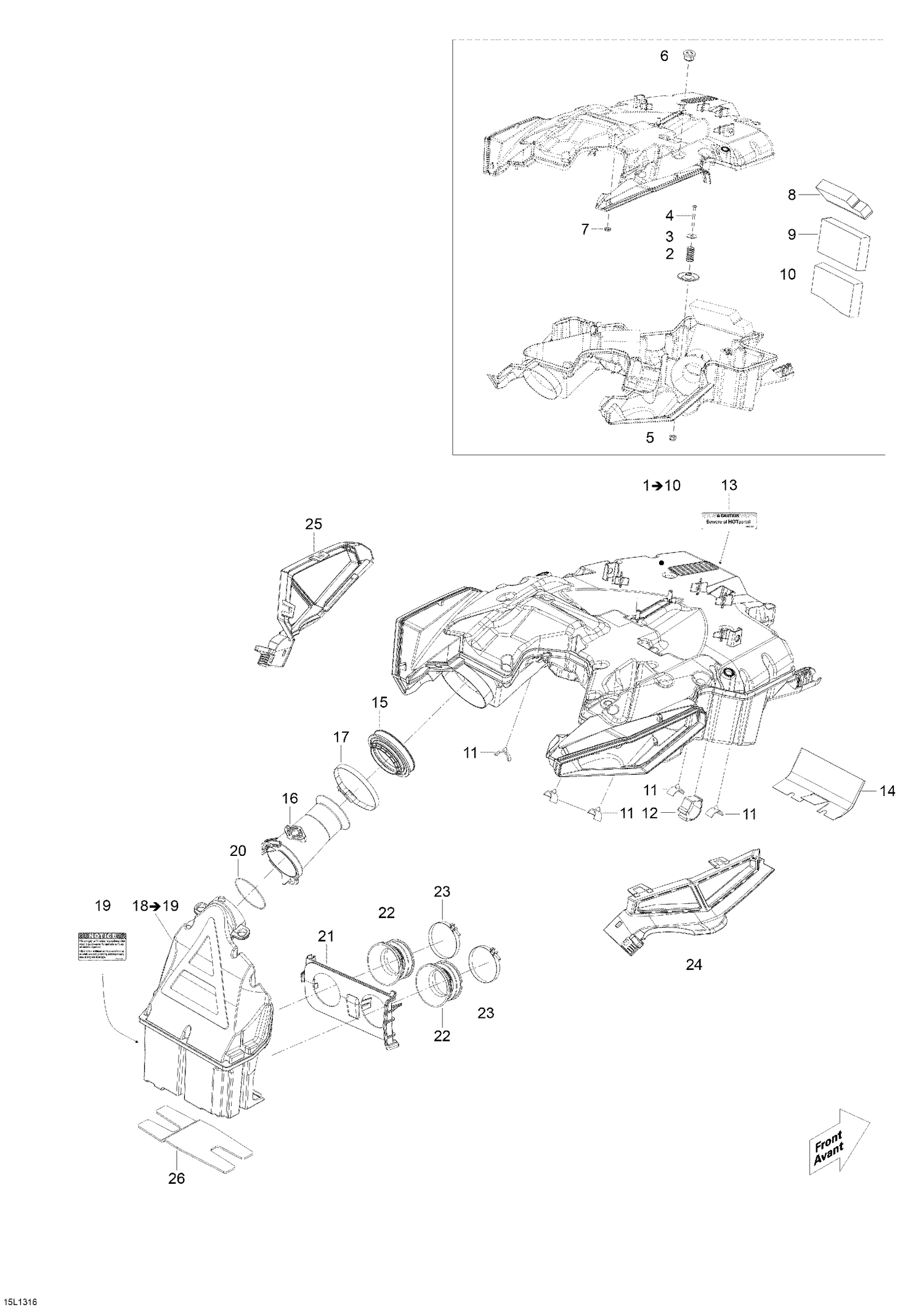

02- Air Intake System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000576 | Spring |
| 3 | 224060201 | Flat Washer |
| 4 | 205444086 | Socket Head Screw M4 x 40 |
| 5 | 232541414 | Elastic Stop Nut M4 |
| 6 | 508000574 | Grommet |
| 7 | 389804300 | Push Nut |
| 8 | 508000696 | LH UPPER FOAM - Call your local BRP dealership |
| 9 | 508000697 | LH LOWER FOAM - Call your local BRP dealership |
| 10 | 508000706 | RH LOWER FOAM - Call your local BRP dealership |
| 11 | 508000537 | Stopper |
| 12 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 13 | 516004651 | Warning Decal, Hot Parts |
| 14 | 508000720 | HEAT SHIELD - Call your local BRP dealership |
| 15 | 508000567 | Intake Adaptor |
| 16 | 508000662 | Flute |
| 17 | 514052924 | Gear Clamp |
| 19 | 516005876 | Instr. Label, Air Intake |
| 20 | 293300140 | O'RING - Call your local BRP dealership |
| 21 | 508000613 | Adapter Plate |
| 22 | 508000614 | Air Intake Adapter |
| 23 | 508000346 | Clamp |
| 24 | 508000688 | Air Filter |
| 25 | 508000689 | Air Filter |
