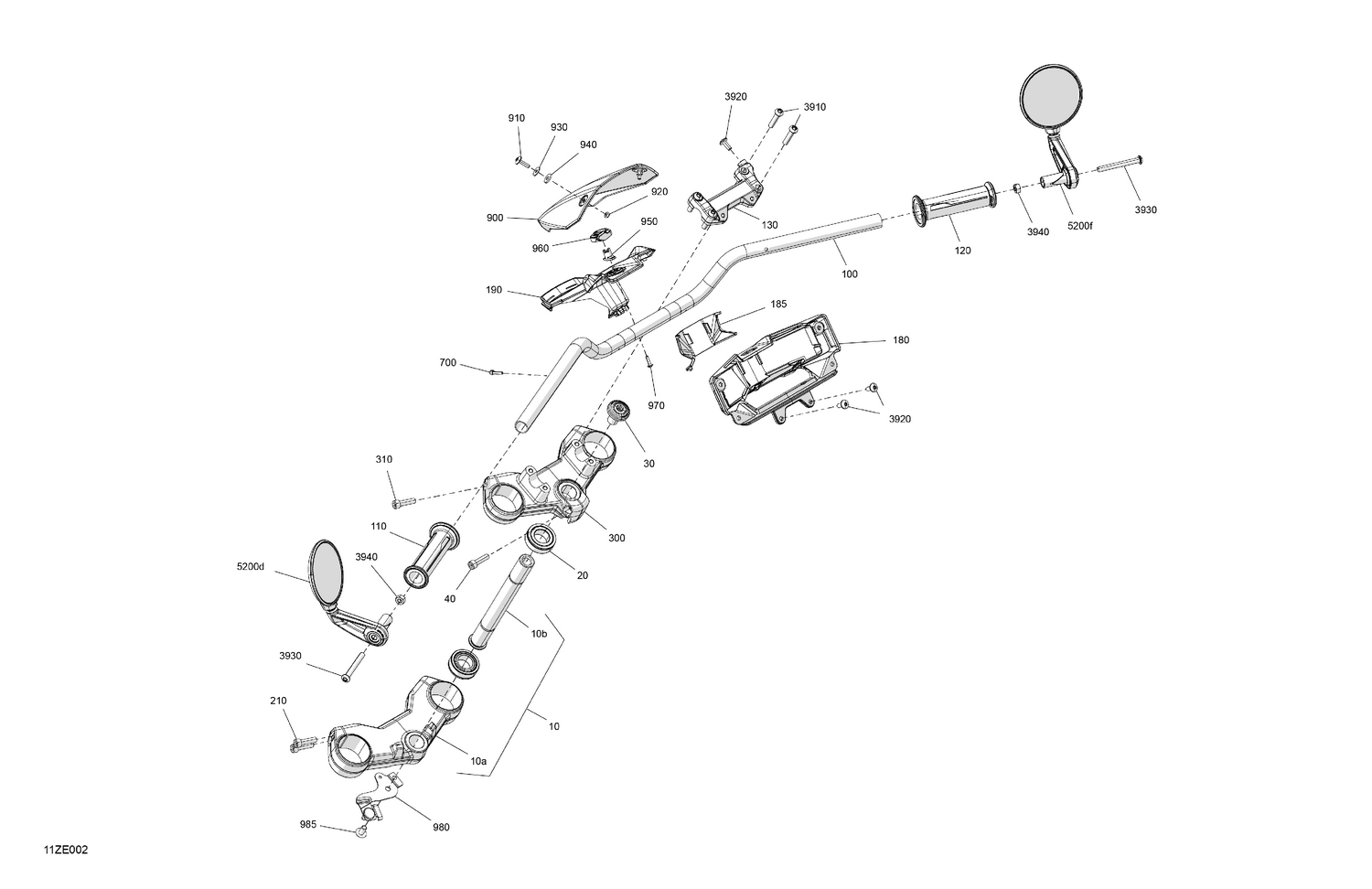

03- Mechanic - Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 706205749 | Lower Suspension Support |
| 10b | 706204432 | Steering Axle |
| 20 | 293350196 | Taper Roller Bearing |
| 30 | 709403174 | Shaft Plug |
| 40 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 100 | 709402518 | Handlebar |
| 110 | 709401984 | LH Handle Grip |
| 120 | 709401985 | RH Handle Grip |
| 130 | 709403018 | Handlebar Support |
| 180 | 708400623 | Gauge Support |
| 185 | 709403210 | Trim Support |
| 190 | 709403097 | Deflector Support |
| 210 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 300 | 706205750 | Upper Suspension Support |
| 310 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 700 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 900 | 219800614 | Air Deflector Kit This part replaces 709403057. |
| 910 | 250000895 | Torx-Truss M/S M5X20 |
| 920 | 232551200 | Elastic Stop Nut 5 mm |
| 930 | 234052670 | Stainless Steel Flat Washer M5 |
| 940 | 250200024 | Rubber Washer 5 mm |
| 950 | 708400936 | Fastener |
| 960 | 708400935 | Lever |
| 970 | 250000759 | Torx Truss Pt K40 X 16 |
| 980 | 709403201 | Horn Support |
| 985 | 250000746 | Torx Truss Screw M8 X 16 |
| 3910 | 250000803 | Torx-Button Soc M8 X 40 Nylon |
| 3920 | 250001005 | Torx Screw M6 X 16 |
| 3930 | 250001320 | Torx Truss Screw Torx M8 X 70 |
| 3940 | 232081414 | Hex. Nut M8 |
| 5200d | 709403139 | LH Rear-View Mirror Ass'y |
