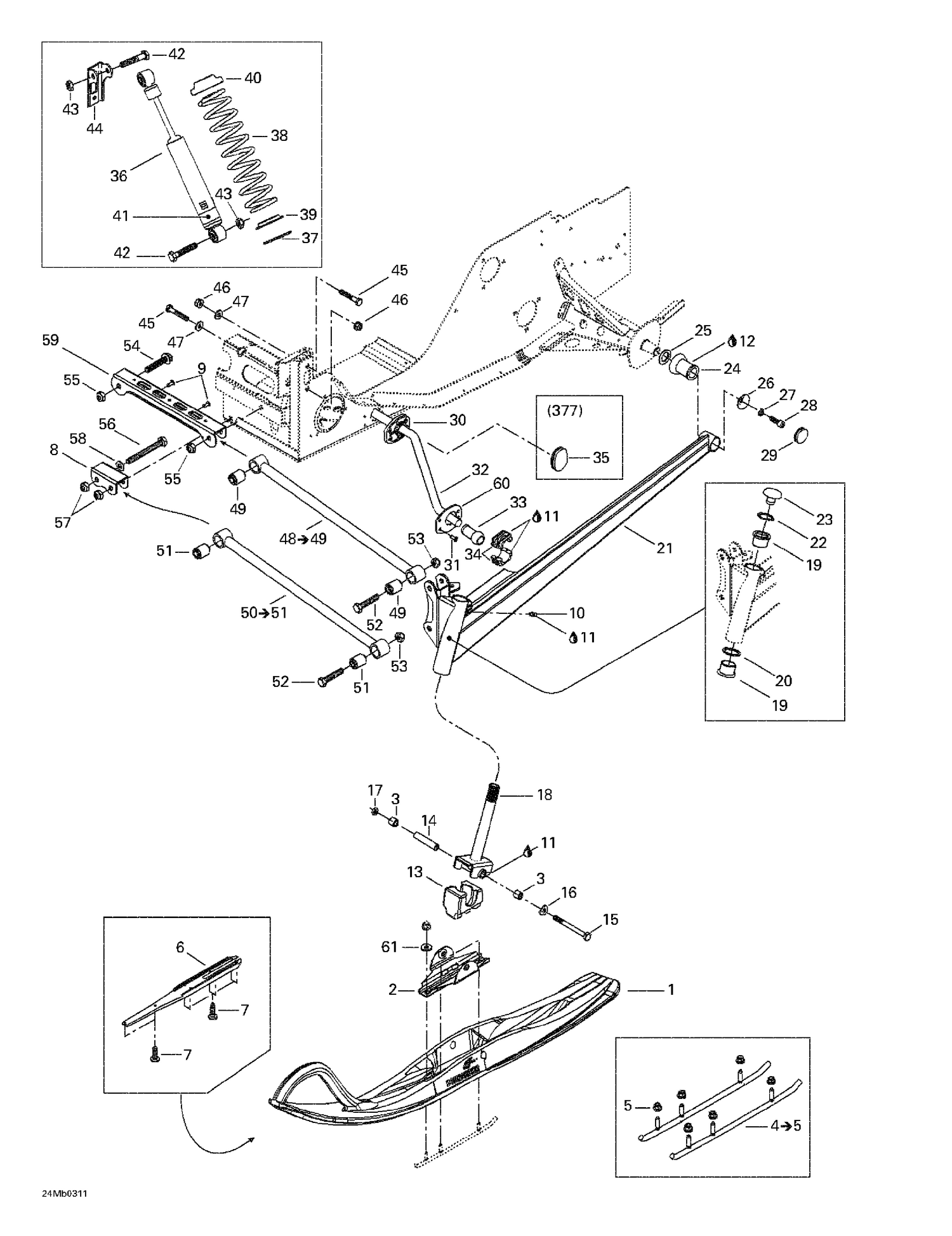

| Ref | Part Number | Description |
|---|
| 1 |
505072019 |
Small ''Blow Mold'' Ski This part replaces 505070975. |
| 2 |
505070980 |
BRIDGE ASS'Y - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Cushion |
| 5 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 6 |
505070232 |
PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership |
| 7 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 8 |
505070011 |
Lower Arm Bracket |
| 9 |
390402200 |
Pop Rivet 3/16" |
| 10 |
408200700 |
Grease Fitting |
| 11 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 12 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 13 |
505070978 |
SKI STOPPER - Call your local BRP dealership |
| 14 |
506133300 |
Spacer |
| 15 |
250000703 |
Hex. Screw M10 X 130 This part replaces 230003044. |
| 16 |
234001410 |
Flat Washer 10 mm |
| 17 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 18 |
506151234 |
Ski Leg |
| 19 |
505070003 |
Cushion |
| 20 |
505070004 |
WASHER - Call your local BRP dealership |
| 21 |
505070645 |
RH ARM - Call your local BRP dealership |
| 22 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 23 |
572091300 |
Cap |
| 24 |
570062200 |
DAMPER - Call your local BRP dealership |
| 25 |
503146700 |
WASHER - Call your local BRP dealership |
| 26 |
705007171 |
Cup This part replaces 506115800. |
| 27 |
234181401 |
Lock Washer 8 mm |
| 28 |
205582544 |
Socket Head Screw M8 X 25, Scotch Grip |
| 29 |
572045900 |
CAP - Call your local BRP dealership |
| 36 |
505070695 |
Front Shock |
| 37 |
505070401 |
WASHER - Call your local BRP dealership |
| 38 |
505070686 |
Spring |
| 39 |
503187500 |
Spring Guide |
| 40 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 41 |
Not |
Available As Spare Part - EDP Label |
| 42 |
207005544 |
Hex. Screw M10 X 55 |
| 43 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 44 |
518317518 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 45 |
207085044 |
Hex. Screw M8 X 50 |
| 46 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 47 |
506151245 |
Washer |
| 49 |
505070025 |
Bushing |
| 51 |
505070025 |
Bushing |
| 52 |
207005544 |
Hex. Screw M10 X 55 |
| 53 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 54 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 55 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 56 |
207009544 |
Hex. Screw M10 X 95 |
| 57 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 58 |
234001410 |
Flat Washer 10 mm |
| 59 |
505070010 |
Upper Arm Bracket |
| 505070646 |
Bras |
Oscillant GA - Appelez votre concessionnaire BRP local 505070646 |
| 505070646 |
LH |
ARM - Call your local BRP dealership 505070646 |
| 518317519 |
LH |
Shock Bracket 518317519 |
