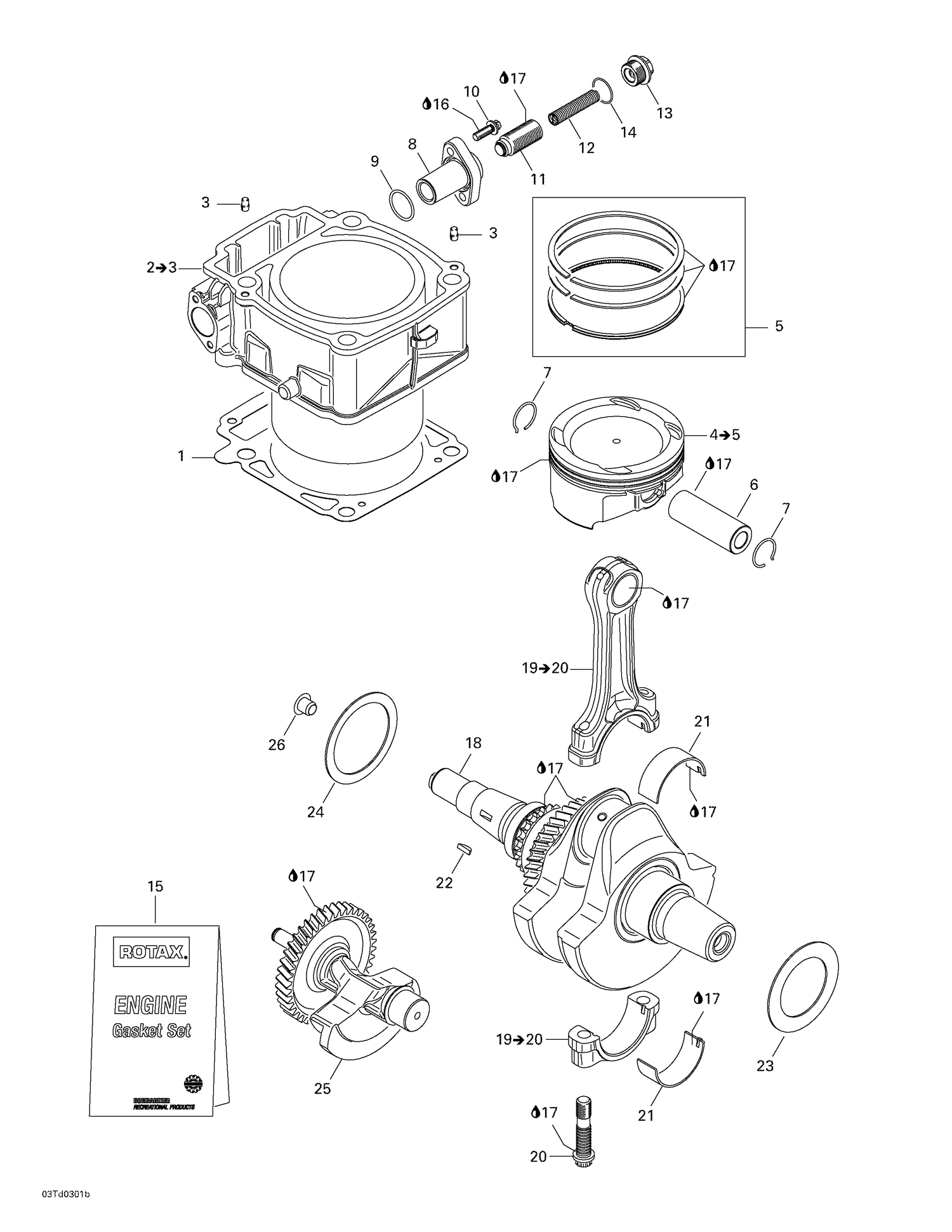

| Ref | Part Number | Description |
|---|
| 1 |
711630080 |
GASKET - Call your local BRP dealership |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 5 |
420890380 |
Piston Set Ring, Standard This part replaces 711888864. |
| 6 |
420216250 |
Piston Pin This part replaces 711216250. |
| 7 |
420845580 |
Circlip This part replaces 711845580. |
| 8 |
420236510 |
Chain Tensioner Housing This part replaces 711236510. |
| 9 |
420430373 |
O-Ring This part replaces 420430370. |
| 10 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 711641233. |
| 11 |
420236521 |
Chain Tensioner Plunger This part replaces 711236520. |
| 12 |
420238120 |
Spring This part replaces 711238120. |
| 13 |
420641150 |
Plug Screw This part replaces 711641150. |
| 14 |
420250890 |
O-Ring This part replaces 290250890. |
| 15 |
711684120 |
Engine Gasket Set |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 20 |
420640991 |
Connecting rod Screw M10 X 1 This part replaces 711640990. |
| 21 |
420933523 |
Half-Bearing This part replaces 711933520. |
| 22 |
420246570 |
Woodruff Key 4 X 5 This part replaces 711246570. |
| 23 |
420627363 |
SHIM - Call your local BRP dealership This part replaces 711627362. |
| 24 |
711627502 |
Shim |
| 25 |
711220785 |
Balancing Shaft |
