Home / BRP / STERN DRIVE / 1993 / 5.80 / 58FAPEJVB 1993 / UPPER INTAKE MANIFOLD - 58FBPEJVB MODELS

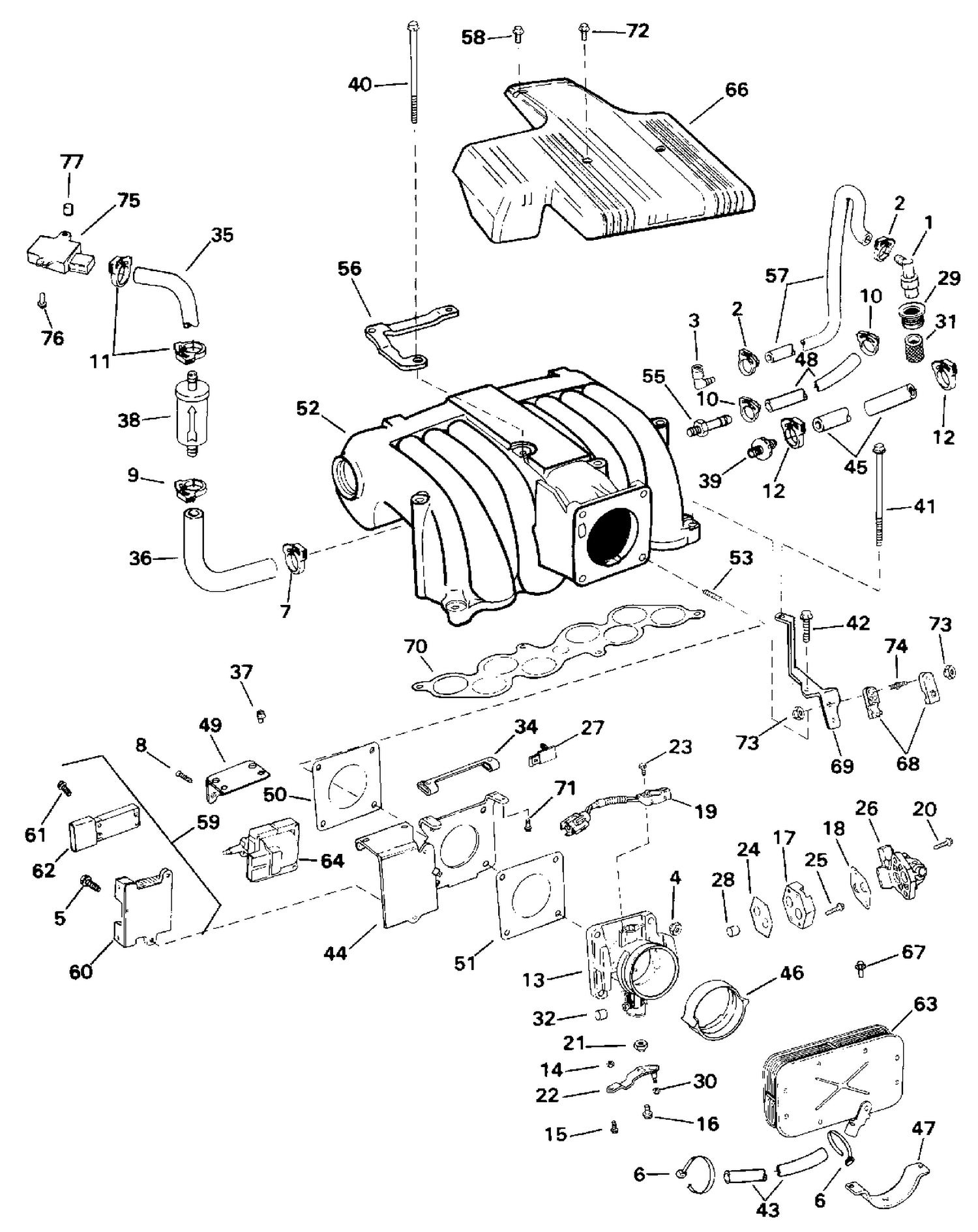

UPPER INTAKE MANIFOLD - 58FBPEJVB MODELS

UPPER INTAKE MANIFOLD - 58FBPEJVB MODELS

Parts (59)

RefPart NumberDescription
1 3852820 PCV VALVE This part replaces 0913760.
3 0174177 ELBOW KIT This part replaces 0909985.
4 0316355 BUT, Carburetor mounting This part replaces 0315204.
6 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
8 0321219 VIS, vis de fixation
10 0322653 CLAMP
13 3855163 THROTTLE BODY ASSY. This part replaces 0988181.
16 0335200 VIS, capteur position de vilebrequin vers support
17 3853612 ADAPTER, Air bypass solenoid This part replaces 0915967.
18 3853613 GASKET, Adapter to solenoid This part replaces 0915968.
19 3850988 THROTTLE POSITION SENSOR This part replaces 0987988.
20 3853614 SCREW, Air by-pass solenoid This part replaces 0915969.
21 3853627 NUT, Throttle lever This part replaces 0915995.
22 0987619 LEVER & PIN, Throttle body
23 3850986 SCREW, Throttle sensor This part replaces 0916439.
24 3853613 GASKET, Adapter to solenoid This part replaces 0915968.
25 3853614 SCREW, Air by-pass solenoid This part replaces 0915969.
26 3850987 VALVE, Throttle air by-pass This part replaces 0987987.
27 3853734 CLIP, Connector This part replaces 0916245.
28 3853748 FILTER, Noise suppressor This part replaces 0916275.
29 3853767 GROMMET, PCV valve This part replaces 0916432.
30 3853729 NUT, Lever to bracket This part replaces 0916216.
31 3853768 ELEMENT, Crankcase vent This part replaces 0916433.
32 3853772 CAP, Idle screw This part replaces 0916449.
34 3853775 BRACKET, Styling cover This part replaces 0916452.
35 0916312 HOSE, MAP sensor to filter
36 3850923 HOSE, Filter to intake manifold This part replaces 0916420.
37 0335200 VIS, capteur position de vilebrequin vers support
38 0398327 FILTER, MAP sensor
40 3853760 SCREW, Intake manifold, center This part replaces 0916410.
41 3853635 SCREW, Instake manifold, stbd. This part replaces 0916009.
42 3853638 SCREW, Intake manifold This part replaces 0916012.
43 3853723 HOSE, Valve cover to arrestor This part replaces 0916179.
44 3853763 BRACKET, TFI module & E-coil This part replaces 0916416.
45 3853582 HOSE, Reservoir to pulse limiter This part replaces 0915896.
46 3850922 GROMMET, Flame arrestor This part replaces 0916304.
47 3853595 CLAMP, Flame arrestor This part replaces 0915943.
48 3853765 HOSE, Pressure regulator This part replaces 0916419.
49 3853625 BRACKET, E-coil to TFI bracket This part replaces 0915993.
50 3853761 GASKET, Bracket to manifold This part replaces 0916414.
51 3853761 GASKET, Bracket to manifold This part replaces 0916414.
52 3854276 MANIFOLD ASSY., Upper intake This part replaces 0988130.
55 3853639 FITTING, Hose to reducer This part replaces 0916013.
56 3853762 BRACKET, Cover This part replaces 0916415.
57 HOSE, PCV valve
59 3854139 MODULE ASSY., TFI This part replaces 0987632.
60 3854272 HEAT SINK This part replaces 0916243.
61 3854273 SCREW This part replaces 0916244.
62 3854274 MODULE, TFI This part replaces 0987984.
63 3850915 FLAME ARRESTOR This part replaces 0988021.
64 3854161 E-COIL This part replaces 0987680.
66 3853571 COVER This part replaces 0988125.
67 3853722 SCREW, Flame arrestor clamp This part replaces 0916178.
68 3852836 ANCHOR BLOCK This part replaces 0913795.
69 0916403 BRACKET, Throttle anchor
70 3853636 GASKET, Upper to lower intake This part replaces 0916010.
72 3853764 SCREW, Flame arrestor cover This part replaces 0916418.
74 3850682 STUD, Anchor block This part replaces 0914682.
75 3854160 SENSOR, Manifold air pressure This part replaces 0987679.
