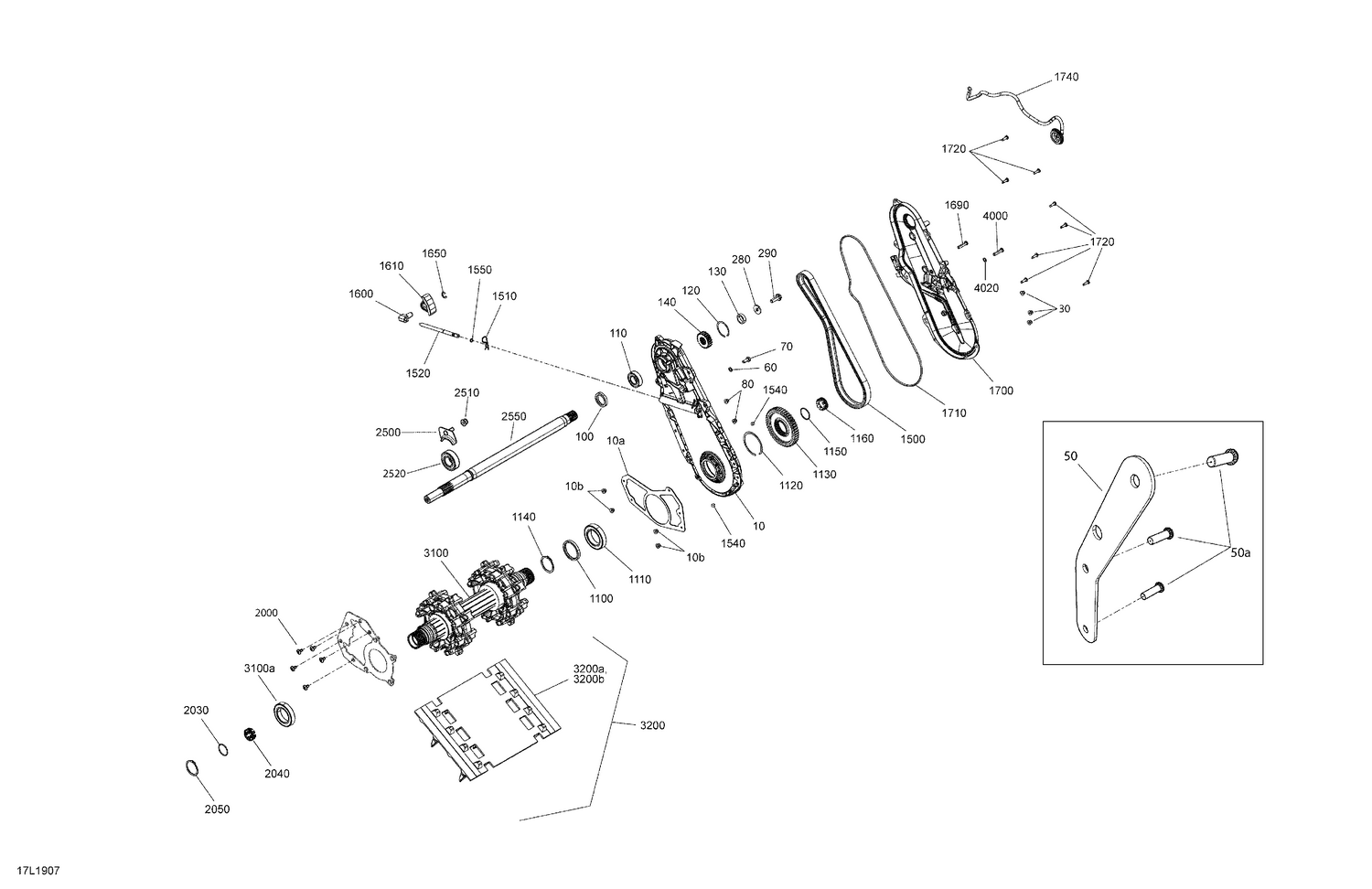

05- Drive Rave - 600 Racing

05- Drive Rave - 600 Racing

Parts (46)

RefPart NumberDescription
10a 861805514 Plate Kit Ass'y
10b 233261434 Flanged Elastic Nut M6
30 233261414 Hex. Flange Elastic Nut M6 x 1.0
50a 250300027 Clinch Stud M6 X 20
60 504082900 Washer
70 250000740 Torx Screw M8 X 20, Scotch Grip
80 233261414 Hex. Flange Elastic Nut M6 x 1.0
100 293200168 Oil Seal
110 293350115 Ball Bearing
120 504152576 Circlip
130 504152628 Shim
140 504153911 Sprocket 23 Teeth This part replaces 504091000.
280 504152784 Spring Washer M10
290 207503046 Hex. Flange Screw M10 X 30, Scotch Grip
1100 293200159 Oil Seal
1110 293350059 Ball Bearing
1120 504152582 Circlip
1130 504153952 Sprocket , 51 Teeths
1140 293370134 Circlip
1150 293300201 O-Ring
1160 504153696 Magnetic Cap Ass'y
1500 504153266 Drive Chain (110 Links)
1510 414575600 Hair Pin
1520 504153760 Adjustment Screw
1540 250500013 Hex. Countersunk Drain Plug This part replaces 250500012.
1550 293300202 O-Ring
1600 504153559 Tensioner
1610 504153312 Chain Slider
1650 293370105 Circlip
1690 250000764 Hex. Button Head Screw M8 X 1.25 X 35
1700 504154066 Deep Black, Chain Case Cover Ass'y This part replaces 504153891.
1710 293300214 O Ring This part replaces 293300199.
1720 250001012 Torx T-30 Pan HD Taptite M6X20 This part replaces 250000870.
1740 504153535 Cap Ass'y
2000 250000767 Torx Truss Screw M6 X 12
2030 293300201 O-Ring
2040 504153697 Magnetic Cap
2050 504152572 Circlip
2500 504153491 Bearing Housing
2510 233281414 Hex. Flange Elastic Nut M8
2520 293350115 Ball Bearing
2550 504153492 Countershaft
3100a 293350059 Ball Bearing
3200a 415129528 Track Guide
3200b 504152651 Cleat
4000 250000764 Hex. Button Head Screw M8 X 1.25 X 35
