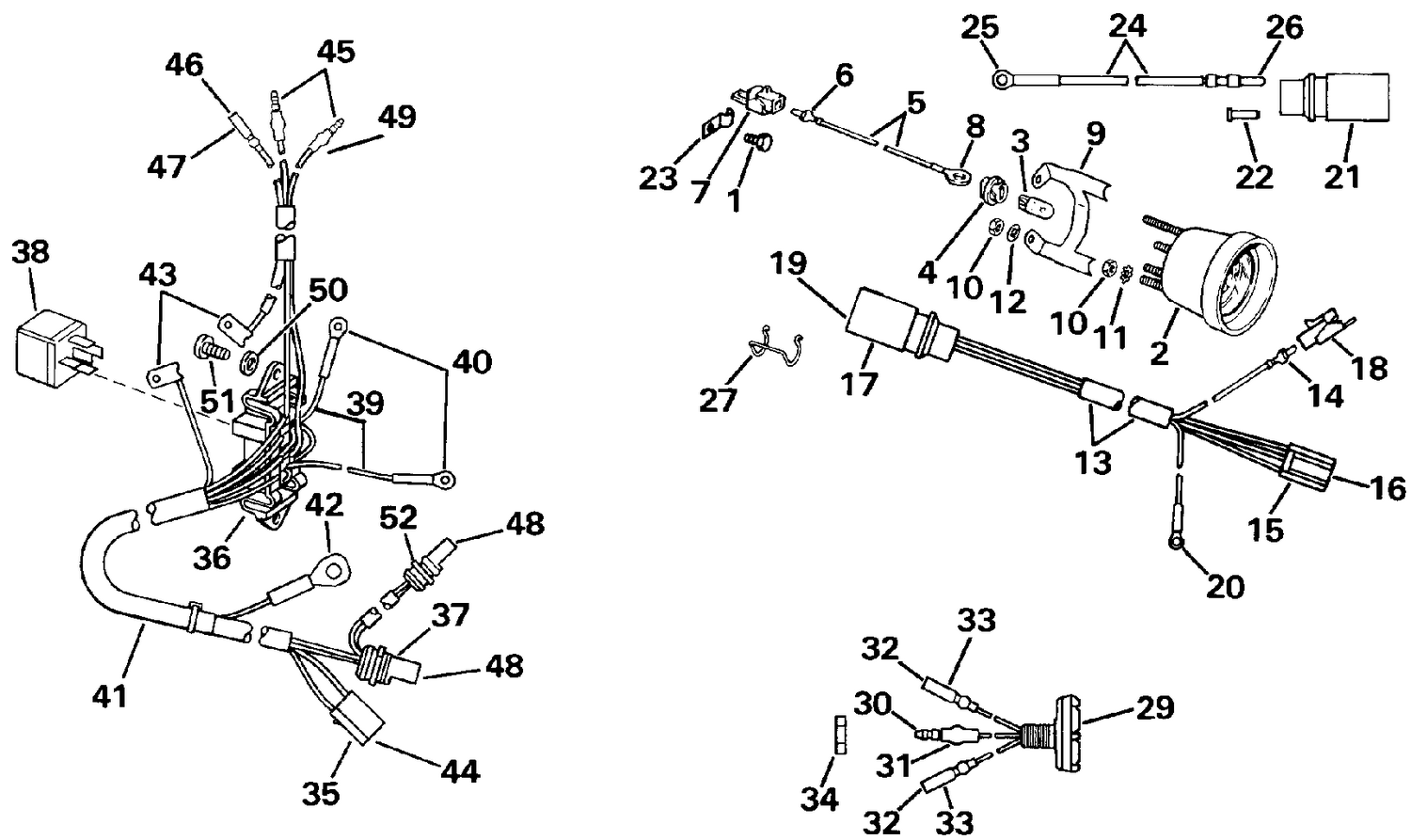

POWER TRIM/TILT ELECTRICAL
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0174679 | KIT JAUGE CORRECTION D'ASSIETTE/RELEVAGE |
| 5 | 0583255 | LEAD ASSEMBLY |
| 9 | 0125409 | BRACKET |
| 12 | 0125415 | LOCKWASHER |
| 14 | 0512904 | BULLET TERMINAL |
| 23 | 0317000 | COLLIER, câble |
| 24 | 0582093 | LEAD ASSY This part replaces 0582092. |
| 27 | 0512743 | DISPOSITIF DE RETENUE |
| 28 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 29 | 0585146 | INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE This part replaces 0583803. |
| 41 | 0583770 | CABLE, Trim motor & control |
