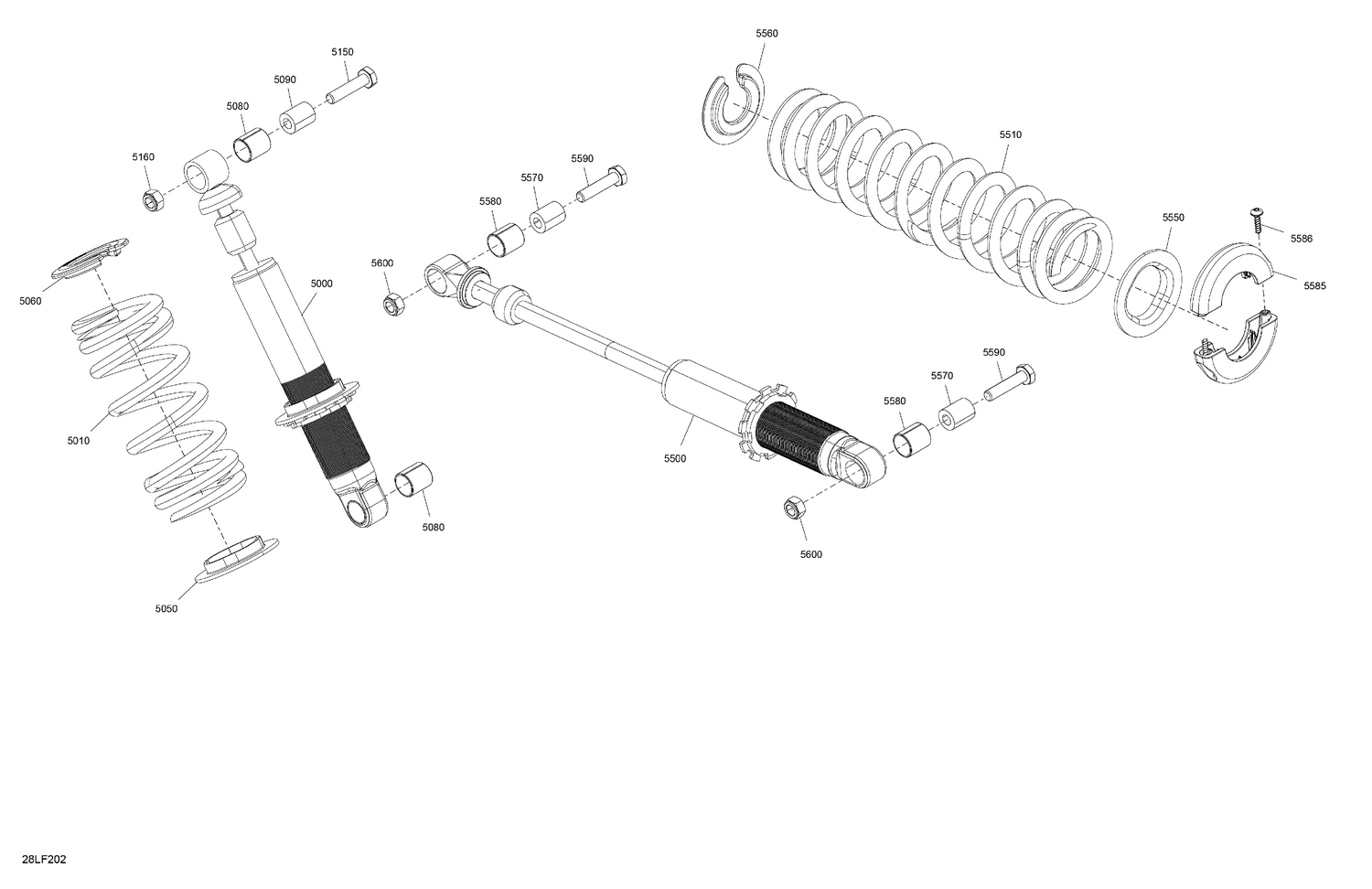

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503197514 | Central Adjustable Shock Absorber |
| 5010 | 503197980 | Spring 185 Mm-30 N/Mm |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503195134 | Glide Bearing |
| 5090 | 5446652 | Bushing |
| 5150 | 207004544 | Hex. Screw M10 X 45 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500 | 503197515 | Rear Shock Absorber |
| 5510 | 503198127 | Spring 300 Mm - 35/70 N/Mm |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503195134 | Glide Bearing |
| 5585 | 503198093 | Sleeve_Protection Molded |
| 5586 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 5590 | 207004544 | Hex. Screw M10 X 45 |
