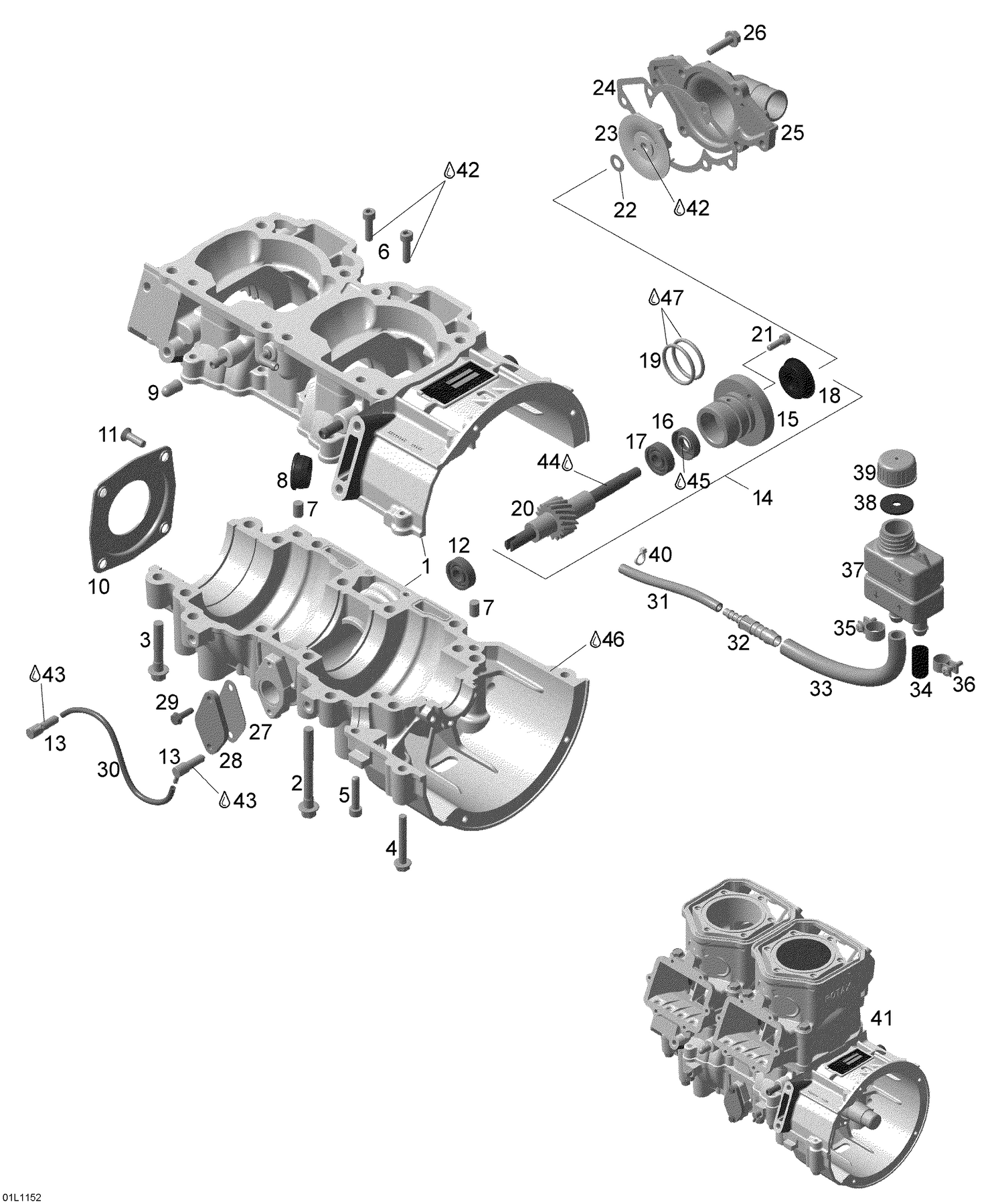

| Ref | Part Number | Description |
|---|
| 2 |
420640836 |
Hex. Collar Screw M8 X 75 |
| 3 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 4 |
420640312 |
Hex. Collar Screw M6 X 45 This part replaces 420640311. |
| 5 |
205063044 |
Socket Head Screw M6 X 30 |
| 6 |
420840403 |
Socket Head Screw M6 X 22 This part replaces 420840401. |
| 7 |
420632010 |
Center Pin 8 X 12 |
| 8 |
420860965 |
Cable Grommet |
| 9 |
420960770 |
Cap |
| 10 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 11 |
420941436 |
Screw M6 X 20 |
| 12 |
420232100 |
Ball Bearing |
| 13 |
420956511 |
Check Valve This part replaces 420956510. |
| 14 |
420837421 |
Water Pump/Oil Pump Ass'y |
| 16 |
420230195 |
Oil seal This part replaces 420230196. |
| 17 |
420232100 |
Ball Bearing |
| 18 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 19 |
420950890 |
O-Ring |
| 20 |
Not |
Available As Spare Part - Waterpump/oilpump shaft |
| 21 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 22 |
420227945 |
Washer |
| 23 |
420222505 |
Water Impeller |
| 24 |
420931811 |
Gasket This part replaces 420931810. |
| 25 |
420922630 |
Water Pump Housing |
| 26 |
420240034 |
Hex. Screw M6 x 25 This part replaces 420240031. |
| 27 |
420931568 |
Joint *Gasket This part replaces 420931566. |
| 28 |
420810827 |
Cover Plate This part replaces 420810825. |
| 29 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 30 |
414413800 |
Oil Hose |
| 31 |
415110000 |
Polyurethane Hose 5.2 mm |
| 32 |
420874370 |
Fitting |
| 33 |
420956239 |
OIL TUBE - Call your local BRP dealership |
| 34 |
420960279 |
Closure Cap |
| 35 |
420951260 |
CLAMP - Call your local BRP dealership |
| 36 |
420951241 |
CLAMP - Call your local BRP dealership |
| 38 |
420850350 |
Rubber Gasket |
| 39 |
420956250 |
Oil Tank Cap |
| 40 |
420866710 |
Tie-Wrap 142x2.5 mm |
| 41 |
300059321 |
Short block engine |
| 42 |
293800060 |
Loctite 243, 10 ml |
| 43 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 44 |
779277 |
OIL 2T SNOW PREM. MINERAL 3,785L EU - Call your local BRP dealership This part replaces 619590101. |
| 45 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 46 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
