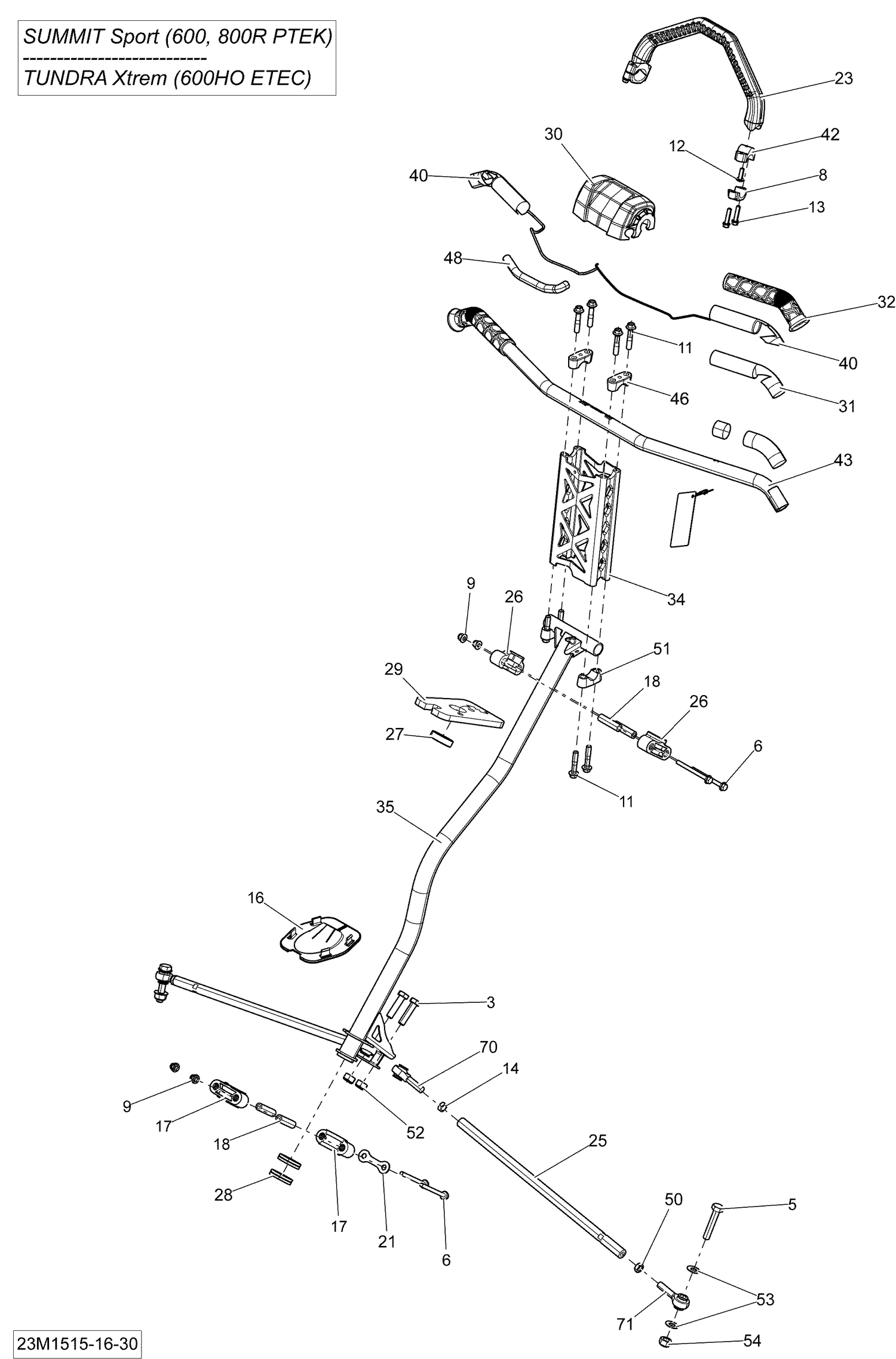

07- Steering _23M1530 — Parts Catalog

Ref	Part Number	Description
3	207004034	Hex. Screw M10 X 1.5 X 40
5	207004544	Hex. Screw M10 X 45
8	719000049	Clamps This part replaces 219800081.
11	250000352	Hex. Flange Screw M8 X 40
12	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
13	250000447	Hex. Flange Screw M6 X 25
14	250100016	LH Threaded Hex. Jam Nut M10
16	XXX	Not Available As Spare Parts
17	506152588	Lower Half-Housing
21	506152389	Stopper Plate
23	506152460	Moulding Strap
25	506152377	ROD_LINK - Call your local BRP dealership
26	506152508	Upper Half-Housing
27	506152509	Upper Anti-Vibration Gasket
28	506152518	Lower Vibration Ring
29	506152476	Bushing
30	506152541	Deep Black, Steering Pad
31	506153176	Thermal Insulation This part replaces 506152548.
32	506152560	Grip 148mm
34	506152569	Steering Extension
35	506152962	Steering Column This part replaces 506152584.
40	506152758	Heating Element 32 Watt 2 Wires
42	506152703	Black Support Plate
43	506152709	Handle Bar, Non Dyed Clear Anodizing
46	506152751	Steering Support This part replaces 506152750.
48	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
50	732610010	RH Threaded Hex. Jam Nut M10
51	506152751	Steering Support
52	233601466	Elastic Locking Nut M10
53	506152582	Washer
54	233201464	Hex. Flange Elastic M10 x 1.5
70	506152081	LH Thread Ball Joint
