Parts Catalog

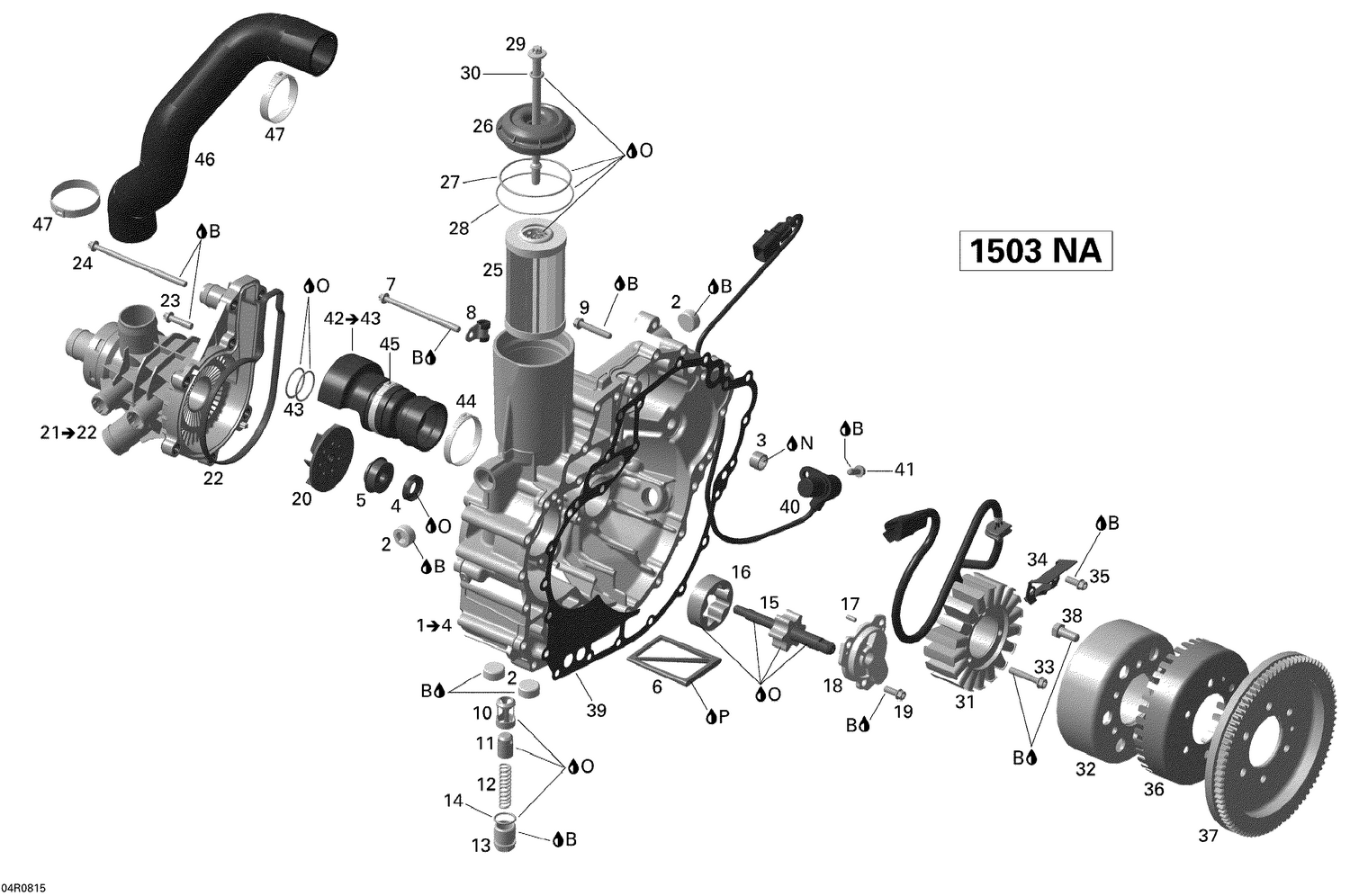

03- PTO Cover And Magneto

Parts (47)

Ref	Part Number	Description
B	293800060	Loctite 243, 10 ml
N	413707000	Dow Corning 111, 150 g
O	Not	Available As Spare Part - Engine Oil
2	420641317	Plug Screw M20 X 1.5
3	420232482	Needle Bushing This part replaces 420232480.
4	420650315	Oil Seal This part replaces 420650310.
5	420650371	Rotary Seal This part replaces 420650370.
6	420956950	Oil Sieve
7	420641228	Torx Flange Screw M6 X 85
8	420853414	Clamp
9	420641258	Torx Flange Screw M6 X 35
10	420256606	Valve Seat Sleeve
11	420256638	Piston Valve This part replaces 420256630.
12	420939410	Compression Spring
13	420641052	Plug Screw M20 X 1.5
14	420230890	O-Ring
15	420837472	Pump Shaft Ass'y
16	420956675	Oil Pump Rotor 16 mm
17	420929070	Needle Pin
18	420811591	Oil Pump Cover This part replaces 420811590.
19	420641048	Torx Flange Screw M6 X 16
20	420922801	Impeller
22	420950840	Water Pump Housing Gasket
23	420641238	Torx Flange Screw M6 X 25
24	420641338	Torx Flange Screw M6 X 105
25	420956741	Oil Filter
26	420610329	Oil Filter Cover This part replaces 420610328.
27	420230923	O-Ring This part replaces 420230920.
28	420850500	O-Ring
29	295501207	Oil Filter Screw Kit This part replaces 420641105.
30	420950860	O-Ring
31	420889726	Stator Plate This part replaces 420889721.
32	420296900	Magneto Flywheel This part replaces 420889711.
33	420641258	Torx Flange Screw M6 X 35
34	420926300	Retaining Plate
35	420641048	Torx Flange Screw M6 X 16
36	420966851	Trigger Wheel This part replaces 420664082.
37	420835163	Starter Gear, 86 Teeth This part replaces 420835160.
38	295501162	Hex Screw This part replaces 295501043.
39	420931130	Timing Drive Cover Gasket (1603 NA)
40	420966570	Crankshaft Position Sensor Ass'y
41	420641048	Torx Flange Screw M6 X 16
43	420631612	O-Ring This part replaces 420631610.
44	420851653	Gear Clamp
45	420853023	Gear Clamp 46.8-50.0MM
46	420922822	Formed Hose
47	420851687	Oetiker Clamp
