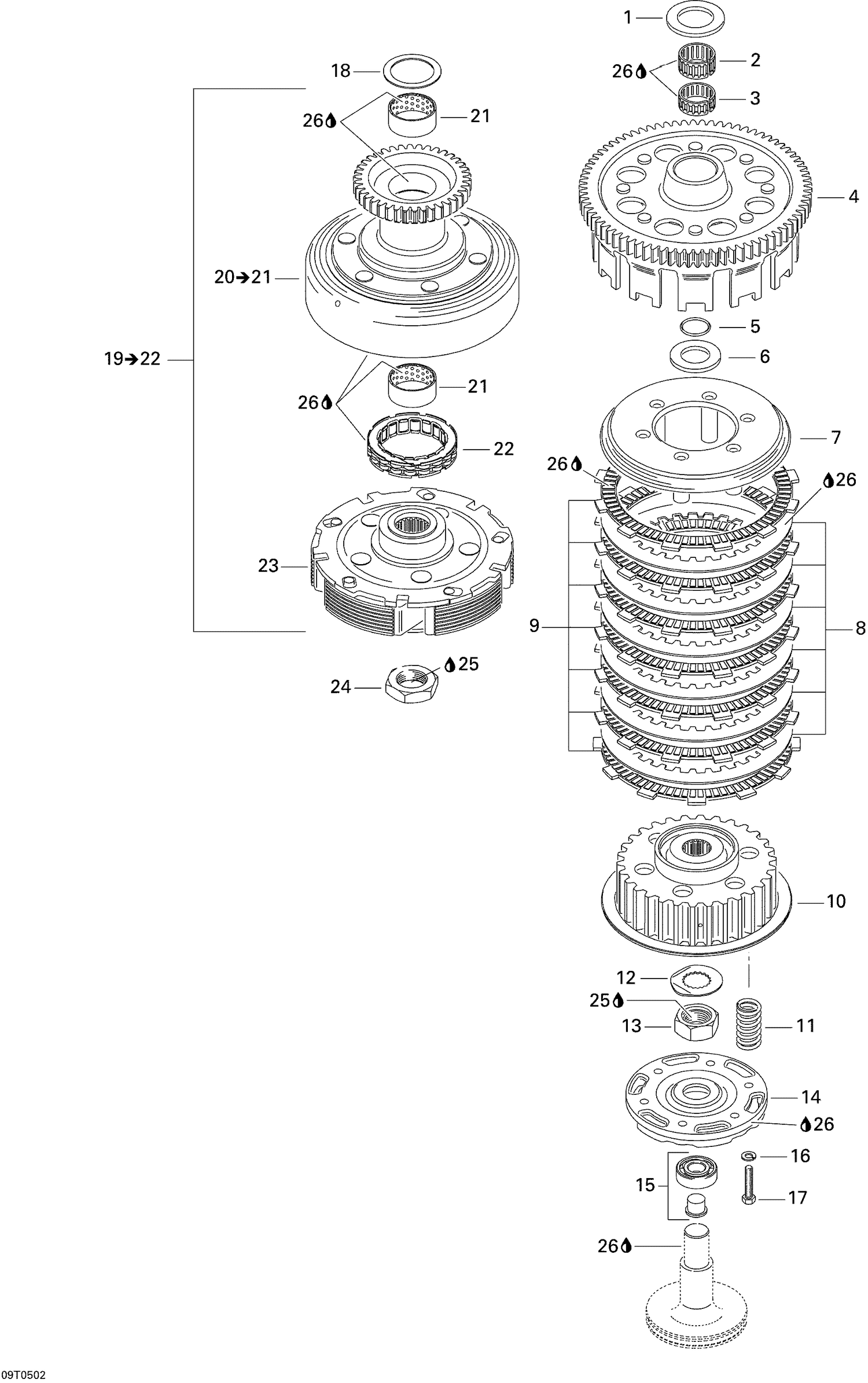

| Ref | Part Number | Description |
|---|
| 1 |
420227390 |
THRUST WASHER - Call your local BRP dealership |
| 2 |
420632070 |
Needle Bearing |
| 3 |
420232655 |
NEEDLE CAGE - Call your local BRP dealership |
| 4 |
420659203 |
Clutch Drum |
| 5 |
293300018 |
O-RING - Call your local BRP dealership |
| 6 |
420227600 |
THRUST WASHER - Call your local BRP dealership |
| 7 |
420659230 |
INNER PLATE - Call your local BRP dealership |
| 8 |
420259915 |
Plate 1.5 mm |
| 9 |
420259907 |
LAMELLA 3 MM - Call your local BRP dealership |
| 10 |
420259876 |
CLUTCH HUB - Call your local BRP dealership |
| 11 |
420239741 |
CLUTCH SPRING - Call your local BRP dealership |
| 12 |
420245320 |
TAB WASHER - Call your local BRP dealership |
| 13 |
420242605 |
Hex. Nut M18 |
| 14 |
420259131 |
Retaining Plate |
| 15 |
420259143 |
Hub Thrust With Ball Bearing |
| 16 |
420945750 |
Lock Washer |
| 17 |
420241770 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 18 |
420427130 |
THRUST WASHER - Call your local BRP dealership |
| 21 |
420233765 |
CLUTCH BUSHING - Call your local BRP dealership |
| 22 |
420659240 |
SPRAG CLUTCH - Call your local BRP dealership |
| 23 |
420659180 |
CLUTCH HUB - Call your local BRP dealership |
| 24 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 25 |
293800060 |
Loctite 243, 10 ml |
