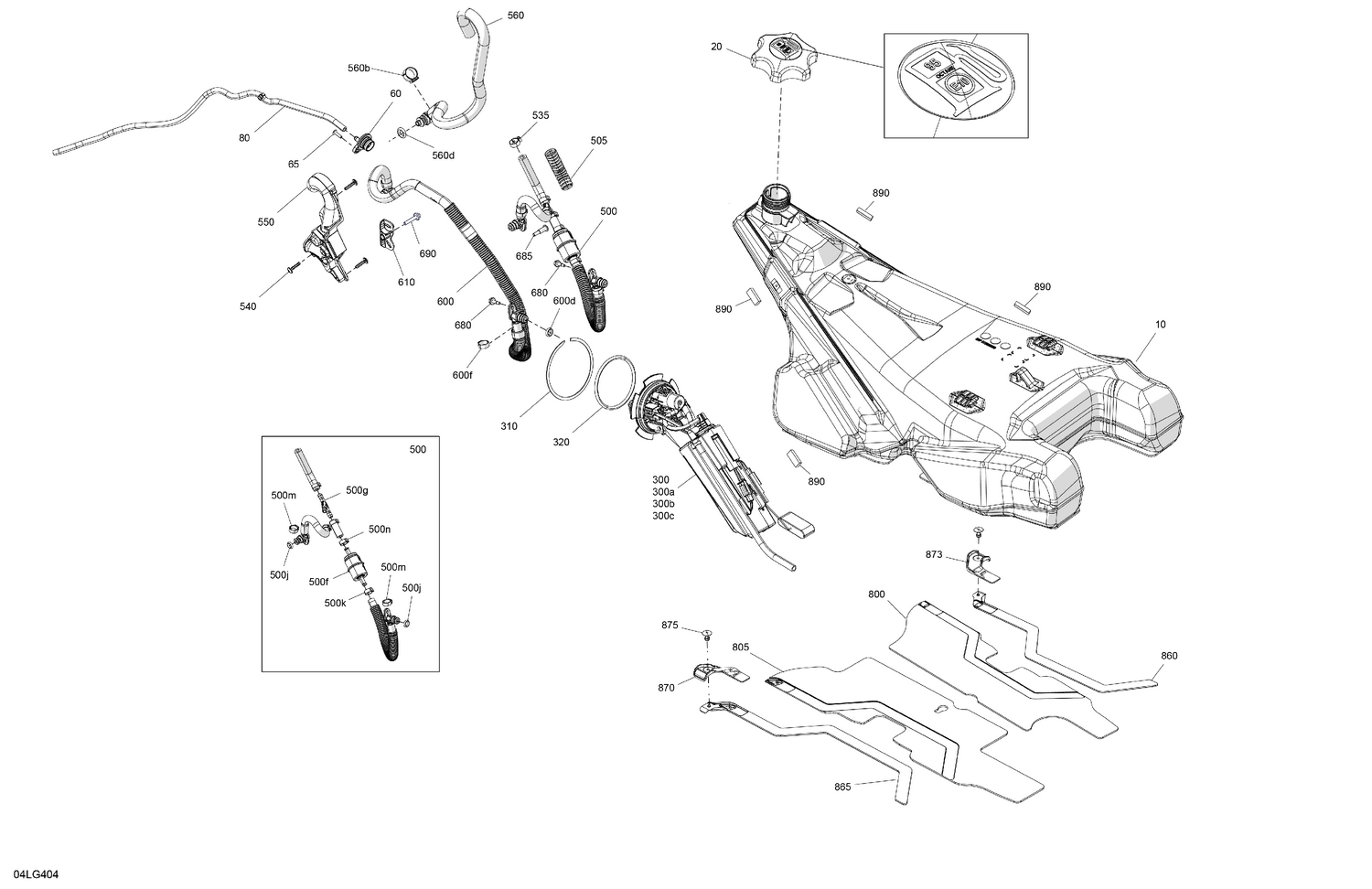

02- Engine - Fuel
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034100 | Fuel Tank |
| 20 | 513034170 | Fuel Tank Cap |
| 60 | 513034278 | Fuel Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Hose |
| 300a | 415131070 | Fuel Level Sensor |
| 300b | 415131068 | Fuel Filter |
| 310 | 513034097 | Circlip |
| 320 | 513033862 | O-Ring |
| 500f | 513034279 | Fuel Filter |
| 500j | 513033668 | O-Ring |
| 500k | 293650047 | Crimp Clamp, 15.3-706R |
| 500m | 293650053 | Crimp Clamp |
| 500n | 293650125 | Oetiker Clamp |
| 505 | 513034287 | SHEATH_CORRUGATED 16 MM ID - 50MM |
| 535 | 293650350 | Crimp Clamp |
| 540 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 550 | 513034204 | Hose Guide |
| 560b | 293650053 | Crimp Clamp |
| 560d | 513033668 | O-Ring |
| 600d | 513033668 | O-Ring |
| 600f | 293650053 | Crimp Clamp |
| 610 | 513034194 | Molded Hose Support |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 685 | 250000911 | Hex. Flange Screw M5 X 16 |
| 690 | 207552844 | Hex.Flange Screw M5 X 28 S.Grip |
| 800 | 513034052 | RH Insulated Foam |
| 805 | 513034053 | LH Insulated Foam |
| 860 | 513033981 | Foam |
| 865 | 513033982 | Foam |
| 870 | 513034183 | LH Chassis Trim |
| 873 | 513034184 | RH Chassis Trim |
| 875 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
