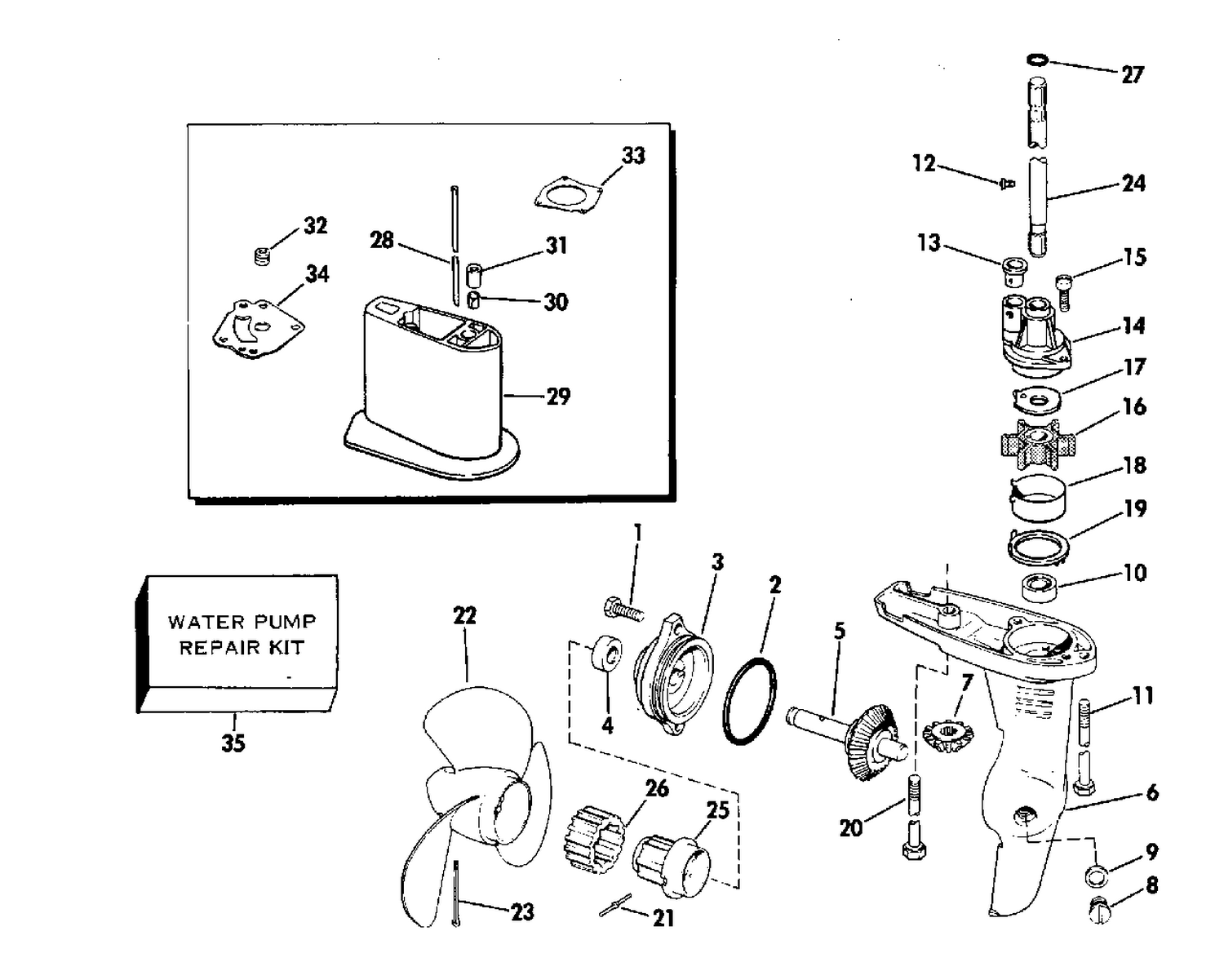

| Ref | Part Number | Description |
|---|
| 1 |
0300646 |
VIS, ancrage |
| 3 |
0383341 |
EARCASE HEAD AND BUSHING ASSEMBLY |
| 5 |
0385236 |
PROP SHAFT AND GEAR ASSY |
| 6 |
0389066 |
GEARCASE & BUSH. ASSY. |
| 7 |
0313608 |
PINION, Driveshaft |
| 11 |
0303398 |
VIS, support This part replaces 0302030. |
| 11 |
0315221 |
SCREW, G case mtg, long |
| 12 |
0321130 |
DRIVE PIN, Impeller |
| 14 |
BODY, |
Water pump |
| 16 |
0387361 |
IMPELLER & PIN ASSY |
| 17 |
PLATE, |
Water pump |
| 18 |
CUP, |
Impeller body |
| 19 |
SPACER, |
Water pump |
| 20 |
0313332 |
SCERW, Adj. bracket |
| 21 |
0333513 |
DRIVE IN, Propeller This part replaces 0316558. |
| 22 |
0318487 |
PROPELLER |
| 23 |
0313693 |
COTTER PIN |
| 24 |
0324919 |
DRIVESHAFT, Std |
| 24 |
0324921 |
DRIVESHAFT, Long |
| 25 |
0391598 |
CLUTCH HUB, Propeller This part replaces 0317466. |
| 26 |
0310331 |
RING, Clutch |
| 28 |
0323646 |
SCREW, Cover to exh. hsg. |
| 32 |
0323286 |
GROMMET, Water tube |
| 33 |
0315338 |
GASKET, Exh housing |
| 34 |
0323936 |
GASKET, Housing to cover |
| 0389038 |
0389038 |
GEARCASE ASSY, Complete |
| 0389952 |
0389952 |
BRUSH KIT |
